Specifications
1.Accept small MOQ order2.Promotion best price
3.With CE,CCC,BS certificate
4.Guaranteed Quality
5.15-20 days delivery

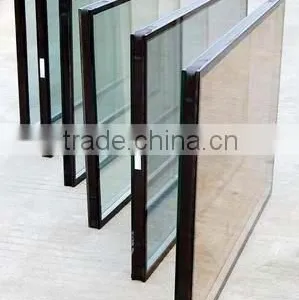

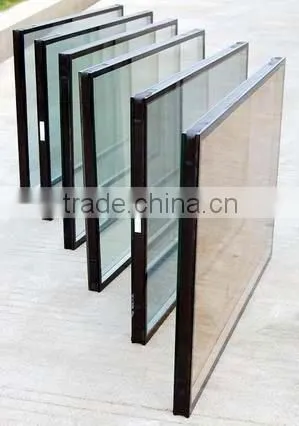

Insulated Glass/Double glazing glass
1. Colors: dark green, F-green, sapphire blue, ford blue, ocean blue,bronze, dark gray, classical grey, and golden;Customization available
2.Thickness:3-12mm, Customization available.
Product |
Insulated Glass |
Serial No. |
IG-01 |
Other Names |
|
Specification |
Maximum size 2500mm*3500mm Minimum size: 350mm*350mm Thickness of glass: Various combinations between 3mm to 15mm. Thickness of Aluminum frame: 6A 9A 12A |
Authentication |
CCC (China Compulsory Certification) ; BS EN14179-1:2005/BS6206:1981; CE EN12150-1:2000: GB/T19001-200idtISO9001:2000 |
Construction Use |
Door & Windows, Curtain Wall, Showcase, Skylight, Ceiling etc. |
Color |
Clear, Ultra Clear, Various Green, Blue, Gray, Brown. |
MOQ |
20’ FCL |
Delivery Time |
About 15-20days |
Payment |
By T/T |
Packing |
Seaworthy plywood case lined with plastic film and outer packing consolidated by iron strap.. |
Others |
|
Our Machinery :
1. Numerical Control Cutting Machine:
Max:8000mmX3000mm
Min:30mmX30mm
Thickness: 3-25mm
2. Three Tempered glass Machinery , two for flat tempered, one for curved tempered.
Flat tempered:
Max:8000mm X 2440mm
Min:300mmX300mm
Thickness:3-25mm
Curved Tempered:
Min curved radius:450mm
Max arc of length:2400mm
Min are of length:300mm
Max height:3660mm
Min height:300mm
3.Italian Bottero Processing Division:
Max:3210mmx1560mm
Min:Circle with diameter 50mm
4. Bevel Edge Machine:
Max:2500X5000mm
Min:80mmX80mm
5.Irregular Edge Machine:
Max: A circle which diameter is 2440mm
Min:80mmx80mm
6. Autoclave for Laminated Glass
Max:2400mmX6000mm
Min:300mmX300mm
Thickness of the glass:3-15mm
Thickness of the PVB:0.38mm/Multiple of 0.38mm
7. Tempered Glass Homogenizing Furnace:
Inside size:5460x1960x3000mm
Max size of glass:2500x5100mm
Thickness of glass:3-19mm
8. Insulated glass processing line (2 lines)
Max:2500mmX3500mm
Min:350mmX350mm
Thickness:3-15mm
Aluminum Spacer:6A 9A 12A
Others:
Nissan 4S Shop Zhu Hai,Guangcong,
