Specifications
1.double& multi- layers2.With CE,CCC,BS certificate
3.anti-dew,heat-resistence,reduce noise
4.over 6 years experience
Insulated Glass/Double glazing glass
your best choice

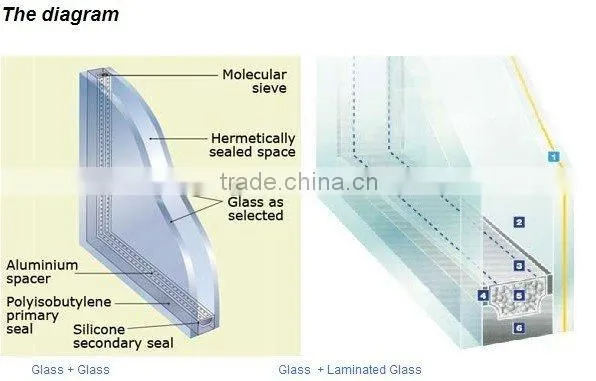

Insulated glass is a kind of hollowed glass made of two or more pieces of glass sheets sperated by aluminiun frame that filled with molecular sieve (drying agent ) .The frame is stuck and sealed by butyl glue on the glass surfaces and thiokol or silion structural slealant all outside edges.Filling gas inside the glass cavity can strenghen its aound insulation property efficiently.
Details
Product |
Insulated Glass |
Serial No. |
IGU-01 |
Other Names |
Laminated insulated glass, Tempered insulated glass.Coated insulated glass. Low-e insulated glass.Color glazed insulated glass |
Specification |
Maximum size 2500mm*3500mm Minimum size: 350mm*350mm Thickness of glass: Various thickness between 3mm to 15mm. Thickness of Aluminum frame: 6A 9A 12A |
Authentication |
CCC (China Compulsory Certification) ; BS EN14179-1:2005/BS6206:1981; CE EN12150-1:2000: GB/T19001-200idtISO9001:2000 |
Construction Use |
Door & Windows, Curtain Wall, Showcase, Skylight, Ceiling ,Canopy, Frontal windows of building,Refrigerator etc. |
Color |
Clear, Ultra Clear, Various Green, Blue, Gray, Brown.. |
MOQ |
one 20"FCL |
Delivery Time |
About 15-20days after receipt of the payment |
Payment |
By T/T |
Packing |
Seaworthy free-fumigation plywood case lined with plastic film and outer packing consolidated by iron strap.. |
Properties
1.Energy saving:Becaude heat transfer coeffient U is lower than single glass (K value of single glass is 5.8 ,while that of Insulated glass is 3) .Energy Consumption will be greatly reduced especially in air conditioning and heating environment.
2.Sound insulation:A window or door with insulated glass can reduce noise level 80 Db into 45Db.Which is the single glass can not perform.
3.Safety:Due to the structure of double glazing , insulated glass can withstand strong wind and impact ,which is much suitable for highrise coastal building, trains and ships .
4.Anti-dew :Because of its moleculer seive (dry agent),insulated glass will not be dew even a big different temperature between indoor and outdoor ,which can provide you a comfortable living environment.
Our equipment
1 Bevel Edge Machine:
Max:2500X5000mm
Min:80mmX80mm
2. Autoclave for Laminated Glass
Max:2400mmX6000mm
Min:300mmX300mm
Thickness of the glass:3-15mm
Thickness of the PVB:0.38mm/Multiple of 0.38mm
3. Tempered Glass Homogenizing Furnace:
Inside size:5460x1960x3000mm
Max size of glass:2500x5100mm
Thickness of glass:3-19mm
4. Insulated glass processing line (2 lines)
Max:2500mmX3500mm
Min:350mmX350mm
Thickness:3-15mm
Aluminum Spacer:6A 9A 12A
Our sample project
Nissan 4S Shop Zhu Hai,Guangcong,
Insulated glass regular combination and approximate container loading capacity
| Container | 1*20GP | 1*40gp | 1*40GP | |
| Loading capacity | 17.5T | 22.5T | 22.5T | |
| Specification | kG/M2 | Square meter | Square meter | Square meter |
| 4+6A+4 | ≈20 | 825 | 1075 | 1075 |
| 4+9A+4 | ≈20 | 825 | 1075 | 1075 |
| 5+6A+5 | ≈25 | 660 | 860 | 860 |
| 5+9A+5 | ≈25 | 660 | 860 | 860 |
| 6+6A+6 | ≈30 | 550 | 717 | 717 |
| 6+9A+6 | ≈30 | 550 | 717 | 717 |
| 6+12A+6 | ≈30 | 550 | 717 | 717 |
| 8+6A+8 | ≈40 | 413 | 538 | 538 |
| 8+9A+8 | ≈40 | 413 | 538 | 538 |
| 8+12A+8 | ≈40 | 413 | 538 | 538 |
| 10+6A+10 | ≈50 | 330 | 430 | 430 |
| 10+9A+10 | ≈50 | 330 | 430 | 430 |
| 10+12A+10 | ≈50 | 330 | 430 | 430 |
| Note | All the data above is just for your reference | |||
