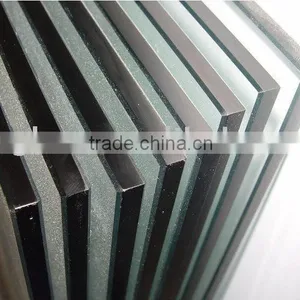

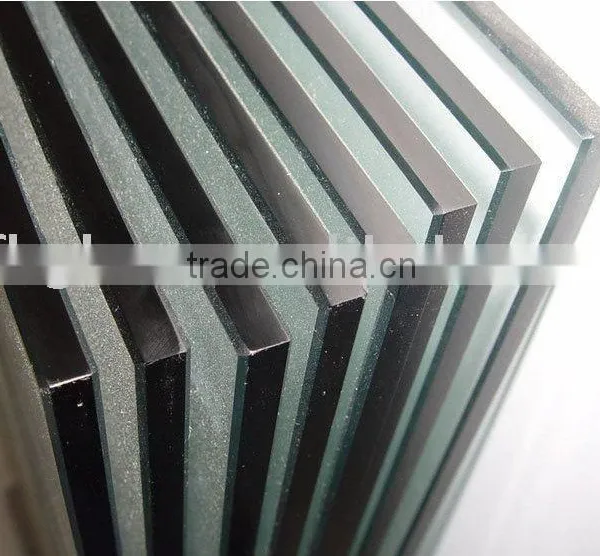

Help CenterTG-01 Tempered Glass for Building
Related Products
Specifications
1.tempered glass factory2.Wit BS, CCC authentication.
3.15-20days delivery time.
4.Low price and take good care of order
Tempered Glass Feature:
1) Tempered glass is strong, has enhanced thermal resistance, and breaks into small cuboids fragments rather than irregular shards of glass and therefore is less likely to cause injury..
2) Application: Tempered glass is used where strength, thermal resistance and safety are important considerations. Tempered glass is also used in buildings for unframed assemblies (such as frameless doors), structurally-loaded applications, household applications, like furniture glass, and any other application that would become dangerous in the event of a human impact. Some forms of tempered glass are used for cooking and baking.
3) There are two different production lines of curved tempered glass in our company. We can accept order as your request. Just please do not hesitate to contact us.
4) Specification: a. Radius: min.1000mm; Arc of length: max 2400mm Height: max. 3660mm b. Radius: max. 450mm; Arc of length: max. 1000mm, min. 300mm Height: max. 2000mm, min. 300mm
You will see the processing quality..
Our Machinery :
1. Numerical Control Cutting Machine:
Max:8000mmX3000mm
Min:30mmX30mm
Thickness: 3-25mm
2. Three Tempered glass Machinery , two for flat tempered, one for curved tempered.
Flat tempered:
Max:8000mm X 2440mm
Min:300mmX300mm
Thickness:3-25mm
Curved Tempered:
Min curved radius:450mm
Max arc of length:2400mm
Min are of length:300mm
Max height:3660mm
Min height:300mm
3.Italian Bottero Processing Division:
Max:3210mmx1560mm
Min:Circle with diameter 50mm
4. Bevel Edge Machine:
Max:2500X5000mm
Min:80mmX80mm
5.Irregular Edge Machine:
Max: A circle which diameter is 2440mm
Min:80mmx80mm
6. Autoclave for Laminated Glass
Max:2400mmX6000mm
Min:300mmX300mm
Thickness of the glass:3-15mm
Thickness of the PVB:0.38mm/Multiple of 0.38mm
7. Tempered Glass Homogenizing Furnace:
Inside size:5460x1960x3000mm
Max size of glass:2500x5100mm
Thickness of glass:3-19mm
8. Insulated glass processing line (2 lines)
Max:2500mmX3500mm
Min:350mmX350mm
Thickness:3-15mm
Aluminum Spacer:6A 9A 12A
Our sample project -- 2010 Guangzhou Asian Games Project:
Guangzhou Tower (Model) Plaza
Others:
Nissan 4S Shop Zhu Hai,Guangdong,
