Specifications
tempered glass1.manufacturer
2.various combinations as client's request
3.with CCC,CE,BS
Tempered glass is also called toughened glass.Tempered glass has been processed intense heating and rapid cooling in a controlled process,
Tempered glass will not break into sharp shards,but will instead break into small pieeces or fragments.These fragments of tempered glass also called cuboids,because of their shape,and will not cut or cause harm as easily as regular glass.
Most Common Users of Tempered Glass
Tempered glass is used when thermal resistant,strength and safety are the primary considerations.Tempered glass is most commonly found in the side and rear window of automobiles.

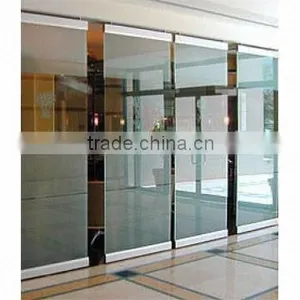

Tempered glass is also widely used in building,for frameless glass doors,slider doors or any application where human contact and safety are considerations.Cell phones sometimes have tempered glass in their construction,because of its durability and scratch resistant quality.
Tempered glass is also used for cooking and baking utensils.
1.Tempered Glass:
Product |
Tempered Glass |
Serial No. |
TG-01 |
Other Names |
Toughed Glass |
Specification |
Flat Tempered Glass Max size 8000mm*2440mm Min size 300mm*100mm Curved Tempered Glass Min curved radius 450mm Arc of length: Max 2400mm Min300mm Height: Max 3660mm Min300mm |
Authentication |
CCC (China Compulsory Certification) ;BS EN14179-1:2005/BS6206:1981; CE EN12150-1:2000: GB/T19001-200idtISO9001:2000 |
Construction Use |
Glass Door, Curtain Wall Partition, Elevator, Showcase |
Household Use |
Sanitary glass, Cabinet, Furniture glass. |
Color |
Clear, Ultra Clear, Various Green, Blue, Gray, Brown. |
MOQ |
20’ FCL |
Delivery Time |
About 15-20days |
Payment |
By T/T |
Packing |
Seaworthy plywood case lined with plastic film and outer packing consolidated by iron strap. |
Others |
|
2. Tempered Glass (Regular thickness& approximate container loading capacity)
|
Container |
1X20GP |
1X40GP |
1X40HQ |
|
Loading capacity |
17.5T |
22.5T |
22.5T |
Thickness |
Kg/m² |
Square meter |
Square meter |
Square meter |
3mm |
7.5 |
2240 |
2840 |
2840 |
4mm |
10 |
1680 |
2130 |
2130 |
5mm |
12.5 |
1344 |
1704 |
1704 |
6mm |
15 |
1120 |
1420 |
1420 |
8mm |
20 |
840 |
1065 |
1065 |
10mm |
25 |
672 |
852 |
852 |
12mm |
30 |
560 |
710 |
710 |
15mm |
37.5 |
448 |
568 |
568 |
19mm |
47.5 |
354 |
448 |
448 |
Note |
All the above data is just for your reference |
|||
