Foam tape coating mchine; sponge coating machine, double sided tape coating machine
1.Fuction
1.PLC control and interface operation.
2.Multi unwind and rewind shafts, multi-layer laminating and stripping the base film.
3.The machine is stable with average glue coating and energy saving.
4.Automatic unloading, rewinding and film receiving without stopping the machine.
5.Operation is simple, unwind & rewind by motor control.
6.Auto sectionalized tension control and auto multi-point EPC system.
7. hot air heating is easy to controll the temperature and economical.
Technical parameters:
Model |
HFT-500 |
HFT-1000 |
HFT-1300 |
HFTT-1600 |
Valid Width |
500 mm |
1000 mm |
1300mm |
1600mm |
Mechanical Speed |
5-50m/min |
5-100 m/min |
5-100 m/min |
5-10 m/min |
Coating Average Degree |
±0.015 mm |
|||
Rewinding Edge Smooth |
±3 mm |
|||
Total Mechanical Power |
20-65 kw |
20-90kw |
30-100 kw |
40-100 kw |
Oven Length |
Design upon the request of the customer |
|||
Heating |
hot air(opt: steam heating. oil heating, UV heating) |
|||
Power Supply / Voltage |
380V 50HZ |
|||
3. 3-D View of main parts
4.What can we offer ?
Whole production line for making adhesive paper and tape, from coating machine, slitting
machine, cutting machine to printing machine. Turn on key base offer.
5. Why choose Hongfat?
The best choice for turn on key offer.
5.1Hongfat can really help you to set up the coating factory from zero, no matter
machine production, installing, training for operator, maintenance, raw
material supplier identify and business convoy.
5.2 He can lend you English-speaking operator.
5.3 Some machine is 3 years’ guarantee.
5.4 English-speaking engineers have the experiences of serving more
than 20 countries.
They are many company which is much bigger than Hongfat, they are
many company who can make good machine as Hongfat. Especially,
when we talk about machine, we like to say German machine is good.
While after they get your money, few of them can really be patience
to set up your business from Zero. Especially when your request seems
out of their duty,Especially the job is beyond the duty of machine seller.
If you have good experience already and just want good machines. Hongfat
is one of your choice. If you want to set up the coating factory from
Zero, Hongfat is your only choice.
6.Machine guarantee?
2 years

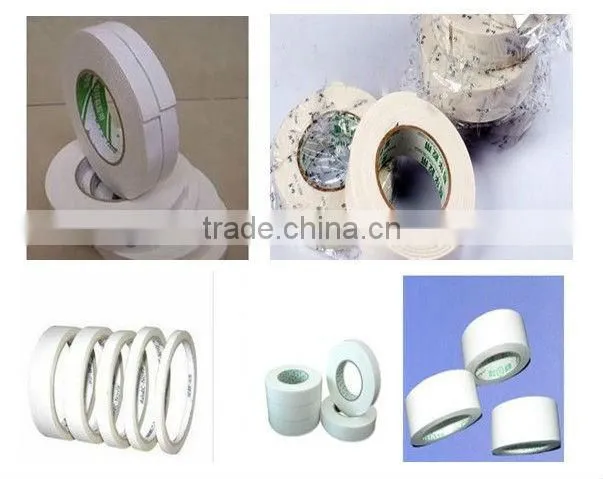

7.Sample produced by the machine
8.Factory view and export loading
9.Fair in overseas
