Hot Sell Electric Car Spare Part-PMSM Motor, 20kw
US$ 800 - 900
MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Yinghao
Model Number:
ZZDC-
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Top Quality Electric Car Spare Part-PMSM Motor 7.5kwUS$ 680 - 800MOQ: 10 Sets -
Electric Car Spare Part-powerful PMSM MotorNegotiableMOQ: 10 Sets
-
1Ton Scissor Lift Jack for Mini CarNegotiableMOQ: 10 Sets
-
Electric Car Spare Part-motor ControllerNegotiableMOQ: 2 Sets
-
Car Spare Part-rear Axle for Mini CarNegotiableMOQ: 10 Sets
Place of Origin
Shandong, China
Brand Name
Yinghao
Model Number
ZZDC-
Specifications
hot sell electric car spare part-PMSM motor, 20kwVoltage:300v
Magnetic material: Sintered Nd Fe B
Output method: Spline
hot sell electric car spare part-PMSM motor, 20kw

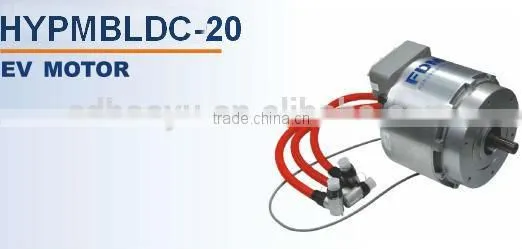

| Model | HYPMBLDC-20 |
| Type | Permanent magnet synchronous brushless DC motor |
| Rated power | 20KW |
| Peak power | 40KW |
| Magnetic material | Sintered Nd Fe B |
| Output method | Spline |
| Matching vehicle | High-Speed Passenger car or cargo vehicle |
| Rated voltage | 300(V) |
| Rated current | 71(A) |
| Peak current | 350(A) |
| Peak speed | 7000(rpm) |
| Rated speed | 3370(rpm) |
| Rated torque | 180(N.m) |
| Cooling method | Water cooling |
| Temperature sensor | NTC Thermal resistor |
| Position sensor | Resolver |
| Insulation level | H |
| Work environmental temperature | -40°C~65°C |
| The effective material Power density (kw/kg) | 2.4 |
Features:
Heavy duty commutator construction
Special purpose designs for a wide range of applications
Robust construction for long and reliable service life
Wide range of speed regulation with constant torque output
High efficiency designs for maximum run time
High efficiency motor
Fully impregnated frame and field
