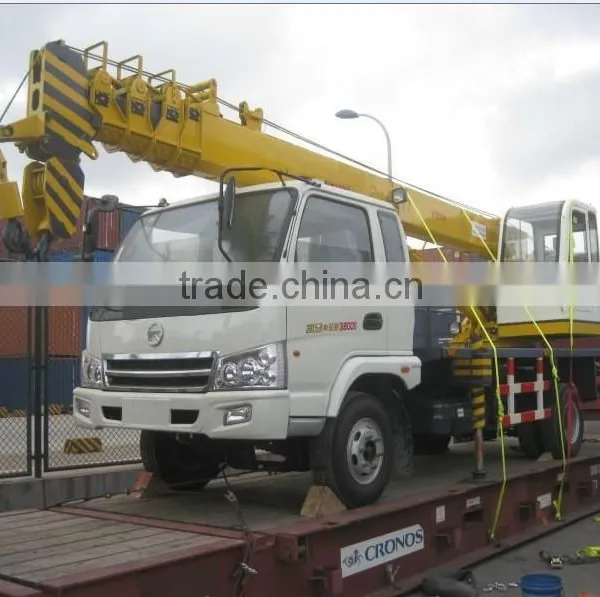

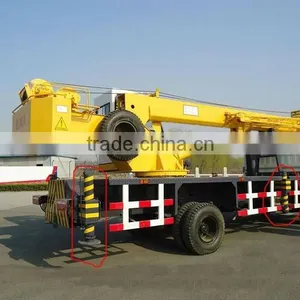

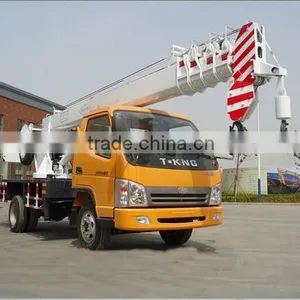

6Ton/8Ton/10Ton/12Ton Truck Crane,mobile Crane,truck Mounted Crane,crane Mounted on Truck
US$ 23,700 - 38,950
MOQ: 4 Units
Key Specifications
Get Latest Price
Condition:
New
Application:
multi purpose
Rated Loading Capacity:
12Ton
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plastic Injection Machine,Injection Molding Machine,120Ton/1200KN Clamping ForceUS$ 26,500 - 30,000MOQ: 1 Unit -
6Ton/8Ton/10Ton/12Ton 10 Ton Truck Mounted Crane With Knuckle Boom,telescoping Boom Mobile Crane,truck CraneUS$ 23,700 - 55,000MOQ: 4 Units
-
Railroad Clip Production Line,one-step Rolled to Shape,fully Automatic Rolling Machine With PatenUS$ 250,000 - 300,000MOQ: 1 Set
-
HERACLES H928 Wheel LoaderUS$ 13,000 - 14,000MOQ: 1 Piece
-
HERACLES Brand Wheel LoaderUS$ 13,000 - 14,000MOQ: 1 Piece
Condition
New
Application
multi purpose
Rated Loading Capacity
12Ton
Rated Lifting Moment
352kNm.
Max. Lifting Load
12Ton
Max. Lifting Height
22m
Span
22m
Place of Origin
China
Brand Name
OEM
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
6Ton/8Ton/10Ton/12Ton Truck Crane,mobile crane,truck mounted crane,crane mounted on truck6Ton/8Ton/10Ton/12Ton Truck Crane,mobile crane,truck mounted crane,crane mounted on truck
Product Description
6Ton Truck Crane,truck mounted crane,crane mounted on truck
| Performance parameter: | |
| Model | ZB5130JQZP |
| Total mass | 15995kg |
| Overall dimension | 10140*2200*3220mm |
| Rated elevating capacity | 12000kg |
| Rated Lifting torque | 352kNm |
| Max. Lifting Height | 24.1m |
| Main hook single load | 2000kg |
| Main hook single elevating speed | 110m/min |
| Auxiliary hook single load | 1000kg |
| Auxiliary hook single elevating speed | 120m/min |
| Engine model | YZ4DB1-30 |
| Derailleur model | LG5-38 With high and low speed auxiliary box LG5-38 |
| Tires | 8.25-20 with spare tires 8.25-20 |
| Braking form | Breathe brake |
| Steering form | Hydraulic power steering |
| Crane jib structure | Category four hexagon box-type, hydro cylinder telescopic boom |

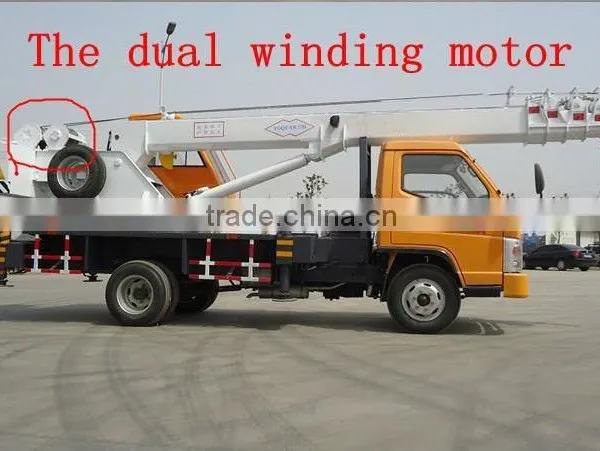

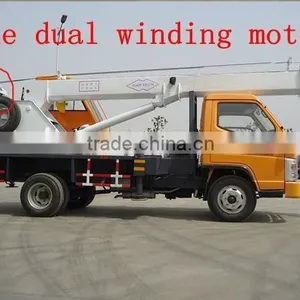

| Main Lifting Mechanism | Category two planet wheel with a brake inside |
| Auxiliary Lifting Mechanism | Category one gear brake motor |
| Swing Bearing | GB Φ1000 Tooth, material 50Mn intermediate frequency |

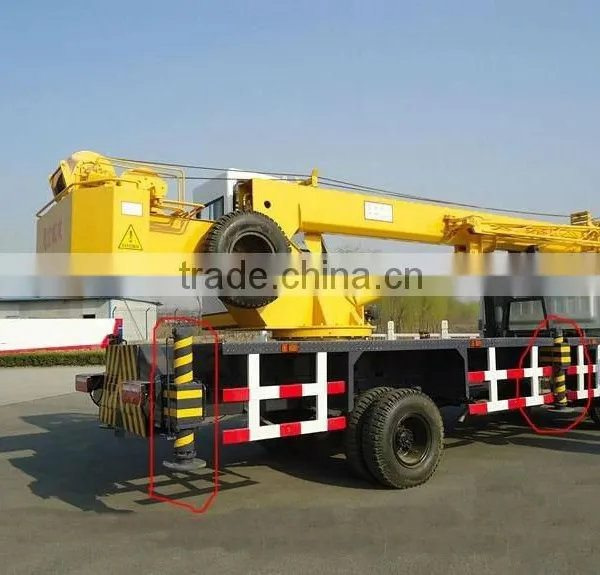

| Vertical hydraulicleg | Double-acting engineering oil cylinder |
| Horizontal hydraulicleg | Double-acting engineering oil cylinder |
| Platform | Anti-skidding and big |
| Protective Screening | Two-way |
| Night light | 3 lamps control |
| Dynamic Motor | GB 15KW-4 pole |

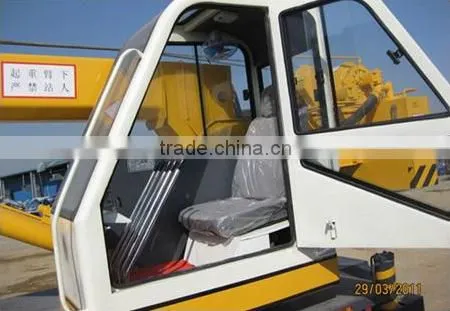

| Crane Cab | Tailor-made |
| The central axially symmetrical | Four oil ways |
| Crane Start | Tailor-made |
| Throttle | Hydraulic |
| Warning Horn | Mono snail |
| Pressure gage and switch | Shockproof component |
| Power Takeoff | Driving indoor operation zip type |
| Hydraulic Oil Tank | Turntable rearmounted, counter weight combined type, special four-layer filters |
| Load displayer/ Lift height limiting stopper | Optional +$500 |
8Ton Truck Crane,truck mounted crane,crane mounted on truck
| Model | ZB5091JQZPF |
| Total mass | 8000kg |
| Overall dimension | 9130x2160x2920mm |
| Rated elevating capacity | 8000kg |
| Max. Lifting Height | 22m |
| Main hook single load | 1350kg |
| Main hook single elevating speed | 50m/min |
| Auxiliary hook single load | 500kg |
| Auxiliary hook single elevating speed | 100m/min |
| Engine model | SD4M75-3U |
| Derailleur model | LG5-25 With high and low speed auxiliary box |
| Tires | 8.25.00-16 with spare tires |
| Braking form | Break air brake |
| Steering form | Hydraulic power steering |
| Crane jib structure | Category five hexagon box-type, hydrocylinder telescopic boom |
| Main Lifting Mechanism | Category two planet wheel with a brake inside |
| Auxiliary Lifting Mechanism | Category one gear brake motor |
| Swing Bearing | GB Φ1000 Tooth, material 50Mn intermediate frequency |
| Vertical hydraulic leg | Double-acting engineering oil cylinder |
| Horizontal hydraulic leg | Double-acting engineering oil cylinder |
| Platform | Anti-skidding and big |
| Protective Screening | Two-way |
| Night light | 3 lamps control |
| Dynamic Motor | GB 11KW-6 pole |
| Crane Cab | Tailor-made |
| The central axially symmetrical | Four oil ways |
| Crane Start | Tailor-made |
| Throttle | Hydraulic |
| Warning Horn | Mono snail |
| Pressure gage and switch | Shockproof component |
| Power Takeoff | Driving indoor operation zip type |
| Hydraulic Oil Tank | Turntable rearmounted, counter weight combined type, characteristic four-layer filters |
| Load displayer/ Lift height limiting stopper | Optional +$500 |
| Within slacklining; ropedancing; ropewalking boom | Optional +$500 |
10Ton Truck Crane,truck mounted crane,crane mounted on truck
| Performance parameter: | |
| Model | ZB5110JQZP |
| Total mass | 9640+500kg |
| Overall dimension | 9730×2300×3080mm |
| Rated elevating capacity | 10000kg |
| Rated Lifting torque | 240kNm |
| Max. Lifting Height | 25.5m |
| Main hook single load | 1500kg |
| Main hook single elevating speed | 50m/min |
| Auxiliary hook single load | 500kg |
| Auxiliary hook single elevating speed | 100m/min |
| Engine model | YANGCHAI 4102(YZ4DA7-30) |
| Derailleur model | LG5-38 With high and low speed auxiliary box |
| Tires | 8.25-16 with spare tires |
| Braking form | Break air brake |
| Steering form | Hydraulic power steering |
| Crane jib structure | Category five hexagon box-type, hydro cylinder telescopic boom |
| Main Lifting Mechanism | Category two planet wheel with a brake inside |
| Auxiliary Lifting Mechanism | Category one gear brake motor |
| Swing Bearing | GB Φ1000 Tooth, material 50Mn intermediate frequency |
| Vertical hydraulicleg | Double-acting engineering oil cylinder |
| Horizontal hydraulicleg | Double-acting engineering oil cylinder |
| Platform | Anti-skidding and big |
| Protective Screening | Two-way |
| Night light | 3 lamps control |
| Dynamic Motor | GB 11KW-4 pole |
| Crane Cab | Tailor-made |
| The central axially symmetrical | Four oil ways |
| Crane Start | Tailor-made |
| Throttle | Hydraulic |
| Warning Horn | Mono snail |
| Pressure gage and switch | Shockproof component |
| Power Takeoff | Driving indoor operation zip type |
| Hydraulic Oil Tank | Turntable rearmounted, counter weight combined type, special four-layer filters |
| Load displayer/ Lift height limiting stopper | Optional +$500 |
12Ton Truck Crane,truck mounted crane,crane mounted on truck
| Performance parameter: | |
| Model | ZB5130JQZP |
| Total mass | 15995kg |
| Overall dimension | 10140*2200*3220mm |
| Rated elevating capacity | 12000kg |
| Rated Lifting torque | 352kNm |
| Max. Lifting Height | 24.1m |
| Main hook single load | 2000kg |
| Main hook single elevating speed | 110m/min |
| Auxiliary hook single load | 1000kg |
| Auxiliary hook single elevating speed | 120m/min |
| Engine model | YZ4DB1-30 |
| Derailleur model | LG5-38 With high and low speed auxiliary box LG5-38 |
| Tires | 8.25-20 with spare tires 8.25-20 |
| Braking form | Breathe brake |
| Steering form | Hydraulic power steering |
| Crane jib structure | Category four hexagon box-type, hydro cylinder telescopic boom |
| Main Lifting Mechanism | Category two planet wheel with a brake inside |
| Auxiliary Lifting Mechanism | Category one gear brake motor |
| Swing Bearing | GB Φ1000 Tooth, material 50Mn intermediate frequency |
| Vertical hydraulicleg | Double-acting engineering oil cylinder |
| Horizontal hydraulicleg | Double-acting engineering oil cylinder |
| Platform | Anti-skidding and big |
| Protective Screening | Two-way |
| Night light | 3 lamps control |
| Dynamic Motor | GB 15KW-4 pole |
| Crane Cab | Tailor-made |
| The central axially symmetrical | Four oil ways |
| Crane Start | Tailor-made |
| Throttle | Hydraulic |
| Warning Horn | Mono snail |
| Pressure gage and switch | Shockproof component |
| Power Takeoff | Driving indoor operation zip type |
| Hydraulic Oil Tank | Turntable rearmounted, counter weight combined type, special four-layer filters |
| Load displayer/ Lift height limiting stopper | Optional +$500 |

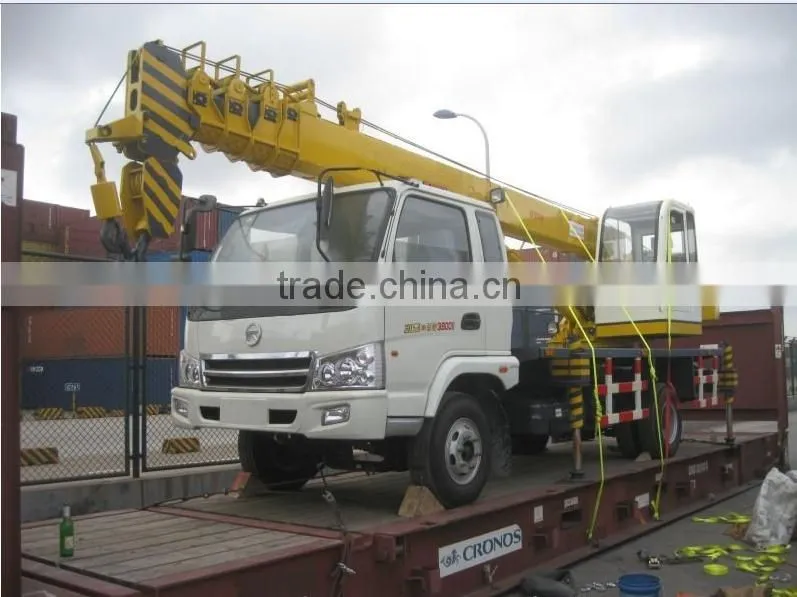

Packaging & Shipping
