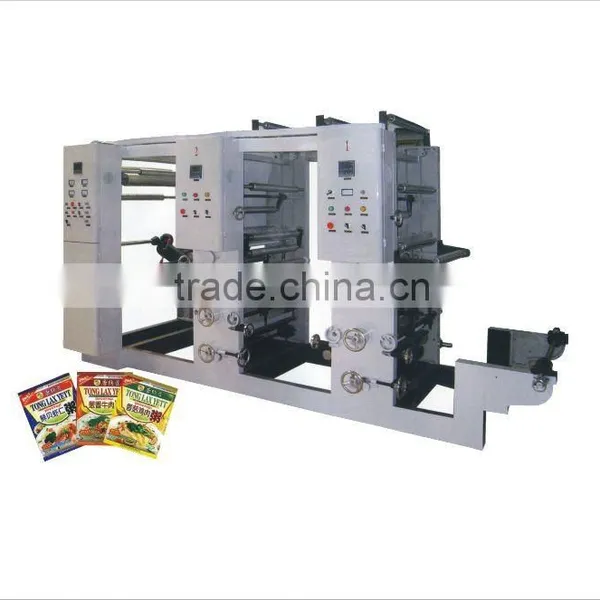

2015 new model nice price double color ordinary Gravure Printing Machine
Usage: It is suitable for BOPP, PTE, CPP, PCVD, al-plated film, al-tissue and the compound film and paper with the same properties. This machine’s printing speed is 40 meters per minute.
Features:
1, The main transmission device adopts velocity modulation electrical machinery, speed velocity modulation control.
2, Adopt combined type, realize frontage and reverse side one time prints continuously.
3, Material-collecting hauling adopt double moment of force electrical machinery, material-feeding be controlled by the magnetic powder machine. Material-collecting adopt turns over the double location, realize the engine won’t be off, connecting change the material.
4, Drying system adopt sealed drying oven, the temperature be controlled warm automatically, and it has the same future as the meter counter.
5, The pressure of blowing ink broadsword Parallel highly. It can adjust crosswise move repeatedly and willfully.
6, Rubber-plated roller pressure-rise adopt manually. Relative version adopt differential motion type of drive, printing plate be adjust longitudinal 360 degrees willful. Crosswise adjustment quantity is 30mm.
The specification is based on 2 colors
|
(Model) (Technical Parameters) |
AY600 |
AY800 |
AY1100 |
Web Width |
600mm |
800mm |
1100mm |
Printing speed |
50m/min |
50m/min |
50m/min |
Print Cyl. Dia. |
Φ70-300mm |
Φ70-300mm |
Φ70-300mm |
Web diameter |
Φ600mm |
Φ600mm |
Φ600mm |
Print Cyl. Longitudinal adjustable |
30mm |
30mm |
30mm |
Print Cyl. Vertical adjustable (continuous) |
360° |
360° |
360° |
Registering accuracy |
±0.2mm |
±0.2mm |
±0.2mm |
Total power |
13kw |
17kw |
19kw |
Weight |
1800kg |
2000kg |
2400kg |
Overall dimensions (L×W×H) |
3200×1600×1900 mm |
3200×1600×1900 mm |
3200×1600×1900 mm |
Welcome to visit our website: for checking more machines.
