Home > Tools & Hardware > Hydraulic Parts > Hydraulic Cylinder > Forklift Parts 906T Curtis Battery Discharger for Electric Forklift

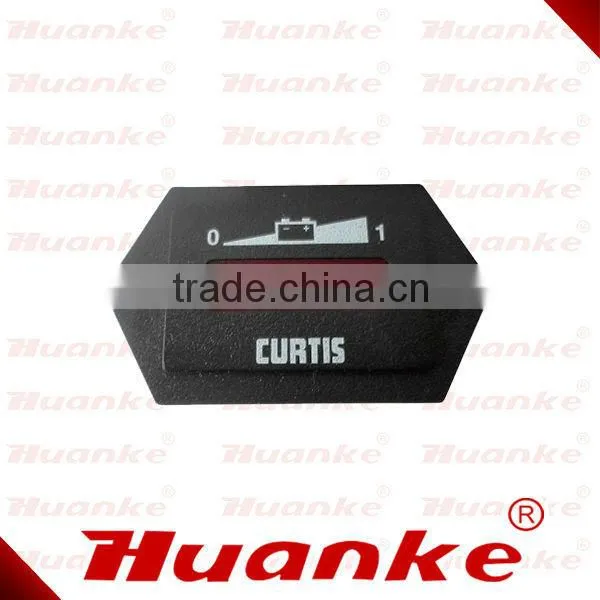

Forklift Parts 906T Curtis Battery Discharger for Electric Forklift

Name: Forklift Parts 906T Curtis Battery Discharger for Electric Forklift
Brand: huanke
SKU: 103071847

Forklift Parts 906T Curtis Battery Discharger for Electric Forklift thumbnail-1

Forklift Parts 906T Curtis Battery Discharger for Electric Forklift photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Anhui, China

Brand Name:

huanke

Model Number:

906T24BNBAO

Contact Supplier Request Quote Chat Now

Hefei Huanke Electric Vehicle Parts Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Hefei

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Anhui, China

Brand Name huanke

Model Number 906T24BNBAO

1. Product Description

Description
Model 906 is an inexpensive,one piece,easy to install battery fuel gauge.It is completely solid state and provides a reliable,accurate,and easy to read display of battery state-of-charge.Model 906 is available in six panel mount packages and a printed circuit board mounted module for custom dash panel applicatoins

Application
This battery fuel gauge features Curtis patented technology and is ideal for golf cars,commercial cleaning equipment,mobility aids,electric bicycles,electric marine motors,medical devices,and similar equipment.

Features
All principal circuits are integrated in a single chip for long-life reliability.
A 10-bar LED displays the state-of-charge successively,bar by bar,from full to empty.

At 70% depth of discharge,a flashing LED signals an "energy reserve"alert

At 80%,alternately flashing LEDs provides an "empty" status warning.

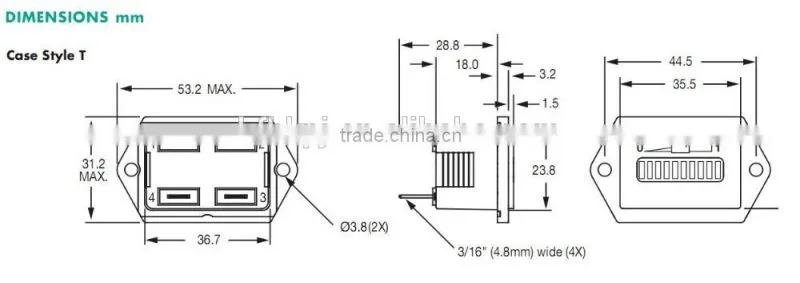

Model 906 is compact and easily installed in panel cut-out as small as 36.8X24.1 mm,with as little as 35 mm behind panel clearance needed,see dimensions of various case styles.

Recognizes improperly charged battery.

Keyswitch activated LED display (state-of-charge is monitored as long as 906 is connected to battery).

Memory allows gauge to recall state-of-charge whenever battery is disconnected.

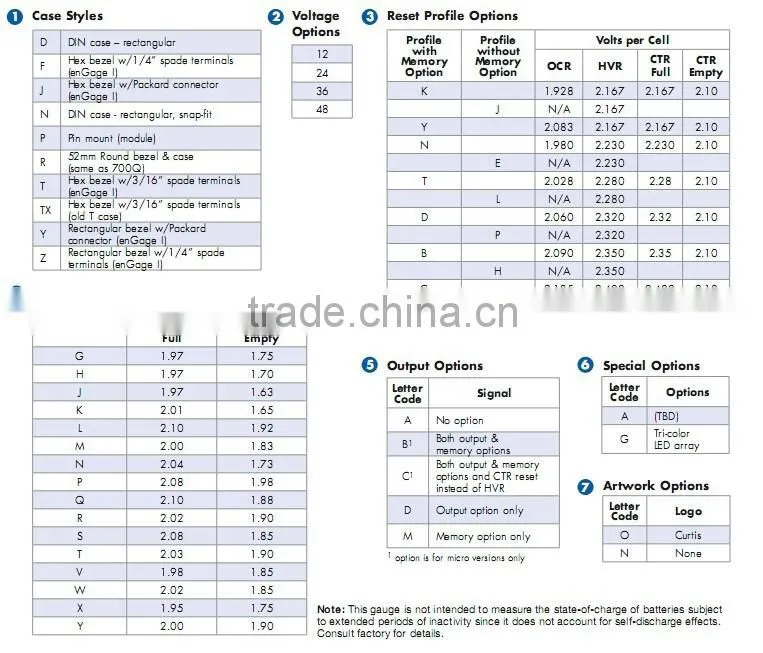

Three possible reset methods:
1. Open Circuit Reset (OCR):Upon reconnection of a battery the gauge will reset if it measures 2.09 volts/cell or higher (example "B" profile)(for units with memory option).

2. High Voltage Reset(HVR):Gauge must measure>2.35 volts per cell for 6 continuous minutes during charging (example "B" profile).

3. Charge Tracking Reset(CTR): Display tracks charge level during oppotunity charging(requres gauge to be connected to battery when charging).

Option
The output Signal option causes the voltage on pin 3 to drop from 5 to 0 volts at 80% discharge. It can be used to signal another component or to allow for the disabling of a specified vehicle fundtion,insuring against abusive deep discharge conditions. The Output Signal can also be used to drive the Curtis 1178 Relay Module.
Special models and custom panels are available.

Specifications
System Voltage:12V,24V,36V,48V
Operating voltage:+/-25% of nominal voltage
Operating temperature:-40℃ to +85℃
Storage temperature:-50℃ to 90℃
Shock & Vibration:Meets SAE J 1378
