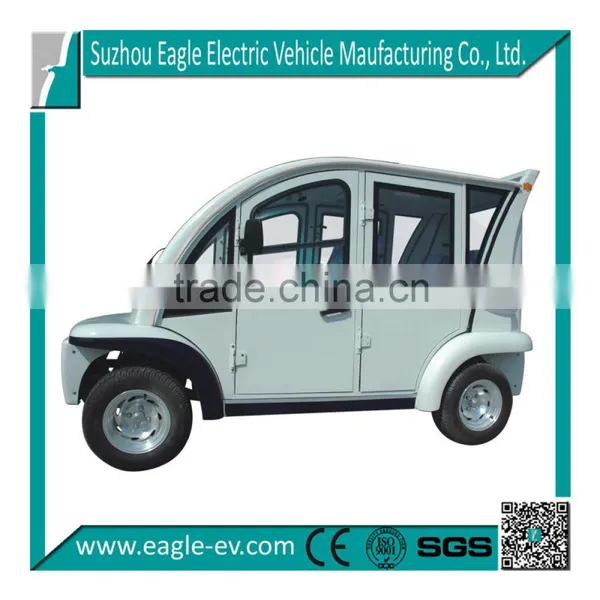

Smart 4 Seat Electric Car EG6043KF

Name: Smart 4 Seat Electric Car EG6043KF
Brand: Eagle
SKU: 103097951

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Eagle

Model Number:

EG6043KF

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Eagle

Model Number EG6043KF

smart 4 seat electric car EG6043KF

Model	EG6043KF	EG6043KF01	EG6043KF04	EG6043KF06
System	48V/4KW Series	48V/4KW Sepex	48V/5.3KW Sepex	48V/5KW AC System
Key Components
Battery	8xT105(185Ah@5hr rate)	8xT105(185Ah@5hr rate)	8xT105(185Ah@5hr rate)	8xT105(185Ah@5hr rate)
Motor	3.8KW Chinese motor	3.8KW Chinese motor	5.3KW Chinese Motor	5KW Chinese Motor
Controller	Curtis 1204 (275A@2minutes)	Curtis 1268 (400A@2minutes)	Curtis 1268 (400A@2minutes	Zapi ACE2(400A@2minute)
Performance
Passenger capacity	4	4	4	4
Range (loaded) based on flat road at a speed of 20km/h (km)^*	>50	>50	>50	>65
Max. speed @12.49:1 gear ratio	30	32	32	32
Max. speed @10.25:1 gear ratio	/	40	40	---
Minimum turning radius (m)	4	4	4	4
Max. climbing ability (loaded) @ 12.49:1 gear ratio	20%	20%	20%	20%
Max. climbing ability (loaded) @ 10.25:1 gear ratio	15%	15%	15%	---
Max. movement after brake at speed of 20km/h	≤4m	≤4m	≤4m	≤4m
Max. loading weight	320kgs	320kgs	320kgs	320kgs
Net weight	900kgs	902kgs	902kgs	910kgs
