TC-I-1 Inset Airport Taxiway Light Centerline Light

Name: TC-I-1 Inset Airport Taxiway Light Centerline Light
Brand: Solarisland
SKU: 103112889

US$ 258 - 298 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

Solarisland

Model Number:

TC-I-1 airport taxway light

Taian Topsun Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name Solarisland

Model Number TC-I-1 airport taxway light

Inset airport Taxiway Light Centerline Light

Compliance with Standars

All our airport taxiway light meet the following standars:

ICAO: Annex 14, Volume 1, Aerodrome Design and Operations

FAA: L-850C (AC 150/534-46)

Application/Use

Insert Taxiway Edge

Features

- 8-inch housing substructure.

- Equal-strength structure and advanced aluminum-alloy castiong with high strength and finr machanical properties.

- Chemically trated surface with durabale wear-/corrosion- resistanc.

- High-precision machining to ensure a full range of qualty and accuracy of lights.

- Unique full-sealed waterproof structure.

- Cupped reflector and pressure-/heat-resistant prism wit stable optical performance.

- Cooling structure and anti-vibratin suspension decvice to prolong lamp's life to the maximum.

- Precise location of lamp to ensure easy replacement without re-calibration.

- Leakage tested for all lights before delivery

Parameters

48W/6.6A, Dia 8"

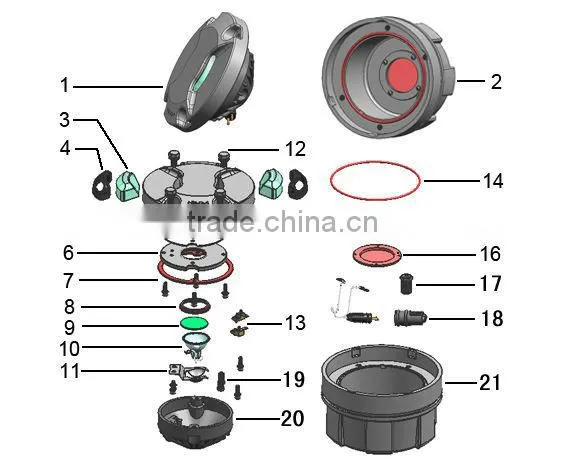

Item NO.	Parts name	Remark
1	Upper cover	Φ205mm
2	Bottom cover	Φ220mm
3	Prism	Hard Glass
4	Prism seal	silicon rubber
5	Prism gasket	tetrafluoroethylene
6	Prism retainer	aluminum alloy
7	Seal ring	silicon rubber Φ137mm
8	Lamp protective ring	silicon rubber Φ56mm
9	Color filter	Optical glass
10	bowl-shaped bromine-tungsten lamp	Germany OSRAM 48W/6.6A
11	Mounting plate	tin bronze
12	Binding screw	stainless steel
13	Terminal block	fiberglass
14	O-Seal ring	silicon rubberΦ166.5mm
15	Bowl-shaped seal ring	silicon rubber Φ88mm
16	Plug	L=250mm,Φ=2.5mm2
