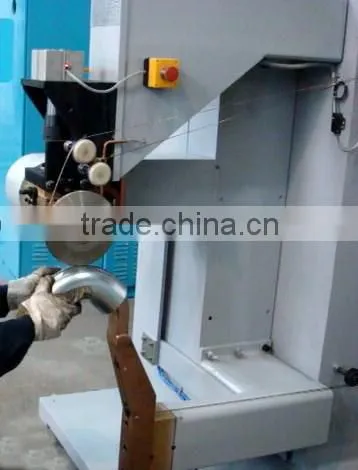

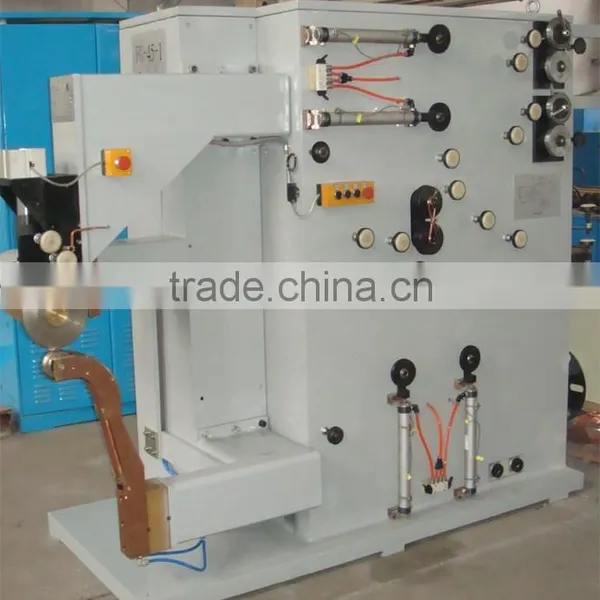

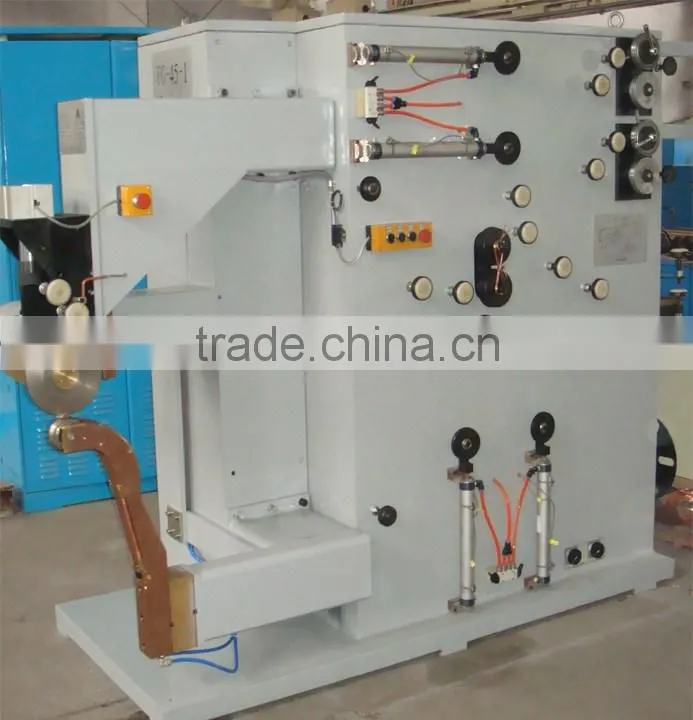

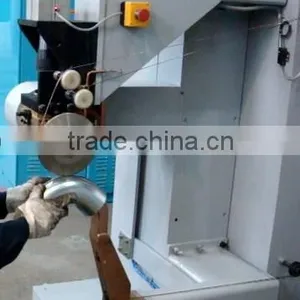

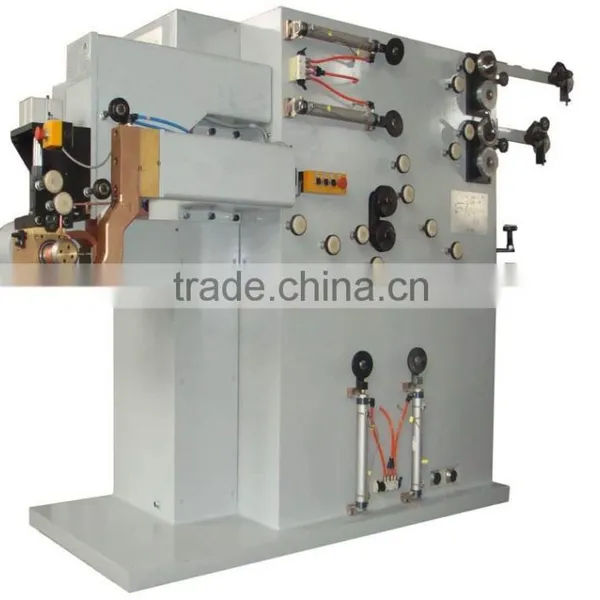

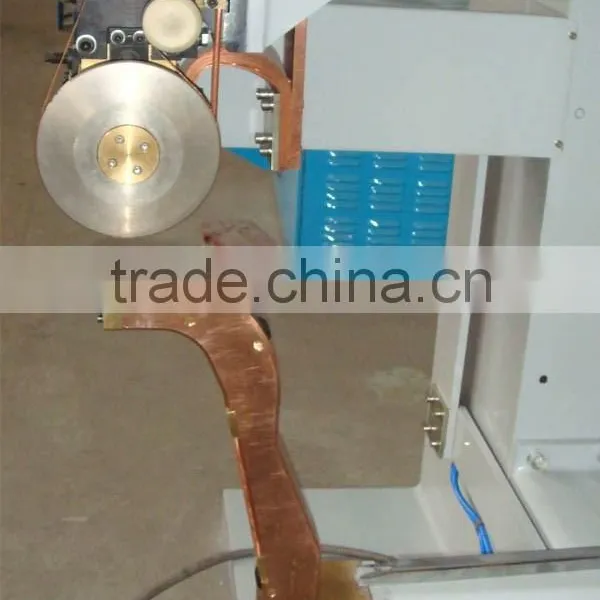

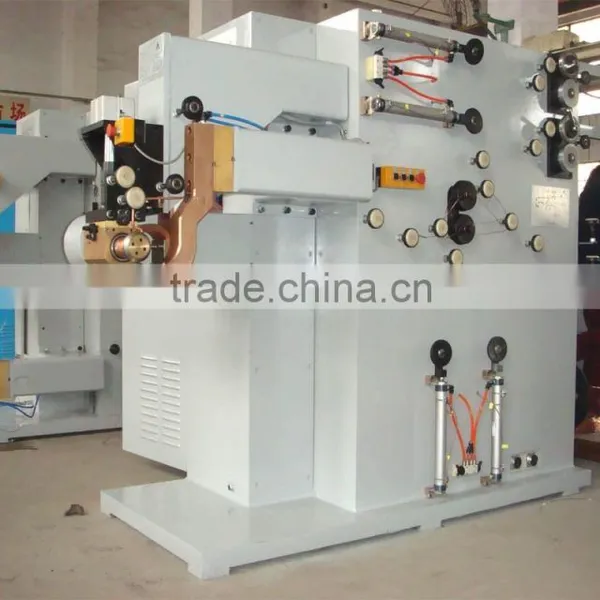

Galvanized sheet aiir duct welding machine - Air Duct Elbow Stitch Welder

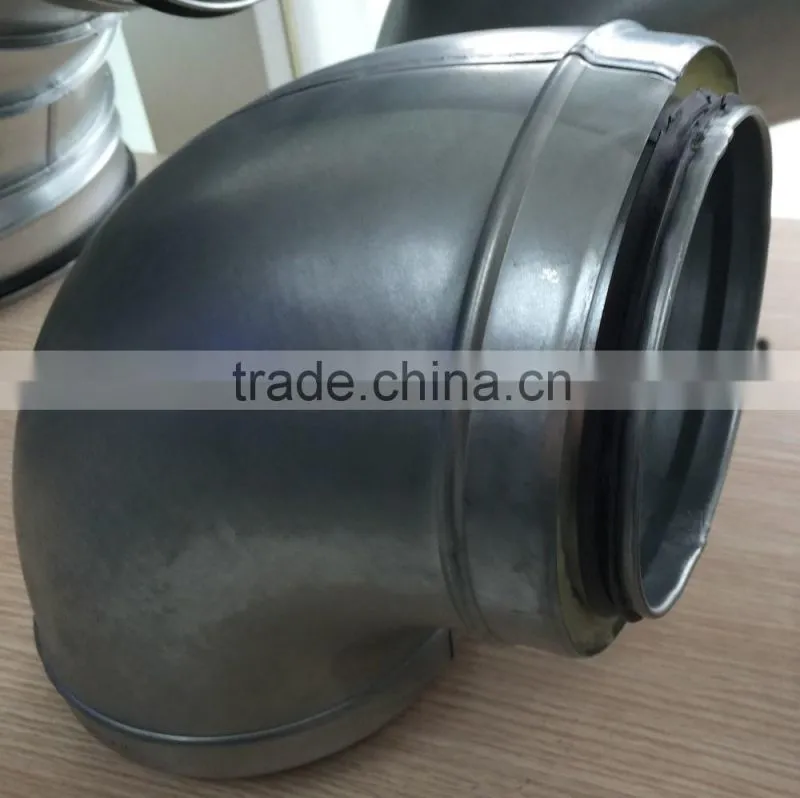

Galvanized sheet air duct welding machine is specilized designed for galvanized elbow external seam welding.
General technical spec. is as following:
Advanced double-wire, double-wheel resistance welding
Accurate welding
Perfect welding quality
Best machine for GI air duct elbow
General technical spec. is as following:
1. Longitudinal stitch welder
Power supply: 3Phase 380V, 50/60Hz
Dia. of working piece: 100-2500mm
Welding angle: 45° 90°
Thickness of working piece: Cold rolling sheet--0.3-0.8mm
GI: 0.3-0.8mm
Stainless steel: 0.3-0.6mm
Welding speed: 3-9m/min.
Welding height: 400mm
Copper wire: 1.8-2.5mm
Cooling water: 0.4MPa 8.5L/min.
Compressed air: 0.8MPa 600l/min.
Welding power: 40KVA
1. Inner arc stitch welder, outer arc stitch welder
Power supply: 3Phase 380V, 50/60Hz
Dia. of working piece: 100-300mm
Welding angle: 45° 90°
Thickness of working piece: Cold rolling sheet--0.3-0.8mm
GI: 0.3-0.8mm
Stainless steel: 0.3-0.6mm
Welding speed: 3-9m/min.
Width of welding: 6mm
Copper wire: 1.8-2.5mm
Cooling water: 0.4MPa 8.5L/min.
Compressed air: 0.8MPa 600l/min.
Welding power: 75KVA DC
Net weight: 2.5T
| Components brand of GI air duct welding machine | |||||||
| 1 | Control cabinet | 1 | Pc | Self-made | |||
| 2 | PLC and accessories | 1 | Set | Mitsubish | |||
| 3 | Color touch screen and accessories | 1 | Set | Mitsubish | |||
| 4 | Frequency converter communication card | 1 | Pc | Mitsubish | |||
| 5 | Motor with different types | 4 | pc | Jiamai, China | |||
| 6 | Universal control components | 1 | batch | Aviation special | |||
| 7 | Omron sensro | 1 | batch | Omron | |||
| 8 | Cable | 1 | batch | People. China | |||
| 9 | Air switch, contactor | 1 | batch | Schneider | |||
| 11 | Phoenix lighting arrester, PLC interface | 1 | batch | Schneider | |||
| 12 | Consumable material | 1 | batch | People, China | |||
| 13 | Welding source | 1 | Set | Self-made | |||
| Welding methods adopts double wire feedking, double wheel. The most advanced reisistance continous welding technology. | |||||||
