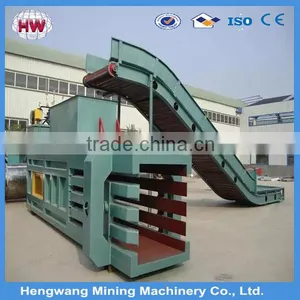

hydraulic baler|Paper baler|Automatic hydraulic baling machine
Product Description
Usage:
Specially used for recycling waste paper, cartons/cardboards trims/scraps etc. which are popular in packaging/corrugation industrial, paper/ printing plants etc.
Machine's Features:
- Powerful cyclone is optional for rapid sucking trims/scraps from the corrugation production line
- Photoelectric switch activates baler when charge box is full
- Unique double-cutting design of cutters improves the cutting efficiency and lengthens the lifespan of the cutters
- Particular anti-slide design of the machine makes nicer bales
- Unique trunnion-mounted frame and ball-end joint design for the main cylinder avoid the torque on the rod, which lengthens the lifespan of the seals
- Equipped with rapid automatic tying system, easy for cleaning and maintaining
- Use differential technique for the hydraulic system, makes shorter cycle time so that improve the working efficiency and save electricity
- Automatic tension system ensures “brick-like” bales on all loose materials.
- Adjustable bales length and bales quantity accumulating function make the operation of the machine more convenient
- Automatically detect and show the errors of the machine which improve the machine inspection efficiency
- International standard electric circuit layout, graphic operation instruction and detailed parts marks makes the operation been more easily understanding and improves the maintenance efficiency
- The press heads are specially processed by planomiller, ensures the precise running of the ram
- Use high quality hydraulic system from Taiwan, ensures the stable running of the machine
- The heavy duty machine body makes sure only flat ground is required by the installation
Technical Specification:
Model |
HW-10 |
HW-20 |
Main Cylinder Size |
Ø125 |
Ø160 |
Main Motor Power |
7.5kw |
15kw |
Cooling System |
air cooler / water cooler |
air cooler / water cooler |
Cycle Time (unload) |
19s |
20s |
Oil Reservoir |
280L |
540L |
Number of Belting |
3lines |
4lines |
Wire Size |
Ø2.4-2.7 |
Ø2.4-2.7 |
Feed Opening Size (L*W) |
625*480mm |
1200*690mm |
Chamber Size (L*W*H) |
900*500*500mm |
1600*720*800mm |
Bale Size (L*W*H, L can be adjustable) |
L*500*500mm |
L*720*800mm |
Bale Density (OCC) |
350-450kgs/m3 |
350-450kgs/m3 |
Throughput (30-60kgs/m3) |
1-1.5tons/h |
1.5-3tons/h |
Machine Weight |
3tons |
7tons |
Machine Overall Dimension |
3600*2500*1650mm |
6000*3200*2500mm |
Feeding Device |
Cyclone / conveyor |
Cyclone / conveyor |

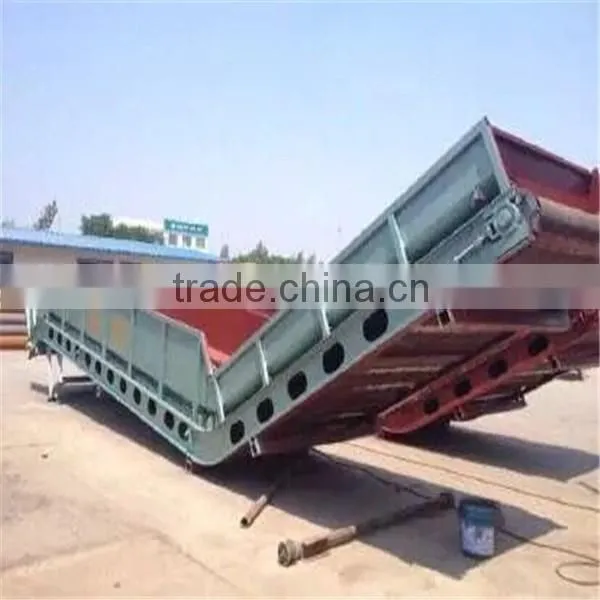

This kind of baler can be equipped with cyclone or conveyor, depending on customer's different requirements!
NOTE: We can also provide the baler with bale's size W750*H850*L adjustable!

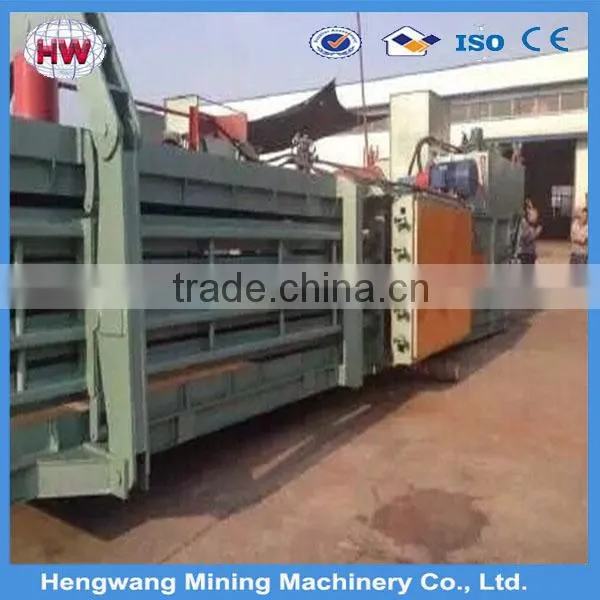

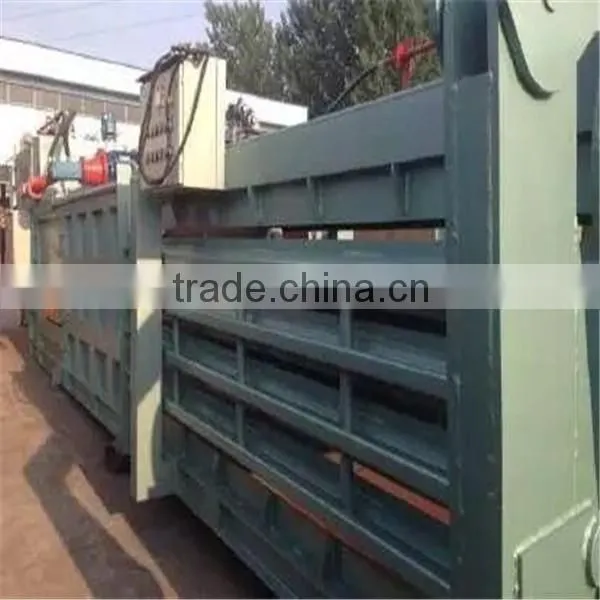

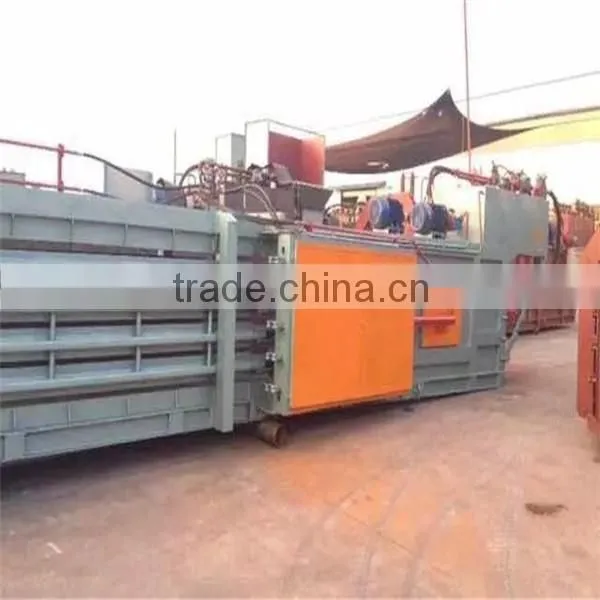

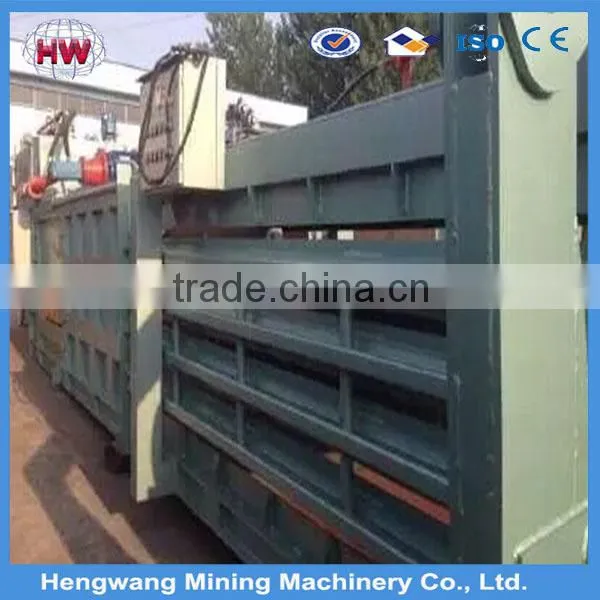

Product Picture
