Help CenterTurret Milling Machine
Related Products

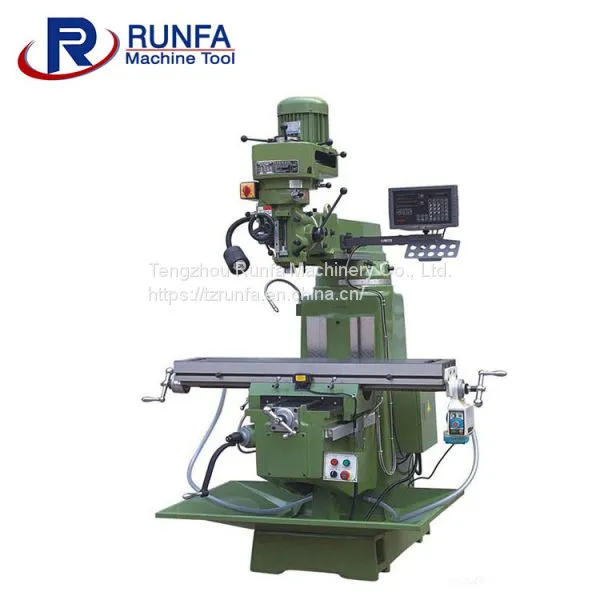

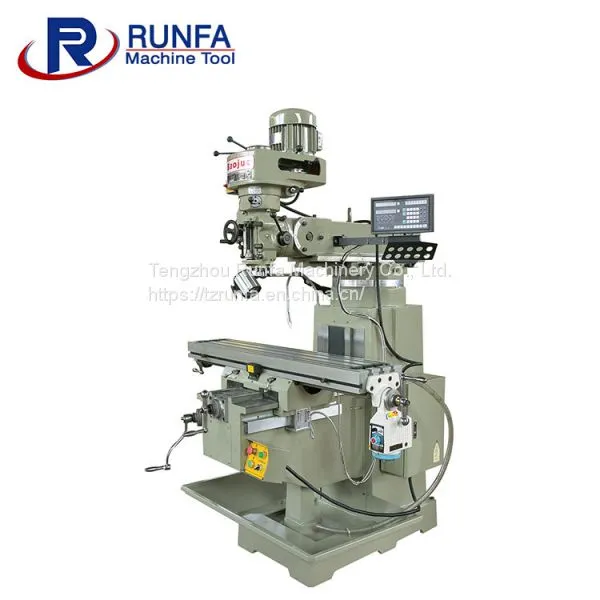

This power feed vertical turret milling 4S/4V machine is widely used for flat maching along with any tilt angle surface,it can work for milling slot,drilling,fraising,boring.The milling head can turn right and light ±90°,it can rotate with high speed and with wide speed range,it can carry out power feed with overload safe protective device.The spindle quill and machine guideway past special treatment,it has perfect appearance and excellent design structure,it is one ideal metal cutting machine.It can also install power feed and DRO depending on customer requirements.
Main specification |
4S/4V/4H |
Spindle taper |
R8 |
Spindle travel |
127mm |
Table size |
1270 x 254 mm |
Table travel(X,Y,Z) |
750 (manual 800)x 400 x 400 mm |
Distance from spindle nose to table surface |
0-460 mm |
Distance from spindle axis to column guideway surface |
170-520 mm |
Spindle speed range |
16steps 66~4540 r.p.m |
Max. Loading weight |
350kg |
Arm rotation |
360° |
Main motor power |
2.2 KW (two speed) |
Coolant pump power |
90 W |
Tilt angle of vertical milling head |
±90°(left and right) ±45°(front and rear) |
Overall dimension |
1600×1700×2250mm |
N.W/G.W |
1450/1560 kg |
