Specifications
Full integrate industry chain ensure our production more cost-effective and price more competitive.Company Profile

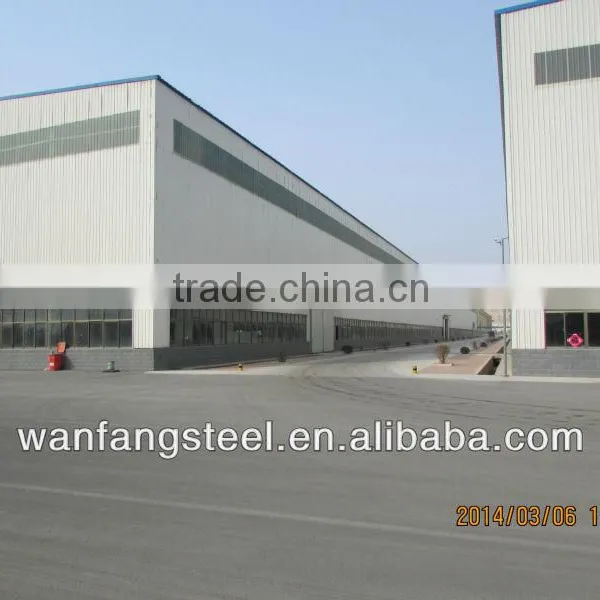

Shandong Wanfang Steel Co., Ltd was established in 2011, which is located in the beautiful coastal city of Rizhao, Shandong Province, China. We own strong market and logistics advantages by neighboring Rizhao port, Lianyungang Port and Qingdao port as well as convenient railways and highways are around.
Wanfang steel is a specialized manufacturer and supplier of Pre-painted galvanized steel coil (PPGI), Hot dipped galvanized steel coil, cold rolled steel coil, acid pickled steel coil and tin plate. Our annual capacity of PPGI/GI is nearly 120,000 metric tons.

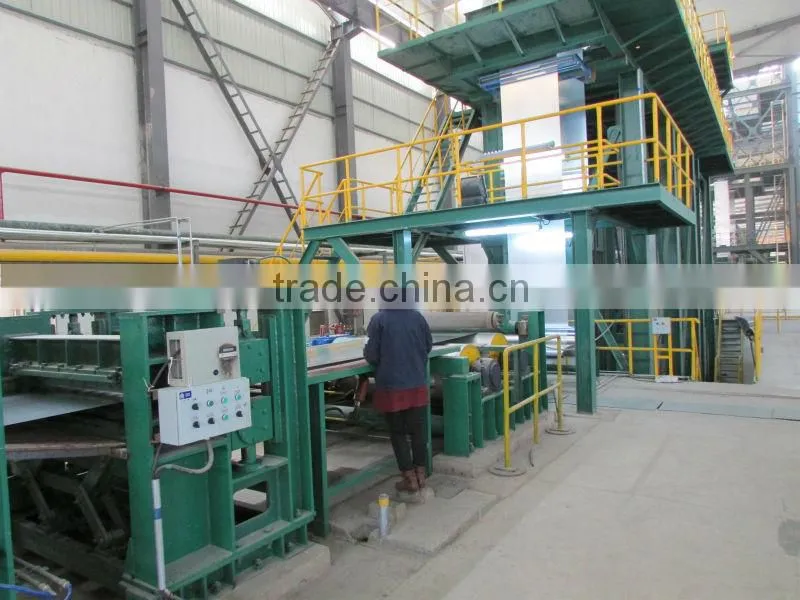

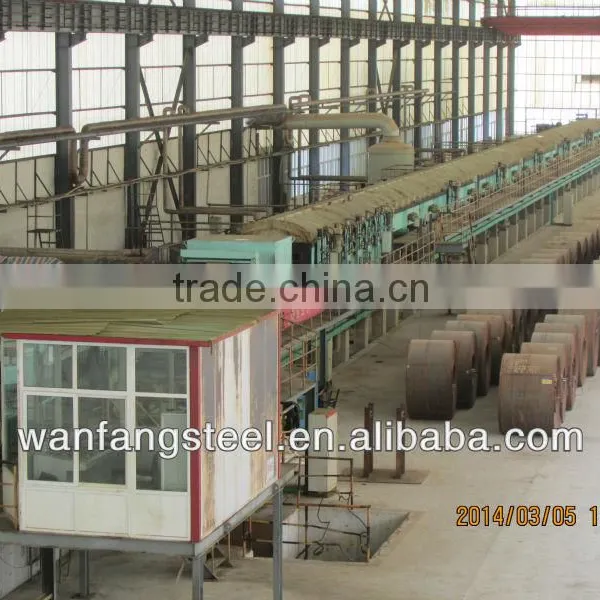

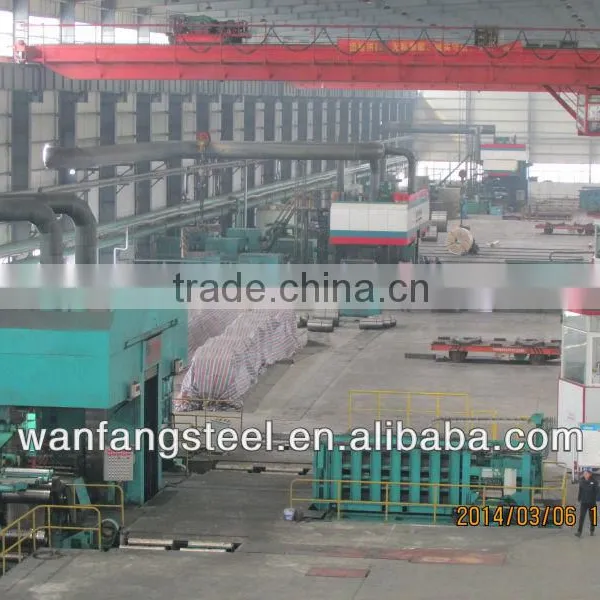

Wanfang steel is well-equipped with advanced production line and quality performance testing facilities, including one unit of push-pull type shallow slot turbulent acid picking line, three units of high precision single stand reversible cold rolling mill, one unit of continuous hot dip galvanizing line and one unit of pre-painted galvanizing line. The new project of tin plate line is in progress, which contains bell type full hydrogen annealing furnace, 18-high precision cold rolling mill, steel strip cleaning unit, multifunction steel strip skin pass mill, steel strip tension leveler, insoluble anode electrolytic tinning line.
Wanfang Steel focuses on strict quality control and timely delivery. QC members carry out strict inspection at each stage: raw-material inspection, in-process inspection and finished-product inspection.
Thanks to our experienced R&D staff,whose dedicated work ensure of excellent property through along the production procedure.
For extension into international market, Wanfang Steel is always in ready position go broad taking part in many fairs held in different area and regions, from Africa to North America and East to Mid of Asia.
Our aim is to be annual capacity of 150,000 metric tons of high precision steel sheet. We warmly welcome customers from home or abroad to visit our company for establishment of cooperation and creation of bright future together with us.
Industry Chain
Product Category
Product Specification

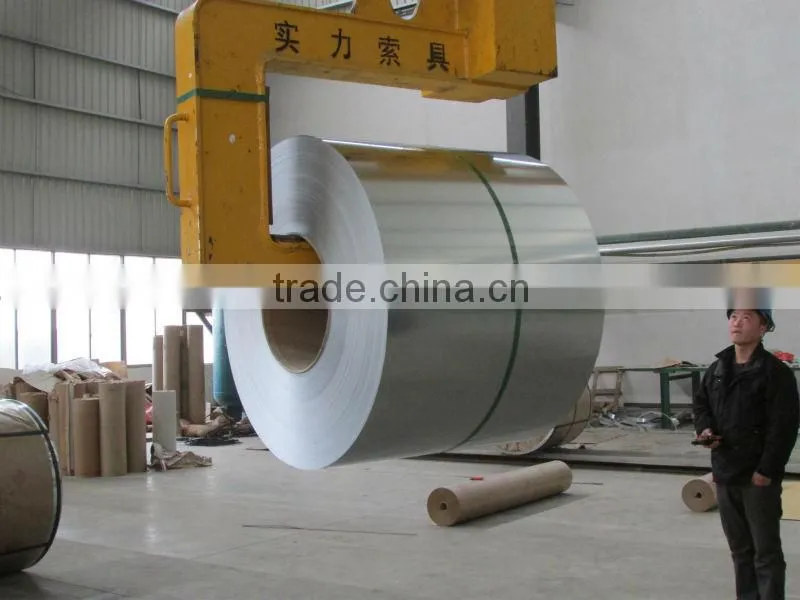

HDGI ( Hot Dip Galvanized Steel Coil)
Technical Standard: ASTM, DIN,GB,JIS
Grade: SGCC, SGCD or as per customer's requirement
Types: Commercial quality/ DQ
Width:900mm-1250mm
Thickness: 0.2mm-1.2mm
Type of Coating: Hot dipped galvanized
Zinc Coating: Z30-220g/m²
Surface Treatment: Passivation / skin pass / non-oiled
Surface Structure: No spangle / mini spangle
Coil Inner Diameter: 508mm or 601mm
Coil Weight: 3-10 mt per coil
Package: Standard export package or customized
Workmanship Technology

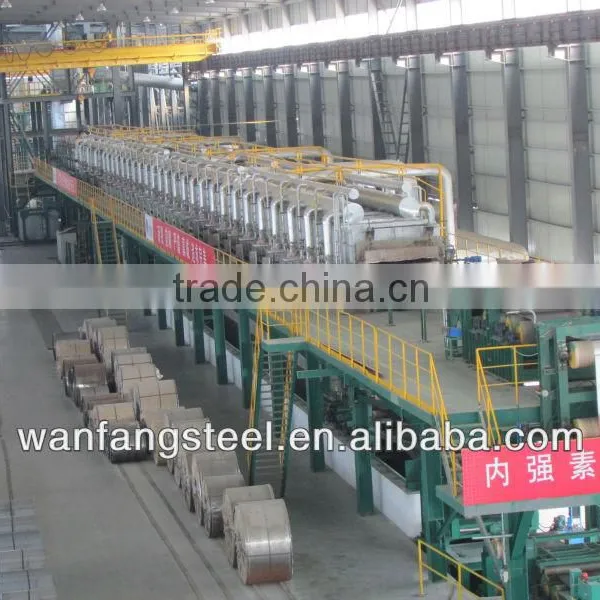

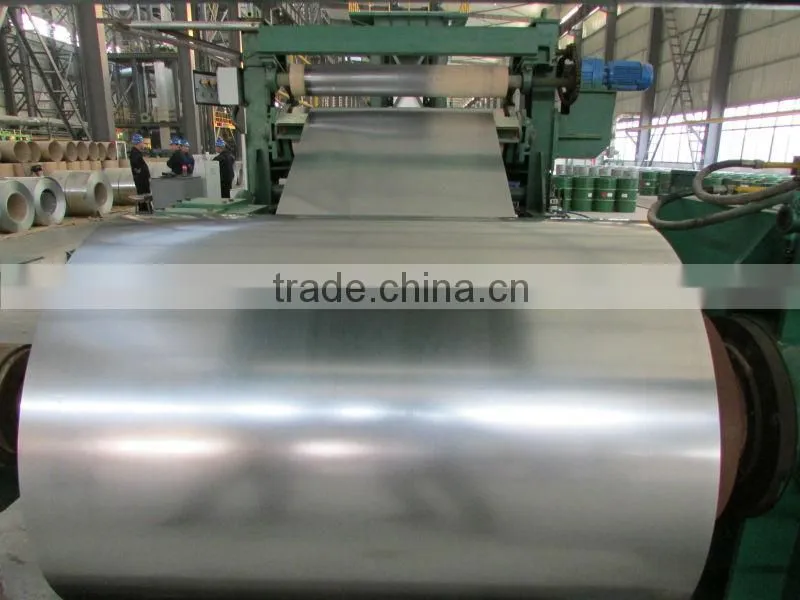

Wanfang steel galvanized production line adopts advanced hot-dipped galvanization technology of United States Steel Corp, consists of annealing,galvanizing,skin pass,straightening and passivation with energy conservation device of hot dipping galvanization. The finished product quality meets national GB standard and results in outstanding innovation on safety, energy-saving and environment protection.
Applications and Usage
Because of the quality performance, HDGI is widely adopted in many fields, such as constructions, light industry, automotive, agriculture, animal husbandry, fishery and commercial business, etc. In construcion industry, its is mainly used to make roof board and grid for industrial and civilian buildings; in light industry, it is mainly used to make casing of household appliances, civilian smoke stack and kitchen ware, etc; In automotive, it's used to make corrosion resistant parts; in agriculture, animal husbandry fishery and commercial business, usually made for freezing appliances and packing eqauipment, etc.
Being upstream semi-product, HDGI is used to make PPGI, for which please refer to the followed described.

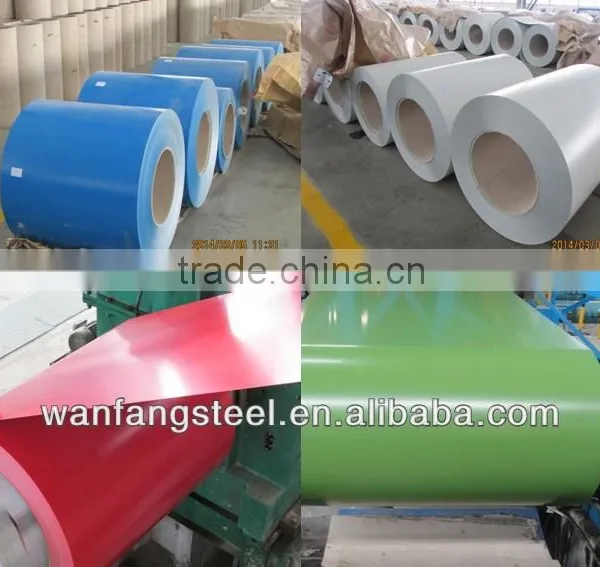

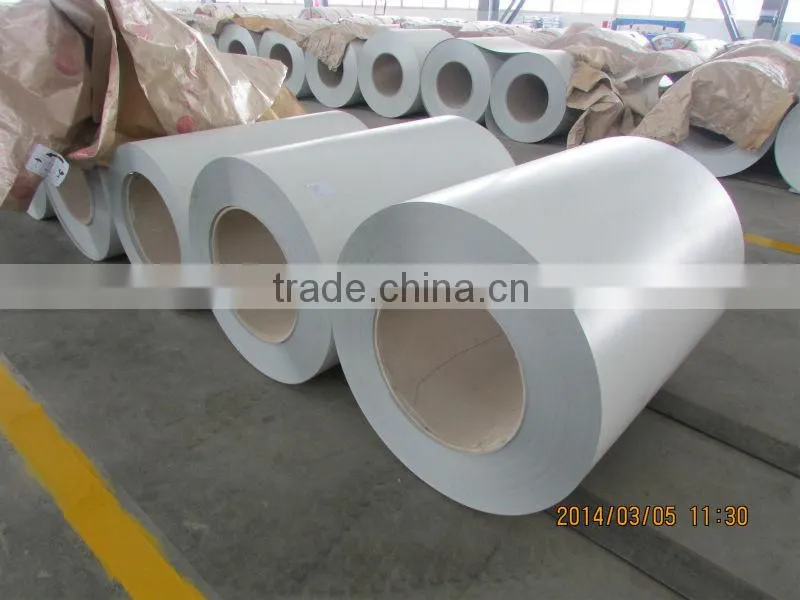

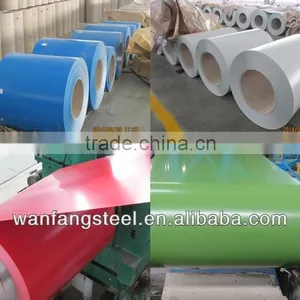

PPGI (Prepaint Galvanized Steel Coil)
Technical Standard: ASTM, DIN,GB,JIS
Width:900mm-1250mm
Thickness: 0.2mm-1.2mm
Top side: 5µm primer +12-25µm polyester
Back side: 5-8µm primer epoxy
Coil Weight: 3-7 metric ton per coil or customers' requirement
Package: Standard export package or customized
Color: RAL No. or customers' sample color
Workmanship

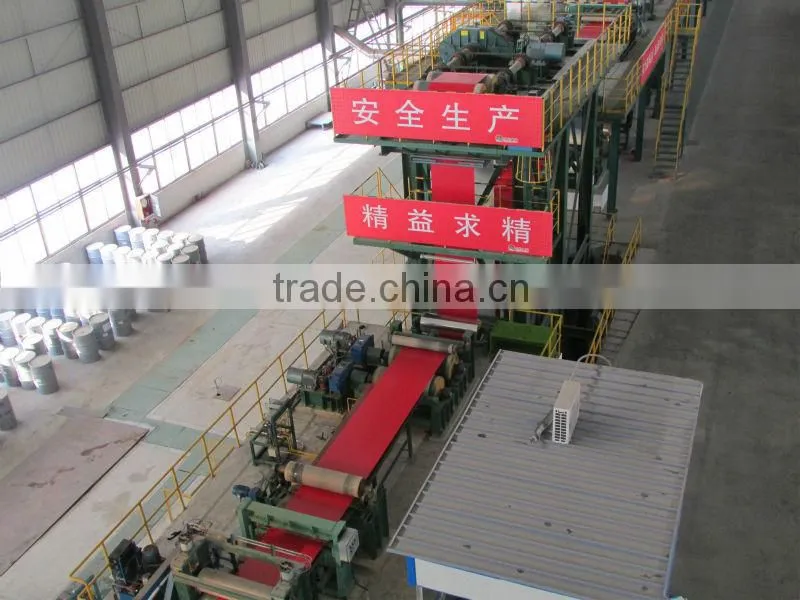

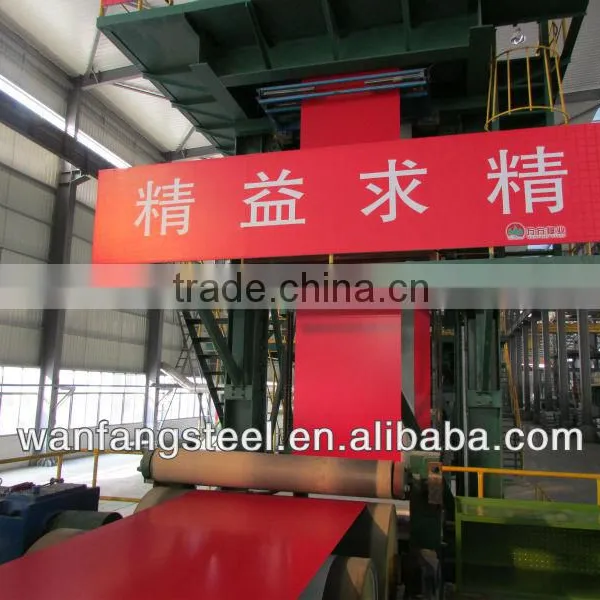

Prepained galvanized steel is a kind of product with cold rolled steel sheet and galvanized steel sheet as basic board.Treated with skining, cleaning, chemical conversion processing and twice coatings as well as twice baking, the end product not only has normal zinc coating protecting, but also the organic coating on the surface has the function of isolation and rust-resist, which prlong the usage life.
Usage and Application
Being a new energy-saving and environmenta-friendly raw materical, PPGI steel coil has the advantages of lightless, beautiful color and excellent corrosion resistant performance, it has been widely used in constructions, shipbuilding,vehicle and automotive , furnituring and electric industries.
Superiority we hold
♦Strong logistics and cost-effective production cost
Wanfang is located at seaport-Rizhao port, Chinese biggest mineral ore port. This is the prior advantage we hold on logistics and the huge steel plant-Rizhao Steel is to east about 5kms away, which saves us procurement cost and makes price lower than other origins.
♦Talent Superiority
Wanfang is a complex enterprise with integration of manufacture, sales and international business. Rizhao Xingchi Trading Co.,Ltd is our sole holding export business department, through which we can export various kinds of semi and finished products. Rich experienced professional staffs are employed.
♦Advanced technology
Wanfang is equipped with advanced facilities under the latest technology that make sure of the perfect quality.
♦High quality material insurance

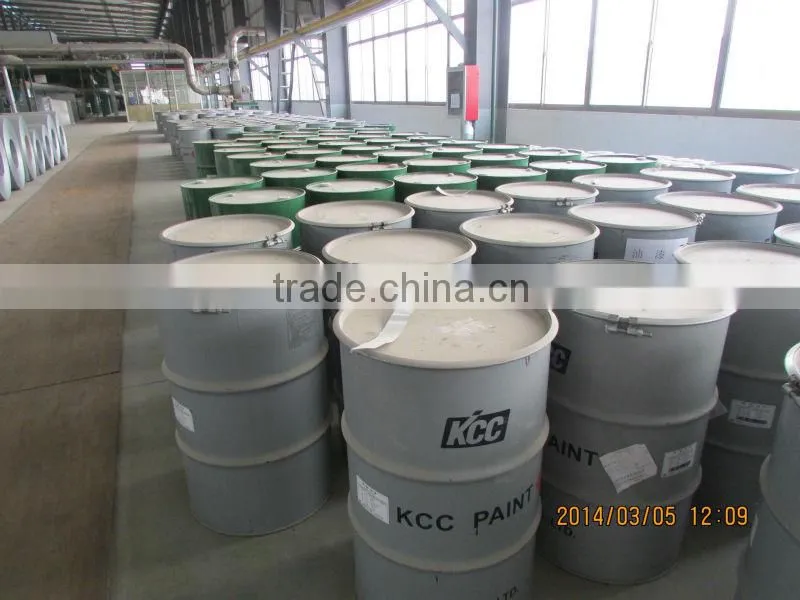

Wanfang insist on performance quality sources, including the basic plate supplied by huge plant used for HDGI and PPGI. For PPGI, we come to an agreement with KCC the famous brand ranks top No.1 in paint market.

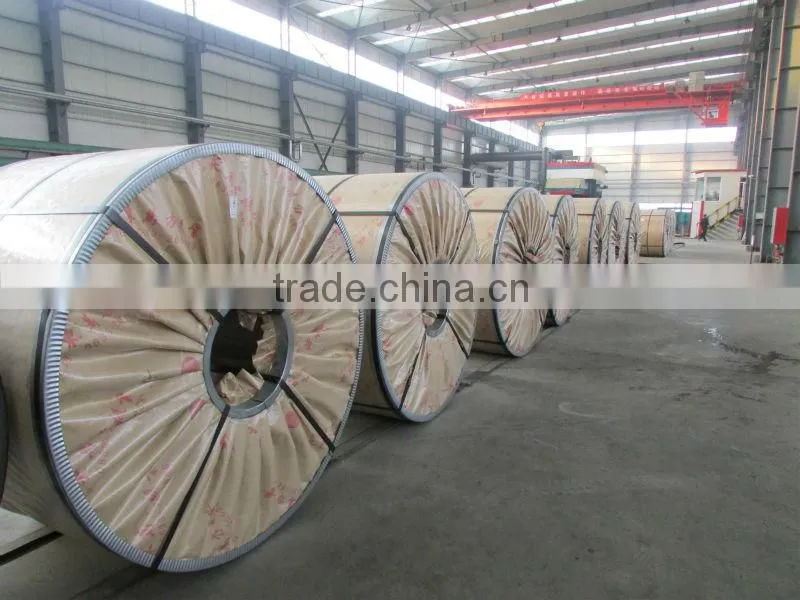

Package
customized package varies from in compliance with customer's requirement. Unless other instructed, package is at seller's option.
For standard exoprt packing please refer to the description.
1.Inner core card board sleeve 2.Inner corner protection 3.Oil packing paper 4.Rust-proof paper 5.PVC round protecting board 6.Galvanized protecting sheet 7.Outer metal corner protection 8.Packing band wrapped via 4X3 Reinforcement for container packing if require, total weight less than 25 tons.
