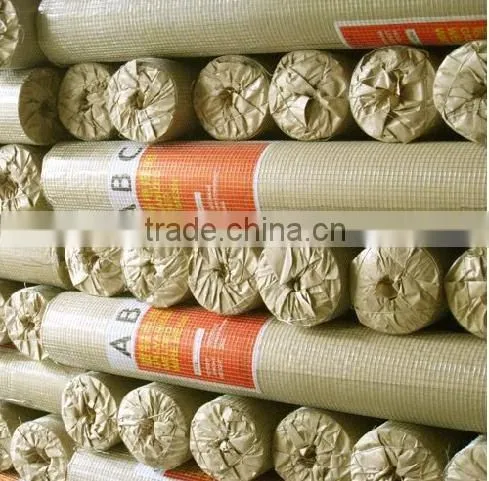

Welded Wire Mesh

Welded Wire Mesh thumbnail-1
Welded Wire Mesh photo-1
Negotiable MOQ: 1000 Rolls (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
CHUNSHENG
Model Number:
welded mesh
Contact Supplier Request Quote Chat Now
Anping Chunsheng Hardware Mesh Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name CHUNSHENG
Model Number welded mesh
Material galvanized iron wire
Wire Gauge 0.4-3.0mm
Mesh Size 1/4",1/2",3/4",1",2",1"x2",3"x4"
Hole Shape Square
Surface Treatment Galvanized
Technique Welded

Specifications

Welded Wire Mesh
Wire Diameter: 0.4mm-3.0mm
Mesh: 1/4",1/2",3/4",1",2",1"x2",3"x4"
Finish: galvanized or PVC coated

Welded Wire Mesh PVC Coated  is made of high quality low carbon steel wire,welded wire mesh  divides into hot dipped galvanized and electro galvanized.The adoption plates the zinc craft after welding,it is made from high-quality iron wire by automatic equipment .The products have smooth mesh surface ,well-proportioned meshes ,strong welded points and bright luster.The mesh does not come loose even if cut in parts or being exerted force on parts .Compared with general iron wire,the products are better in respects of anti-corrosive and anti rust.

Use:used in the industry ,agriculture ,construction,transport and mining .Such as machine protection cover ,ranch fender ,garden fender ,window protection fender ,passage fender ,fowl cage ,egg basket and foodstuffs basket.

surface treated:Galvanized and PVC coated,stainless steel wire

Weaving and characteristics:

  • Hot dipped galvanizing after weaving
    Weaving with hot dipped galvanized iron wire
  • Electric galvanizing after weaving
    Weaving with electric galvanized iron wire
  • PVC coated welded wire mesh

Specification List of Welded Wire Mesh:

Opening

Wire Diameter<BWG>

In inch

In metric unit(mm)

1/4" x 1/4"

6.4mm x 6.4mm

22,23,24

3/8" x 3/8"

10.6mm x 10.6mm

19,20,21,22

1/2" x 1/2"

12.7mm x 12.7mm

16,17,18,19,20,21,22,23

5/8" x 5/8"

16mm x 16mm

18,19,20,21,

3/4" x 3/4"

19.1mm x 19.1mm

16,17,18,19,20,21

1" x 1/2"

25.4mm x 12.7mm

16,17,18,19,20,21

1-1/2" x 1-1/2"

38mm x 38mm

14,15,16,17,18,19

1" x 2"

25.4mm x 50.8mm

14,15,16

2" x 2"

50.8mm x 50.8mm

12,13,14,15,16

Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request.





Galvanized Fencing Mesh:

Opening

Wire Diameter<BWG>

In inch

In metric unit(mm)

2" x 3"

50mm x 75mm

2.0mm,2.5mm,1.65mm

3" x 3"

75mm x 756mm

2.67mm,2.41mm,2.11mm,1.83mm,1.65mm

2" x 4"

50mm x 100mm

2.11mm,2.5mm

4" x 4"

100mm x 100mm

2.0mm,2.5mm

Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request.





PVC Coated Welded Mesh:

Opening

Wire Diameter<BWG>

In inch

In metric unit(mm)

1/2" x 1/2"

12.7mm x 12.7mm

16,17,18,19,20,21

3/4" x 3/4"

19mm x 19mm

16,17,18,19,20,21

1" x 1"

25.4mm x 25.4mm

15,16,17,18,19,20

Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.2m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request.
