Gabion boxMesh size(mm): 60x 80, 80x 100, 80x 120, 100 x120, 100 x150, 120x 150
Wire Diameter: 2.0mm--4.0mm

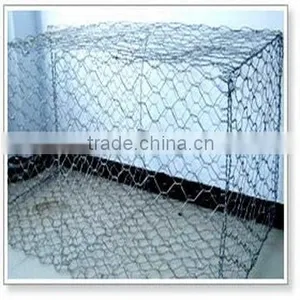

Gabion box
Material: Galvanized wire or PVC coated wire
Mesh size: 2m-4mx1mx1m, 2m-4mx1mx0.5m
Hole shape: Hexagonal
Supply ability: 15000 sqrare meter/square meters per day SA you inquiry
Package: Plastic film and bundle or pallet or as you need
Wire diamter: 2.0-3.0mm
Color: Green, dark green or as you need
Selvedge dia: 2.7-3.9mm
Processing: Galv. After weaving, galv. Before weaving
Technique: Crimped
Other name:
Gabion box gabion mesh, heavy hexagonal wire mesh, stone cage, gabion boxes, gabion mamattress, heavy wire mesh gabion, PVC coated gabion mesh
Gabion baskets are made of hexagonal galvanized/PVC/Zinc coated double-weisted mild steel wire mesh.
Material: High quality low caron steel wire(hot-dip galvanized wire, electro galvanized wire or PVC coated wire)
Application: This kind of products is widely used to prevent soil erosion and retain soil particles, reduce water velocities and recapture river bed sediment in streams; Also used omstly in the civil engineering industry especially in the construction of roads; Recently due to their environmental benefits, they are used in various Poolication and industuies.
| Specification of gabion hexagnonal mesh | |||
| mesh (MM) | Wire diameter(metal wire)(mm) (MM) | PVCi wire nner/after PVC(MM) | max width (M) |
| 60X80 | 2.0-2.8 | 2.0/3.0-2.5/3.5 | 4.3 |
| 80X100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 4.3 |
| 80X120 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 4.3 |
| 100X120 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 4.3 |
| 100X150 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 4.3 |
| 120X150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 | 4.3 |
If you are interested with our Gabion box or Hexagonal Wire Netting, kindly contact us freely.
