Help CenterBig Discount High Quality Aluminum Composite Roof Panels Manufacturer
Related Products
-
Jiangsu HD Brand Decorative Aluminum Composite Panels ManufacturerUS$ 7 - 12MOQ: 500 Square Meters -
High Quality PE Coated or PVDF Aluminum Composite Panels PriceUS$ 7 - 12MOQ: 500 Square Meters
-
Fireproof (acp) Aluminum Composite Panel 4/0.3mm Pvdf Aluminum Composite Panel fp a Pvdf Aluminum Composite PanelUS$ 8 - 20MOQ: 500 Square Meters
-
Construction Material Aluminum Composite Panel Fire Proof a Pvdfaluminum Composite Panel Mirror Surface Aluminum Composite PanelUS$ 8 - 20MOQ: 500 Square Meters
-
Aluminum Composite Panel Line Aluminum Composite Panel Philippines Haida Brand High Quality Construction Materials Pvdf Coated aUS$ 8 - 20MOQ: 500 Square Meters
Specifications
certicifate,such as IAF,CNAS,EWC,CE.CNABExterior wall panel composite panel prime quality PVDF paint over 20 years guarantee
Quick Details
- Brand Name:Haida
- Model Number: HD-302,HD-303,HD-304
- Usage:indoor
- Function:Anti-Static,Fireproof
- Surface Treatment:Anodized,Brushed,Mirror,PVDF
- Color:RAL colors,our factory standard colors,other colors according to yours
- Max width:1570mm
- Max length:6000mm
Packaging & Delivery
Packaging Details: |
bulk load or in wooden pallet |
Delivery Detail: |
within 15 days |
Specifications
We provide big discount high quality aluminum composite roof panels manufacturer , with high quality, competitive prices and best service always.
Exterior wall panel Aluminum composite panel PVDF pain different color over 20-year guarantee OEM design acceptable
Raw Materials
Core material: PE plastic core material from the Shandong qilu,Yangzi Petrochemical.
Paint coating:The United States PPG,Taiwan and Taiwan Yang and other famous international brands resin KYNAR500,HYNAR5000.
Specifications
Standard Size : 1220*2440mm(4*8ft),1500*3050mm(5*10ft).
Thickness :4mm,5mm,6mm
Width Range : 80-1570mm,usually by 1220mm, 1250mm, 1500mm, 1550mm, 1570mm.
Length Range : 2000-6000mm
Aluminum Skin : 0.3mm,0.4mm,0.5mm
Color
Factory standard colors.
RAL standard colors.
wooden color / stone color
avaiable in customized
Finish
PVDF / anodized / brushed / foil / mirror
Packing
wooden/iron pallet with corrugated board and protection film. pallet size according to commodity specification
Loading Qty :
Approximately 3980 sqm(1340 pcs) by size 1220*2440*4mm in 20ft.
About Us
Our factory is the biggest and earliest manufacturer and exporter of aluminum compoisite panels in China.
We have been exporting our products for about 15 years.
Our factory is near Shanghai Port,CN,the driving time is just 2 hours.
NOW SHOW SOME PICTURES ABOUT OUR COMPANY.
Production show

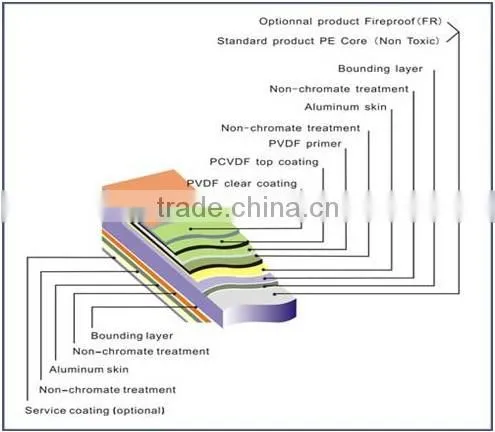

Production structure
*Custom design and CAD drawing is welcome. *
We are glad to cooperate with your company~~
