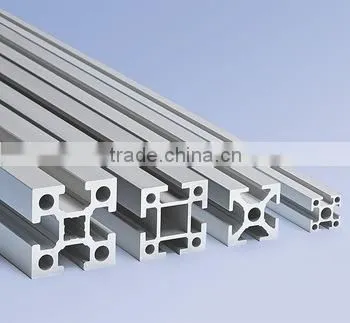

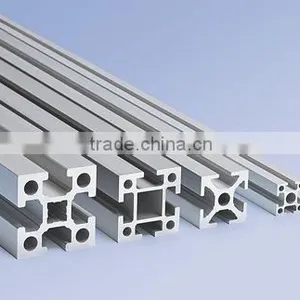

Help CenterHigh Quality T Slot Aluminum Profile for Assembly Lines
Related Products
-
6060 t5 Extruded Aluminum Profiles Pneumatic Car Cylinder BoreUS$ 2,100 - 2,600MOQ: 2000 Kilograms -
6063-T5 /T6 Anodized Types of Aluminum Tubing Frame ProfilesUS$ 2,100 - 2,600MOQ: 1 Ton
-
6063 6061 6060 6082 Anodized EXTRUSION Aluminum TubesUS$ 2,200 - 2,600MOQ: 2000 Kilograms
-
6063 6005 6061 6082 Radiator Aluminum Profile ManufacturerUS$ 2,000 - 2,300MOQ: 2 Metric Tons
-
6063-T5 Aluminum Profile Oxidation With Chuck for SaleUS$ 2,100 - 2,600MOQ: 2000 Kilograms
Our company Jiangsu Haida Group East-China Aluminium Technology Co is the largest integrated manfacturer and exporter of heat sink aluminium in the world. Our profiles is mainly used for auto components, bridge , skywalking, facade, windows and etc.
Capacity:
10,000tons per month
50 extrusion press
max 4000UST press
Material Alloy
Alloy: EN AW 6060 6061 6063 6005 T5 / T6
Standard: GB/T3190-1996
Surface treatment: anodised natural finish, black finish, standard film AA15um or 10um
Other finish: Mill finish, powder coating, anodizing,electrophoresis,etc.
| Aluminum Grade | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | <0.35 | <0.1 | <0.1 | 0.45-0.9 | <0.1 | <0.1 | <0.1 | <0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | <0.15 | 0.8-1.2 | 0.04-0.35 | <0.25 | <0.15 | <0.15 | Rest |
| 6005 | 0.6-0.9 | <0.35 | <0.1 | <0.1 | 0.4-0.9 | 0.1 | <0.1 | <0.1 | <0.15 | Rest |
Mechanical property
Alloy |
Condition |
Tensile strength |
Yield strength |
Elongation |
Vickers hardness |
6061 |
T6 |
>265Mpa |
>245Mpa |
>8% |
|
6063 |
T5 |
>160Mpa |
>110Mpa |
>8% |
HV>58 HW>8 |
T6 |
>205Mpa |
>180Mpa |
>8% |
|
Colored anodized profile
Grade |
Thickness of film |
Hole scaling quality of oxide layer |
|
Average thickness |
Local thickness |
P. Cr acid-erosion weight less method |
|
AA10 |
>10um |
>8mm |
<30 mg/d m2 |
AA15 |
>15um |
>12um |
|
Powder coating & wooden-grained profile
Coating thickness |
Coating impress rigidity |
Adhesive force of coating layer |
40-120um |
Indentation hardness>80 |
0 grade |
Wall Thickness
Above 1.0mm; recommend 1.2mm and above, customized available.
Length: Customized available.
Time of sample
10 days, including making tool
Time of order: 15days
CNC precessing ability
Drill holes, stretch bending, milling, welding, fabrication etc.
Popular drawings
Fusion
Extrusion
Electrophoretic and coating
Lab
Certificate
