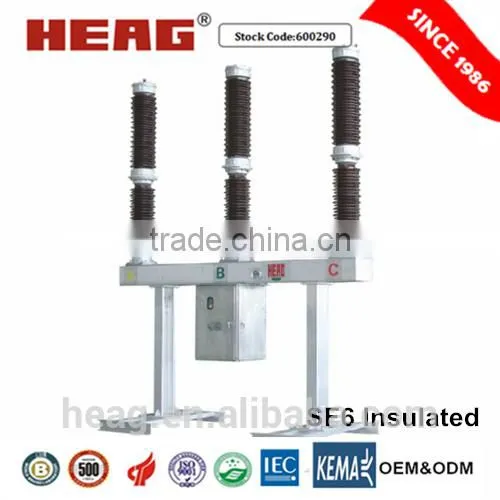

Help CenterLW36 High Voltage 110kv Circuit Breaker Gas Circuit Breaker
Related Products
-
ZW43-12/24 Circuit Breaker Types Outdoor Sf6 Gas Circuit BreakerNegotiableMOQ: 1 Set -
Switchgear Manufacturers GIS 110kv SF6 Gas Insulated SwitchgearNegotiableMOQ: 1 Set
-
ZW37S-40.5 Circuit Breaker Prices 33kv Vacuum Circuit BreakerNegotiableMOQ: 1 Set
-
ZW37S-40.5 Outdoor High Voltage AC Permanent Magnet Vacuum Circuit BreakerNegotiableMOQ: 1 Set
-
ZW8-12 Outdoor High Voltage Alternative Current Vacuum Circuit BreakerNegotiableMOQ: 1 Set
Main Products
Huayi Electric Co., Ltd(HEAG) is one of leading manufacturers in China mainly for power distribution and transmission line, at present we mainly produce the following 7 categaries:
1. Wind Energy Power Systems;
2. Outdoor Power Transmission and Distribution Systems till 252kV;
3. Indoor Metal-clad switchgear and control systems;
4. Medium voltage equipments and Accessories;
5. Intrument energy meters & Protection Relays;
6. Instrument Current Transformers & Potential Transformers;
7. Mining Electrical equipments and LV electrical Apparatus.
Product Details
>> Summary :
This product is based on the technology of LW36A/B-72.5/126/145, developed by Xi'an HV Electrical Apparatus Institute and HEAG group. It absorbs experiences and technics in similar product manufacturing and perfected as a new generation of self-evolving SF6 HV circuit breaker. LW36A/B-72.5/126/145 is used to control and protect circuit in 72.5/126/145kV and AC 50/60Hz power system. It is SF6 insulation with CT30 spring operation mechanism.
>> Technical Specification :

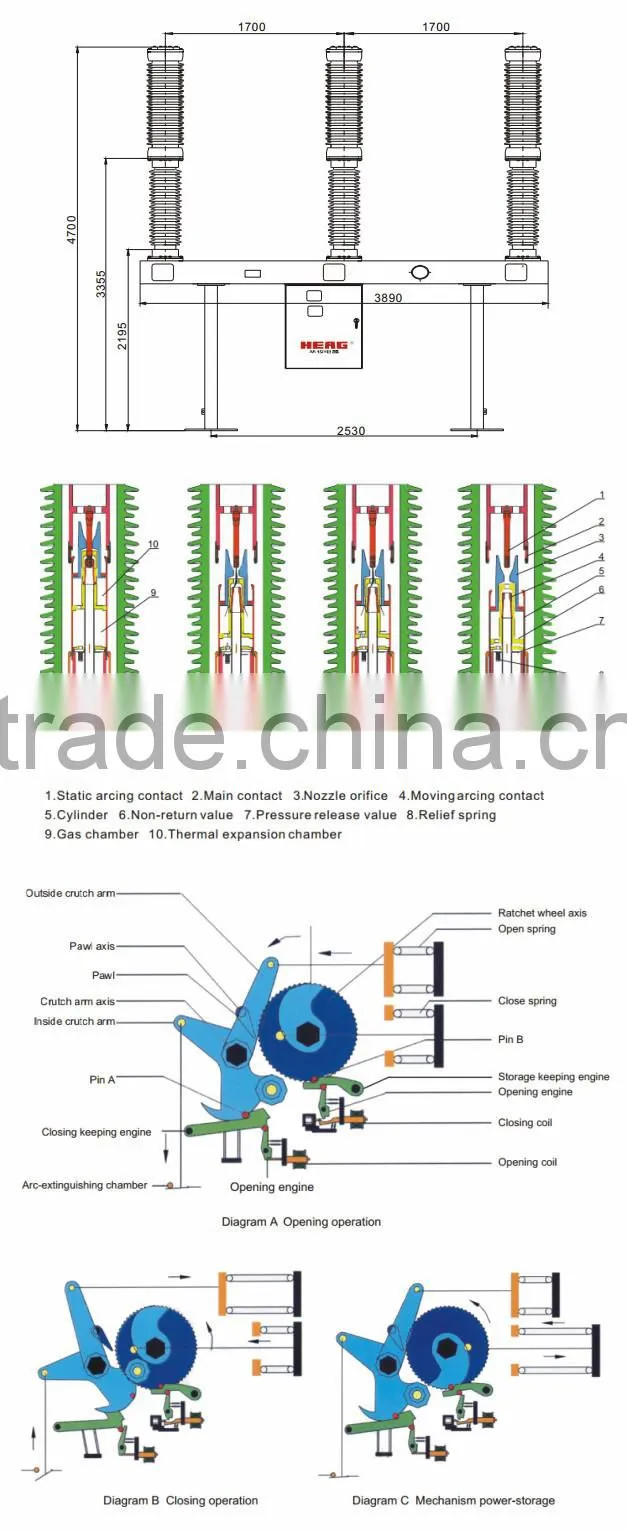

>> Structure :
Related Items
VHY1-12/24 Circuit Breaker JN15-12/24 Earthing Switch FZRN21-12D Combination Apparatus
Why Choose Us
>> Certifications :
>> Package :
Company View
Contact Us
We will be always at your service!
>> FAQ :
1: What certifications do you get?
A: We have ISO, CE, KEMA, SGS, etc.
2: Are OEM&ODM available?
A: Yes, we accept OEM and ODM.
3: When to get the price?
A: We usually quote within 24 hours after getting your inquiry.
if you are very urgent to get the price, please contact us with emails or calls so that we will regard your inquiry priority.
4: Is sample available and free?
A: Sample is available, but sample should be paid in advance. The cost of sample will be refund after further order.
5. How to pay?
A: T/T and L/C are acceptable, and T/T will be more appreciated.
30% deposit before producing, 70% balance before loading by T/T.
6. What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, one month after the receipt of the 1st payment.
7. What about the Package?
A: Standard export package (Wooden carton with inner vacuum package) for long-distant ocean shipment and tough handling is provided. and we can make special designed for you if need.
8.How to contact?
A: Send your inquiry details in the below, Click “send” now!
↓
