Home > Instruments & Meters > Meter for Electricity > Energy Meter & Power Meter > DDSI39 Electronic Single-phase PLC Static Energy Meter

DDSI39 Electronic Single-phase PLC Static Energy Meter

Name: DDSI39 Electronic Single-phase PLC Static Energy Meter
Brand: HEAG
SKU: 103298705

DDSI39 Electronic Single-phase PLC Static Energy Meter thumbnail-1

DDSI39 Electronic Single-phase PLC Static Energy Meter photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

HEAG

Model Number:

DDSI39

Contact Supplier Request Quote Chat Now

Huayi Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai/ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name HEAG

Model Number DDSI39

Display Type Analog and Digital

Phase Single Phase

Measuring Energy Range 1.5(6) 2.5(10) 5(20) 10(40) 15(60)

Accuracy Class 1.0,2.0

Output Voltage 220v

Operating Temperature -25℃ ~+55℃

Dimensions normal

Summary of DDSI39 Single-phase PLC Static Energy Meter:
DDSI39 series PLC static energy meter is a terminal unit of automatic reading system based on special large scale integrated circuit and SMT technology by adopting microelectronic and computer technology as core technology and depending on modern management. simple structure, high reliable performance and security, etc. This meter is adopt power line carrier wave, no need other communication cable, so that to reduce the cost and avoid dangerous when the cable is broken.

Technical Specification of DDSI39 Single-phase PLC Static Energy Meter:
1. Electrical condition
Accuracy class: 1.0 class, 2.0 class;
Conformed standards: voltage circuit ≤1.5W/5VA, current circuit ≤2.5VA;
Start-up current: 0.4%(1.0 class), 0.5%(2.0 class);
Shunt running: anti-shunt running design;
Carrier wave signal level: <0.6P-P;
Carrier wave communication distance: 3km;
The difference value between memory data and the data of counter: <0.0kWh;
2. Ambient condition
Normal working temperature: -25℃ ~+55℃;
Limit working temperature: -40℃ ~+70℃;
Relative humidity: annual average 80%;
3. Accord standard: IEC62053; DL/T689-1999; GB/T 17215-2002;
Relay accuracy: 3 class.
4. Memory life: 30 years.

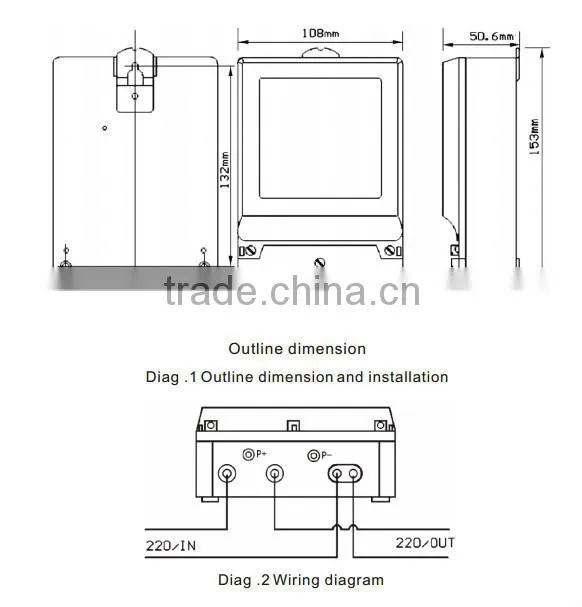

Structure of DDSI39 Single-phase PLC Static Energy Meter:

Product Function of DDSI39 Single-phase PLC Static Energy Meter:

1. Metering function
AD7755 measure positive and negative active power on same direction to avoid current in reverse;
Metering line have high quality, wide working range, the error less than 0.3% under 5000:1;
The data will keep more than 10 years and it will not lost after current out.
2. Carrier wave communication function
It used for setting the parameter and reading; It can operate the relay of meter;
Communication speed rate: 500bps; communication distance:500m (between tie points);
Can expand communication distance;
Communication rule: the communication rule of single tariff carrier wave channel;
3. Impulse output function
Used for verify meter and collection power;
Out of power isolating output port.
