Specifications

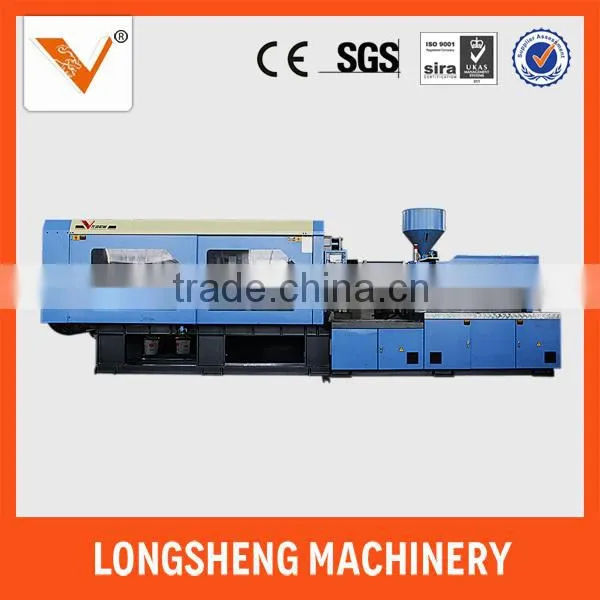

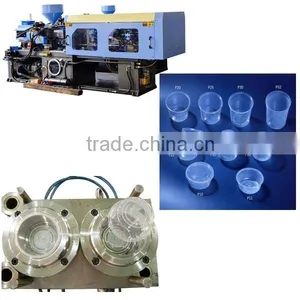

LSF258 full automatic plastic cup making machine
1) CE. ISO Certificate
2) World-famous Brands Component
3) Servo Energy-Saving
|
INJECTION UNIT |
|
Unit |
LSF-258 |
||
A |
B |
C |
|||
Screw Diameter |
Mm |
50 |
55 |
60 |
|
Screw L/D Ratio |
L/D |
24 |
21.8 |
20 |
|
Short Size |
Cm3 |
557 |
676 |
802 |
|
Injection weight |
G |
507 |
610 |
730 |
|
Injection Rate |
g/s |
121 |
146 |
174 |
|
Plasticizing Capacity |
g/s |
32 |
42 |
49 |
|
Injection Pressure |
Mpa |
223 |
184 |
155 |
|
Screw Speed |
Rpm |
0-190 |
|||
Screw Stroke |
mm |
284 |
|||
|
CLAMPING UNIT |
Clamp Force |
KN |
2580 |
||
Space Between Tie Bars |
mm |
560X530 |
|||
Toggle Stroke |
mm |
505 |
|||
Max. Mold Height |
mm |
560 |
|||
Min. Mold Height |
mm |
200 |
|||
Ejector Stroke |
mm |
150 |
|||
Ejector Tonnage |
KN |
62 |
|||
Ejector Number |
P |
9 |
|||
|
OTHERS |
Max. pump Pressure |
Mpa |
16 |
||
Pump motor powder |
Kw |
24 |
|||
Heater Power |
Kw |
16 |
|||
Machine Dimension(L*W*H) |
M |
5.3X1.5X1.95 |
|||
Machine Weight |
T |
7.1 |
|||
Oil Tank Capacity |
L |
400 |
|||
1.High torque oil motor pre-plasticizing drive

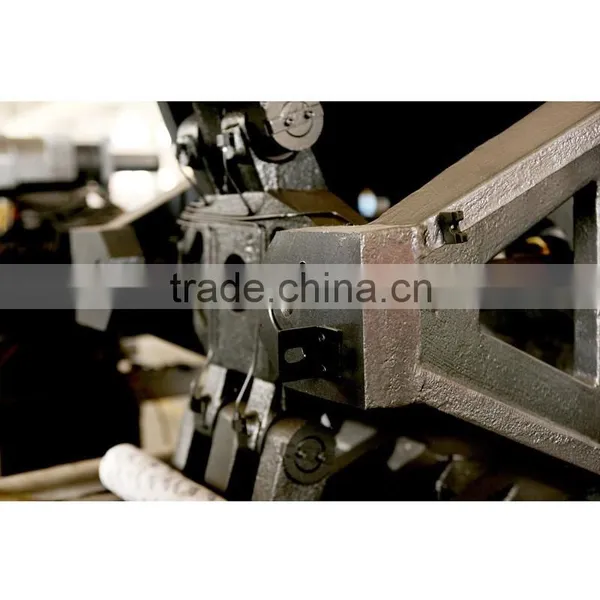

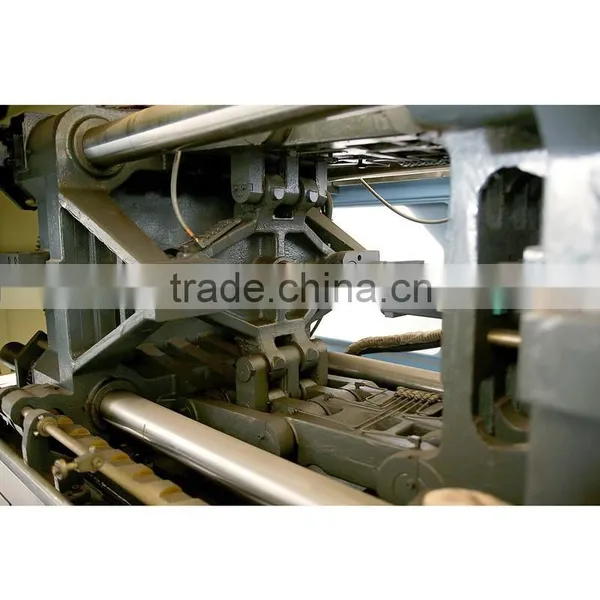

2.Five fulcrum and double bent axle locking mould
3.Oil motor drive gear adjusting mould

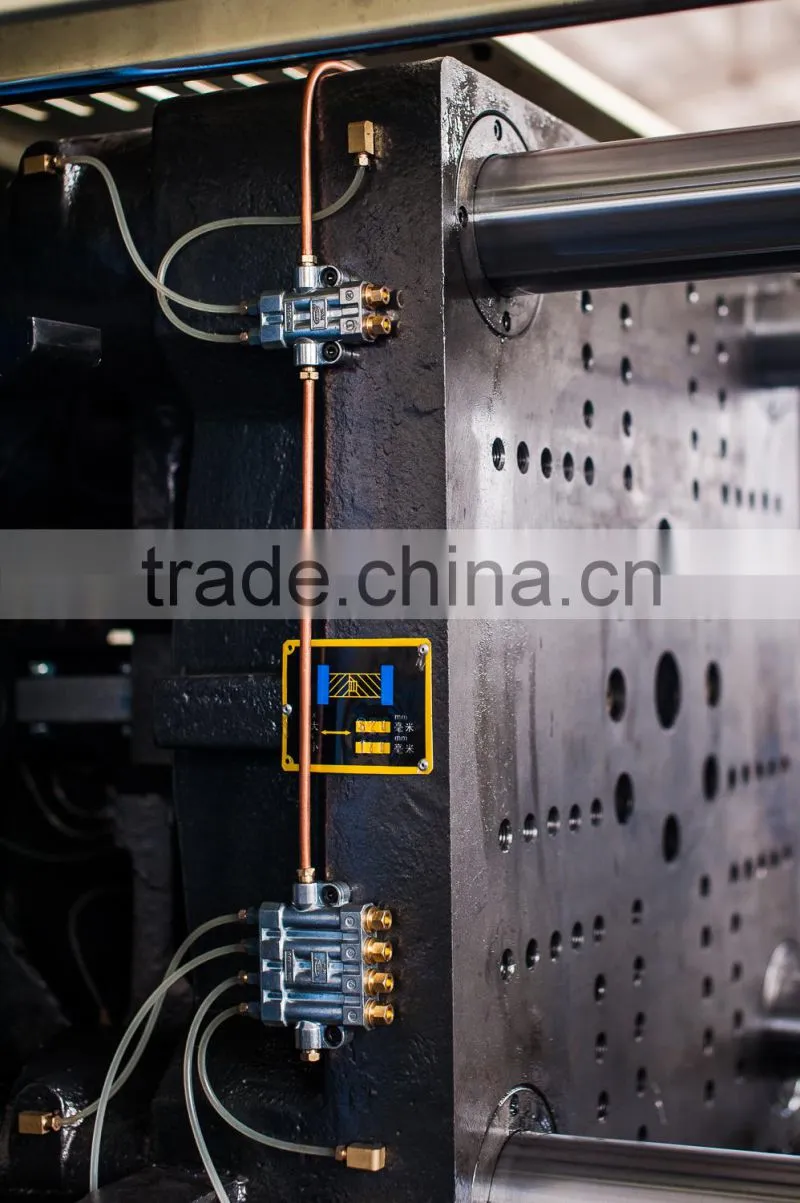

4.Strage type oil automatic lubrication system
5.Pressure, flow complete proportion running
6.High quality quieter oil pump
7.Injection many stages pressure, speed adjusting
8.Chinese and English mcrocumputer controlling
9.High-precision position movement ruler
10.Mould group data memory function
CONTROL SYSTEM
All-digital control system uses dedicated controller, multiple CPU processing division,
a multi-functional automatic fault detection, alarm system, certificates 99 mold of
processing procedures, with remote control interface. System is of high stability and
responsiveness. System uses color LCD, man made interface for easy operation and with a number of peripheral interfaces.

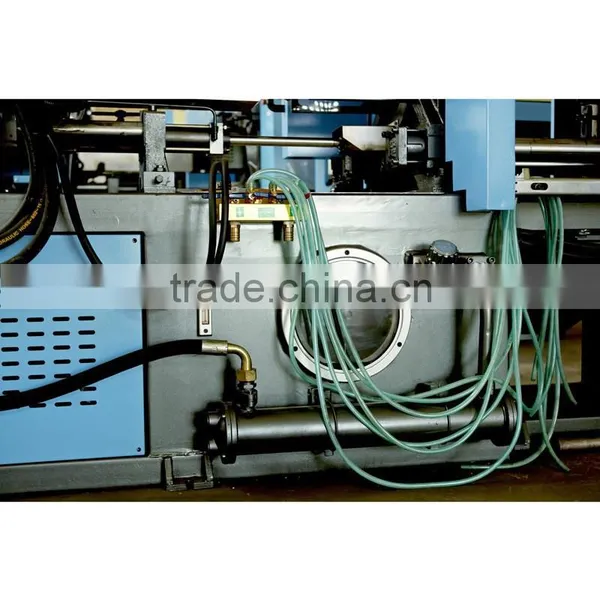

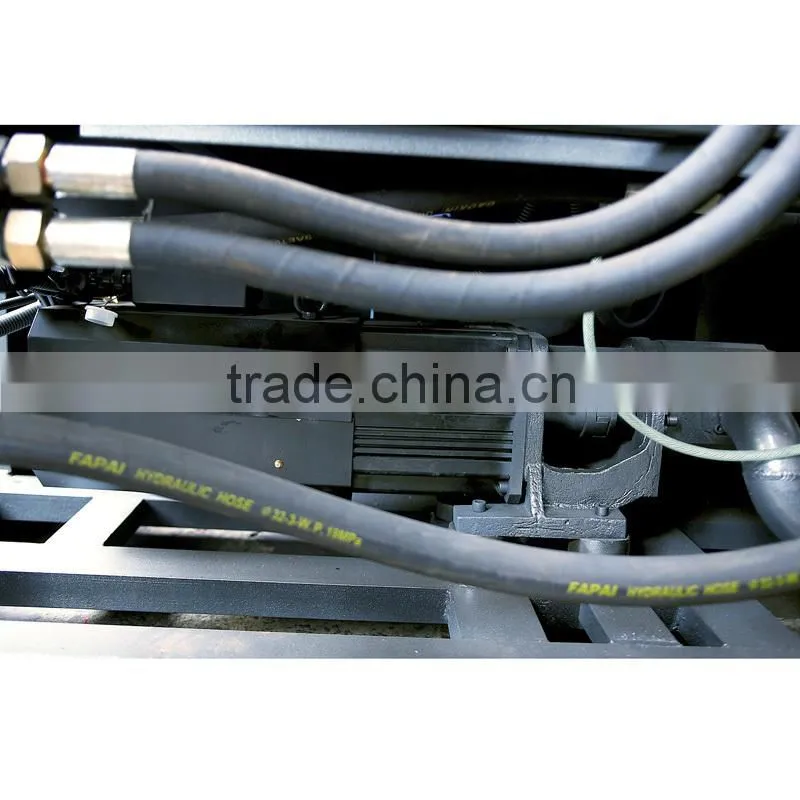

HYDRAULIC SYSTEM
Advanced hydraulic system design, through proportional control of pressure, flow achieves rapid multi-level pressure, speed switching, the system configuration is reasonable, stable and reliable. The noise is less than 75 dB. The medium and large machine adopts a two way cartridge inserted valve system to improve the system of flow and speed of response, and makes the whole machine reach the best performance.

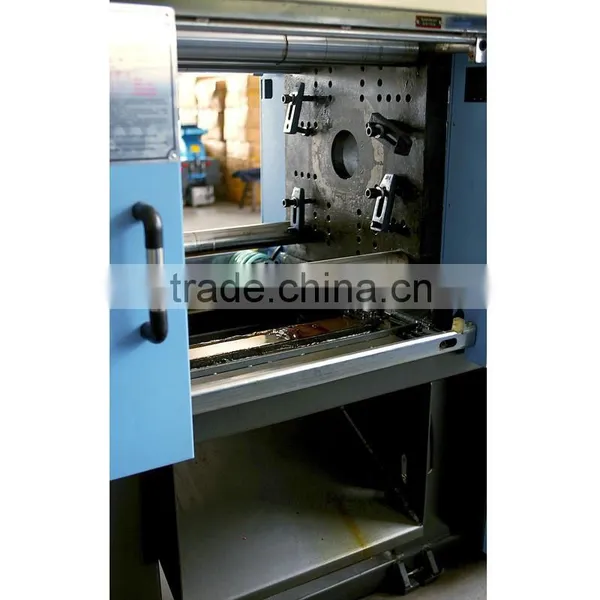

CLAMPING SYSTEM
- Security doors fitted with hydraulic, mechanical and electrical interlocking triple safety device. When the safety door is open, the machine cannot clamp.
- Low pressure mold protection device to prevent damage to platen.
- Plywood, frame, the bridge, and the template attached structure, the finite element analysis.
- Hydraulic ejector, adjustable stroke, and top speed of ejector in and out, for multiple actions.
- Flexible tie bars nut eliminates fatigue fracture; assure the working life of tie bars
- Automatic adjustment. The replacement of different mold, the parameters set by clamping force to achieve the automatic adjustment.
- High-precision electronic detection device, multi-stage control of opening stoke, speed and location, location accuracy.

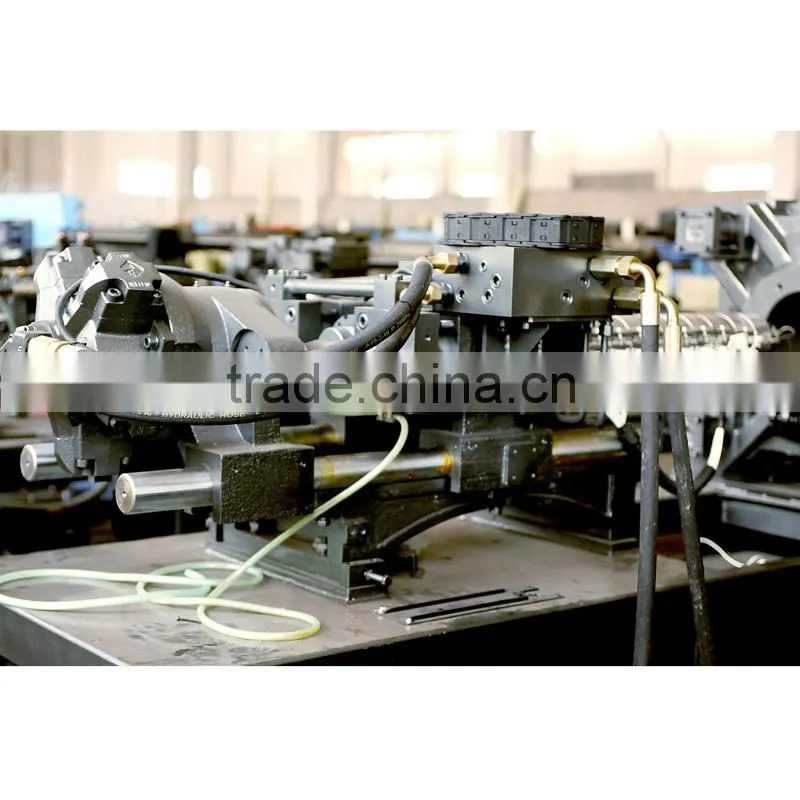

INJECTION SYSTEM
Diversified screw optimal design municipal science and technology research projects focus on key issues is completed, and is now designed professionally and production for a whole variety of raw material.
the diversity of the screw is for your option.
FEATURES
- There are three or four screws and barrels with optimal design, respectively, nitride, hard plating, dual-metal, which is suitable for different processes of a variety of plastics. and the choice of products.
- Two-guided guided bar supports, double-balanced rapid injection.
- The high-torque hydraulic motors offer a stable plasticizing capacity, highprecision electronic device position detection enable accurate measurement.
- Multi-injection speed and pressure and multi-level holding pressure settings, switch from the injection time, location, pressure control to ensure the quality of molding.
- Multi-level back-pressure of pre-plastic and pre-speed are computer-controlled, anti- drooling and automated auto purge.
- Expected to prevent cold-start function to ensure that the screw, Liao Tong will not be harmed. Stability of the injection unit.
Packaging Detail: |
Painted with anti-corrosion oil, and covered with plastic film, then packed in wooden box. |
Delivery Detail: |
15-45 days |
Customer is foremost,integrity comes first.Our professional team can offer worriless full range service and customer-oriented service according to customers individual requirements.
1). Free one-year after-sale service is provided from the arriving date.
2). Installation and start-up guide can be provided at customer site.
3). Free training.
4). The warranty time is 12 months after acceptance. Abnormal operation and abuse of the machinery are excluded. Wearable parts, such as screws and barrels are warranted.
