Help CenterLow Voltage Switchgear Electric Metering Cubicle
Related Products
-
GGD Low Voltage Power Distribution CabinetUS$ 2,000 - 5,000MOQ: 10 Pieces -
Medium Voltage Electric Energy Metering Cubicle Made in ChinaUS$ 4,000 - 6,000MOQ: 10 Pieces
-
10KV Switchgear Electric Energy Metering CubicleUS$ 4,000 - 6,000MOQ: 10 Pieces
-
Electrical Assemblies Switchgear Metering CubicleUS$ 4,000 - 6,000MOQ: 10 Pieces
-
10KV Electric Switchgear Metering Cabinet PJ1-10US$ 4,000 - 6,000MOQ: 10 Pieces

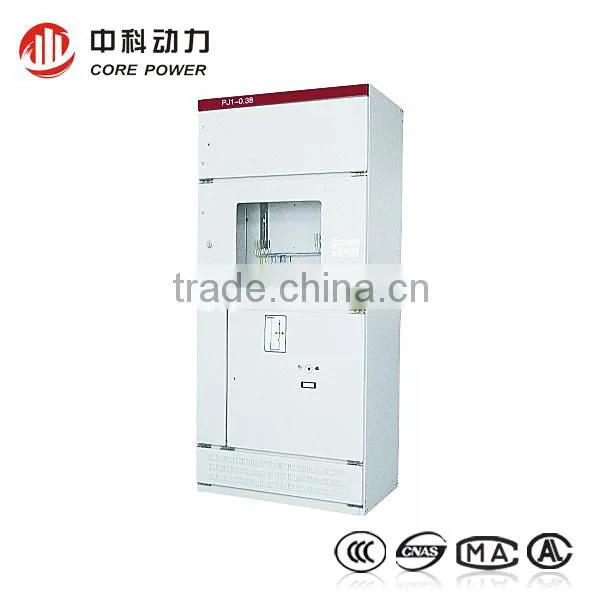

PJ1-0.38 series low voltage electric energy metering cabinet applied to indoor,AC 50HZ ,rated voltage 380V;
rated current 50-600A distributing power system which is cooperation with different structure LV switchgear;
as the measurement of transformer low voltage side.
Meet standard requirement of GB 3906, GB/T 16934 and administration of power supply container type inspection specification.
Product feature:
Parallel installation, side wall has parallel mounting hole matched with low voltage switchgear draw up in order after in parallel.
Measuring cabinet fundamental structure, frame structure is complete match with LV switchgear.
Measuring the watt-hour meter, potential current transformer and secondary circuit, loss-voltage timers,communication modular,connectors,etc,setted in a closed chamber(cabinet )
Both front and back of cabinet adopted embedded door frame structure,door is equip with uniform regulations passport with lead seal hole
magnetic lock and each doors have two seal columns for lead sealing respectively.
Front and back of door inspection window frame install with inside bolt screw and rubber by sealing ,thickness of colorless transparent glass not less than 4mm;
front door watch electrical power meter and complete junction box and junction situation; back door watch electrical power, complete junction box and
junction situation,inspection of transformer nameplate and small wiring.
