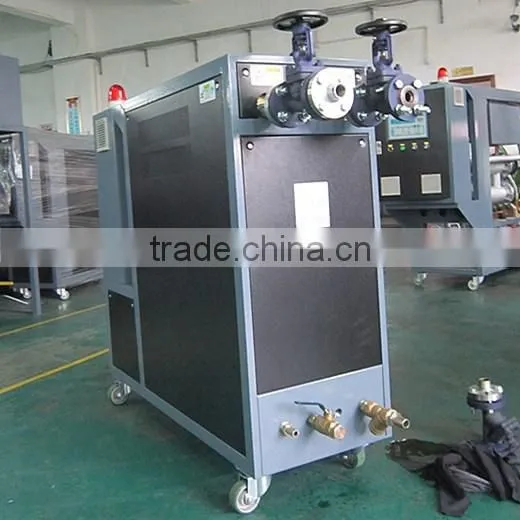

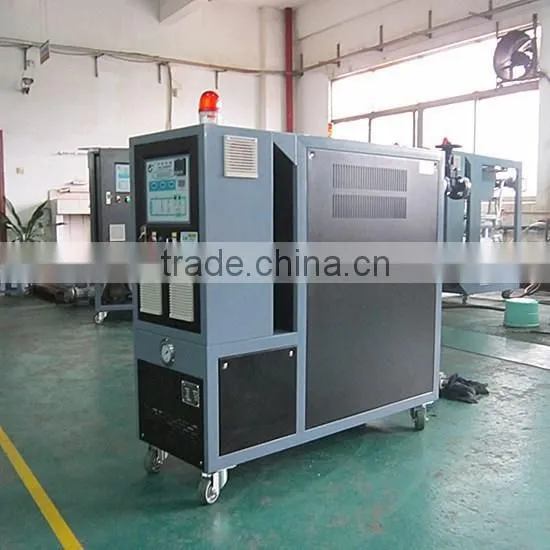

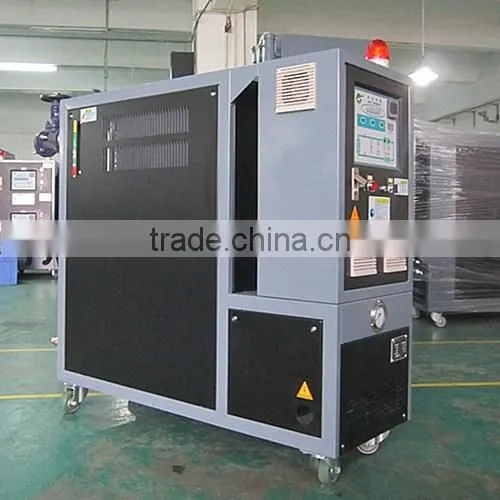

AEOT-20 Injection Mold Temperature Controller in Industry

Name: AEOT-20 Injection Mold Temperature Controller in Industry
Brand: AODE
SKU: 103423325

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Oil Temperature Machine

Application:

plastic injection mould,roller,reaction kettle, plate

Shenzhen Aode Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Oil Temperature Machine

Application plastic injection mould,roller,reaction kettle, plate

Place of Origin Guangdong, China

Brand Name AODE

Model Number AEOT-20

Temperature Range 45℃~300℃

Temperature Control Accuracy PID±1℃

Dimension(L*W*H) 1150*420*1000mm

Weight 120kg

Internal Piping Size 3/4

Voltage 3N380V50HZ

Power(W) 18/24KW

Certification CE and ISO

After-sales Service Provided Engineers available to service machinery overseas

AEOT-20 injection mold temperature controller in industry Quick Detail:

Explosion-proof equipment(optional)
Shutdown immediate cooling function(optional)
Certification:CE & ROHS
Pump power: 1.5KW
Inlet water temperature:25℃-300℃
Alarm function:pump reversal,Oil shortage, overheating, overload and oil overflow
Warranty:1 year

AEOT-20 injection mold temperature controller in industry Description:

Explosion-proof equipment (optional)
Air blowing and return oil return function(optional)
Thermometer for return oil
Automatic air-exhausting function after startup
Switchover of heating power
Negative-pressure system(optional)
RS485 communication function for automated management(optional)
Shutdown delayed cooling function(optional)

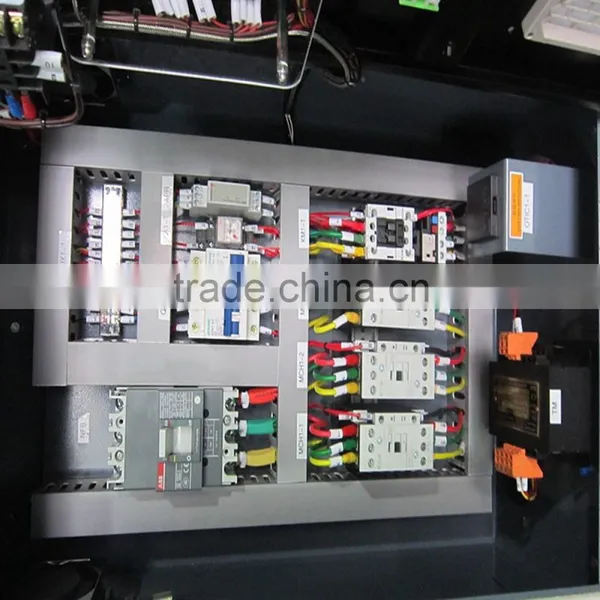

Isolated electric box for longer services lives of electric appliances
BY-PASS pressure release loop for hot oil
Customizable multi-point temperature control unit
Customizable horsepower and heating power of oil pump
Brands OMRON, FUJI, TE. LS. MOELLER, ABB, WEST for electric appliance
Range of temperature control:+25℃-300℃for incoming water
CE certificate
Stainless steel integrated pipelines for less pipe resistance and rust
Control mode: imported microcomputer or PLC(optional)
Perfect safety protection, fault display, easy repair and maintenance even free of professionals

AEOT-20 injection mold temperature controller in industry Specifications:

ITEM	UNIT	AEOT-20
Temp control range	℃	Inter water temperature +25℃-300℃
Temp control accuracy	℃	PID±1℃
Power supply		AC3N380V(3phase+Earth)
Heat transfer medium		Thermo conductive oil
Cooling method		Indirect cooling
Expansion tank capacity	L	24
Heating capacity	KW	18/24
Pump power	KW	1.5
Pump flow	M3/h	6
Pump pressure	Kg/cm3	2.2
Maximum power consumption	KW	25.5
Alarm function		Pump reversal/Oil shortage/Overheating/Overload/Oil overflow
Cooling water pipe	inch	1/2
Circulating water pipe	inch	3/4
Size(L×W×H)	mm	1150×420×1000
Remark:1.Tank volume in bracket is on behalf of external fuel tank volume 2.The pump pressure value in bracket matches the above pump flow in bracket
