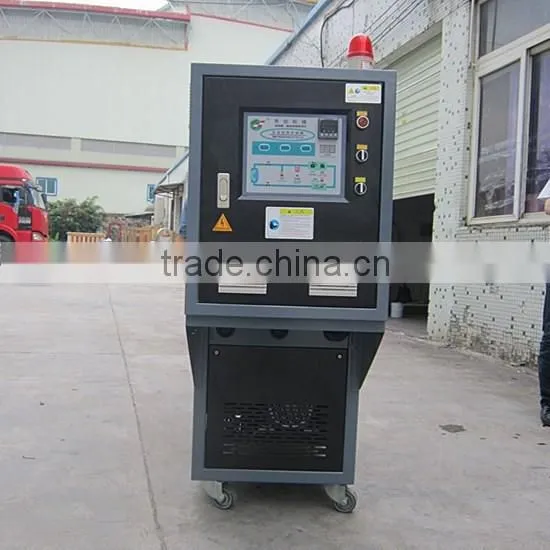

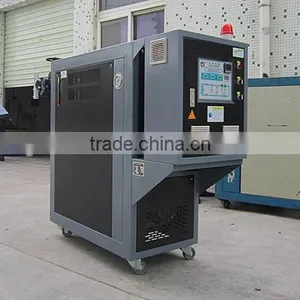

30kw Hot Oil Mold Temperature Control Unit for Industry Production

Name: 30kw Hot Oil Mold Temperature Control Unit for Industry Production
Brand: AODE
SKU: 103423653

US$ 1,000 - 2,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Oil Temperature Machine

Application:

plastic injection mould,roller,reaction kettle, plate

Shenzhen Aode Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen;Shanhai;Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Oil Temperature Machine

Application plastic injection mould,roller,reaction kettle, plate

Place of Origin Guangdong, China

Brand Name AODE

Model Number AEOT-30

Temperature Range 25℃~300℃

Temperature Control Accuracy PID±1℃

Dimension(L*W*H) 1350*500*1150mm

Weight 140kg

Internal Piping Size 1inch

Voltage 3N380V50HZ

Power(W) 30/36KW

Certification CE and ISO

After-sales Service Provided Engineers available to service machinery overseas

AEOT-30 hot oil mold temperature control controller in industry Quick Detail:

Explosion-proof equipment(optional)
Shutdown immediate cooling function(optional)
Certification:CE and ROHS
Pump power: 2.2KW
Inlet water temperature:25℃-300℃
Alarm function:pump reversal,Oil shortage, overheating, overload and oil overflow
Warranty:1 year

AEOT-30 hot oil mold temperature control controller in industry Description:

Explosion-proof equipment (optional)
Air blowing and return oil return function(optional)
Thermometer for return oil
Automatic air-exhausting function after startup
Switchover of heating power
Negative-pressure system(optional)
RS485 communication function for automated management(optional)
Shutdown delayed cooling function(optional)

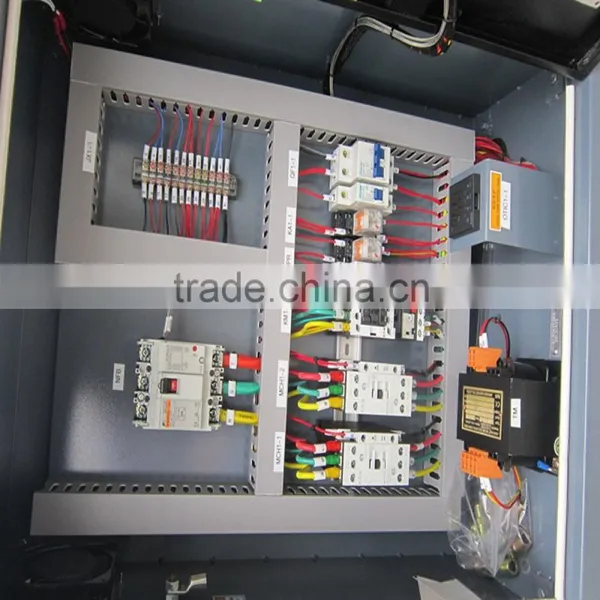

Isolated electric box for longer services lives of electric appliances
BY-PASS pressure release loop for hot oil
Customizable multi-point temperature control unit
Customizable horsepower and heating power of oil pump
Brands OMRON, FUJI, TE. LS. MOELLER, ABB, WEST for electric appliance
Range of temperature control:+25℃-300℃for incoming water
CE certificate
Stainless steel integrated pipelines for less pipe resistance and rust
Control mode: imported microcomputer or PLC(optional)
Perfect safety protection, fault display, easy repair and maintenance even free of professionals

AEOT-30 hot oil mold temperature control controller in industry Specifications:

ITEM	UNIT	AEOT-30
Temp control range	℃	Inter water temperature +25℃-300℃
Temp control accuracy	℃	PID±1℃
Power supply		AC3N380V(3phase+Earth)
Heat transfer medium		Thermo conductive oil
Cooling method		Indirect cooling
Expansion tank capacity	L	38
Heating capacity	KW	30/36
Pump power	KW	2.2
Pump flow	M3/h	10
Pump pressure	Kg/cm3	2.8
Maximum power consumption	KW	38.5
Alarm function		Pump reversal/Oil shortage/Overheating/Overload/Oil overflow
Cooling water pipe	inch	1/2
Circulating water pipe	inch	1
Size(LWH)	mm	13505001150
Remark:1.Tank volume in bracket is on behalf of external fuel tank volume 2.The pump pressure value in bracket matches the above pump flow in bracket
