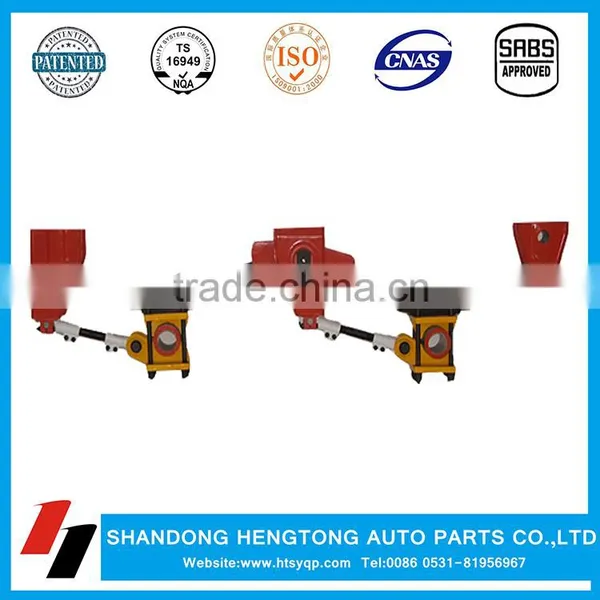

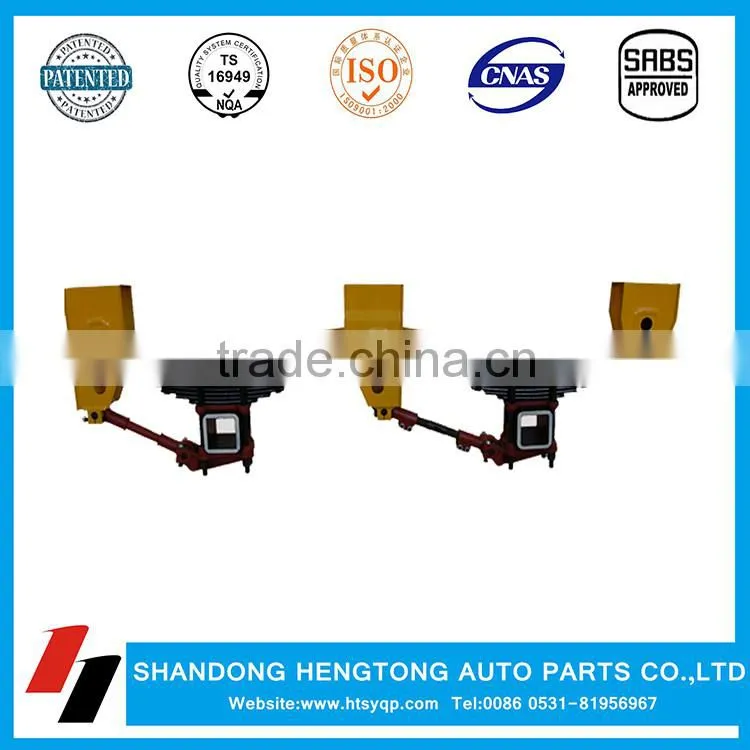

3 Axle German Type Trailer Suspension
Specification:
1. Capacity: 13ton 14ton 16ton 20ton 25ton
2. Brake:420*220mm
3. Cenre distance of brake chamber:350mm
4. Axle tube: 150*150/Φ127
5. P.C.D:335
6. Track:1850mm
7. Bearing Inner/ Outer: HM32222 HM518445/10
8.Optional track length available
9. Optional ABS and automatic adjuster available
10. Optional Square axle shaft or Round axle shaft
11. Optional inboard drum axle or outboard drum axle
Characteristics:
1).Special heat-treat, low-alloy steel axle beam, it has the virtues of good synthetic
performance,strong load ability and lower self weight.
2).High quality alloy solid inserted spindle, through wholly heat treatment, provide
superior fatigue capability.
3).High performance premium non-asbestos brake linings, extend service life.
4).Easy for ABS installation.
5).Camshaft, matching with special seals, can ensure no entry of the grease into the
brake drum, more safety.
6).New tight fit hub capO rings, high property for sealing.
7).Grease lubricant is supplied by Mobil that lengthens the time of free maintenance
- Shipping
Company Information
Certification
FAQ
1. Are you a manufactory or a trading company?
- We are a Manufactory located in Jining City, Shandong Province, China. Please check our Business License on the home page.
2. Is OEM available?
- Yes, of course. We have professional designer to help you promote your brand.
3. Is the sample available?
- Yes, samples are FREE for testing the quality, while freight should be paid on your side.
4. Can I be your agent?
- Yes, further cooperation is warmly welcomed. For more information, please contact me.
