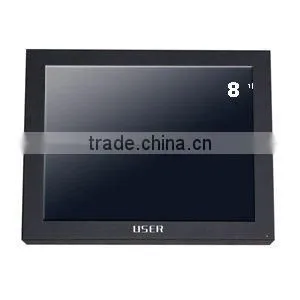

Help Center8 Inch CCTV LCD Monitor
Related Products
Specifications
resolution: 800*600brightness: 300 nit
contrast: 300:1
visual angle: 140/150
response time: 5ms
Specification model |
US-M8001P |
|||||
Panel size |
8″TFT-LCD |
|||||
Display area(mm)/mode |
166(W)×125.5(H) 4:3 |
|||||
Maximum resolution |
800x600 |
|||||
Display color |
16.7M |
|||||
Pixel Pitch(mm) |
0.068(H)×0.203(V) |
|||||
Brightness (nits) |
300cd/m2 |
|||||
Contrast |
300:1 |
|||||
Visual angle |
140°/150° |
|||||
Response time |
5ms |
|||||
Horizontal frequency |
30-48KHZ |
|||||
Vertical frequency |
56-60KHZ |
|||||
Life(hrs) |
>60,000(hrs) |
|||||
Input and output |
|
|||||
Composite video input |
1(BNC×1) |
|||||
Y,Pb,Pr/Y,Cb,Cr input |
option |
|||||
S-video |
No |
|||||
D-15 pin RGB input |
1 |
|||||
Video |
|
|||||
Color system |
PAL/NTSC/SECAM |
|||||
OSD display( screen menu display) |
|
|||||
Menu language |
Chinese/English( multiple language option required) |
|||||
Power |
|
|||||
Power supply |
DC12V 2A |
|||||
Maximum power consumption |
<=15W |
|||||
Standby power consumption |
<1W |
|||||
Temperature |
|
|||||
Working temperature |
0°C~50°C |
|||||
Storage temperature |
-10°C~60°C |
|||||
Working humidity |
|
|
20%~80% |
|
|
|
Storage humidity |
|
|
5%~95% |
|
|
|
Appearance |
|
|||||
Body dimension(Lx W x H)mm |
189.6×148.7×43 |
|||||
Panel color/appearance |
White, black, customized |
|||||
Panel material |
Metal case |
|||||
Installation |
wall-mounted, desktop ( option) |
|||||
