Home > Industrial Equipment & Components > Engine & Part > Engine > 510HP Boat Engine Marine Engine Inboard Engine
510HP Boat Engine Marine Engine Inboard Engine
US$ 25000.00 - 25000.00
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Engine:
4 Stroke
Engine Capacity:
> 6L
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
400HP Marine Diesel Engine Inboard EngineUS$ 1 - 1,000MOQ: 1 Set -
480HP Marine Diesel Engine InboardUS$ 1 - 1,000MOQ: 1 Set
-
Marine Diesel Engine Inboard EngineUS$ 1,000 - 50,000MOQ: 1 Set
-
730HP Marine Diesel Engine Inboard BoatUS$ 1 - 50,000MOQ: 1 Set
-
480HP Marine Diesel EngineUS$ 1 - 1,000MOQ: 1 Set
Condition
New
Engine
4 Stroke
Fuel Type
Diesel
Cylinders
6
Engine Position
Inboard
Dimensions (L x W x H) (mm)
1880*1000*1860

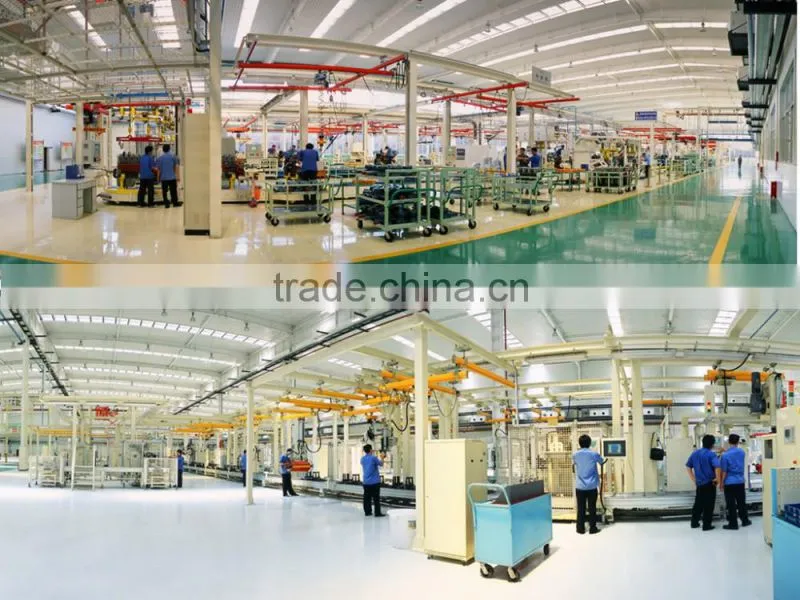

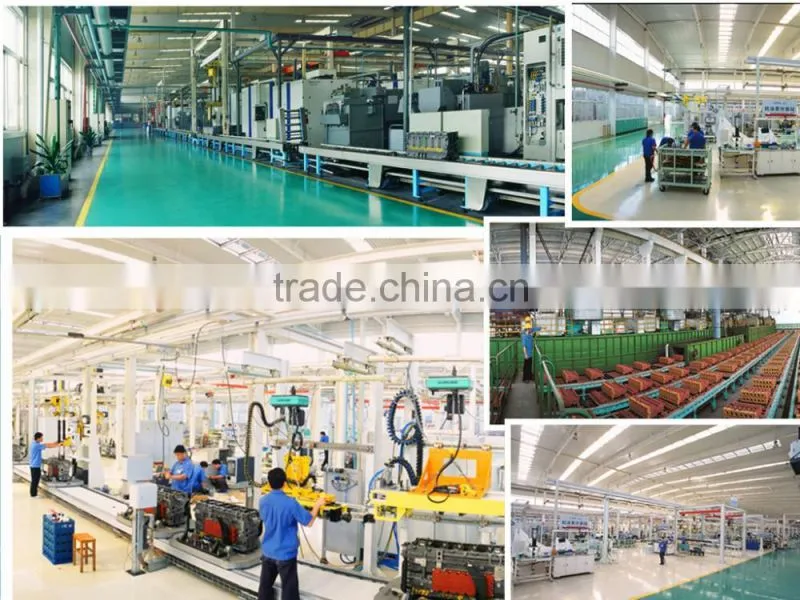

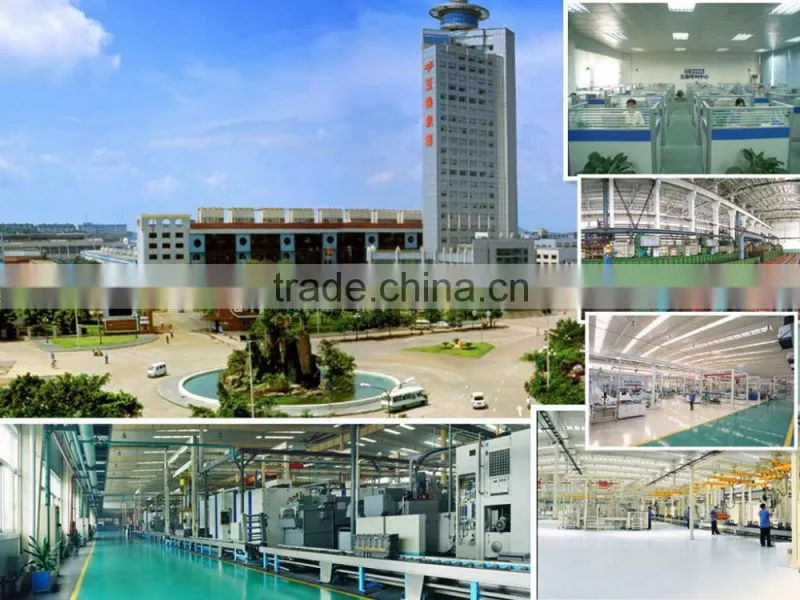

1. Factory picture

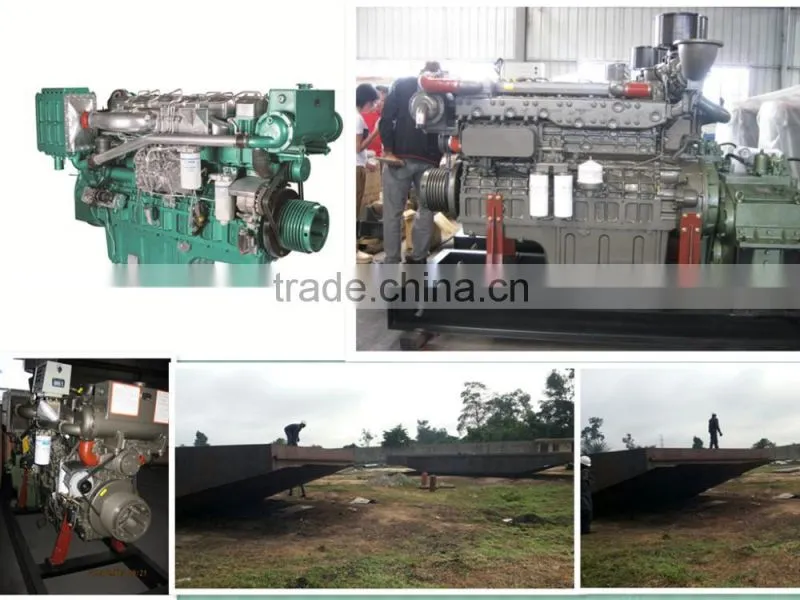

2. Boat use this marine engine
3. Certificate

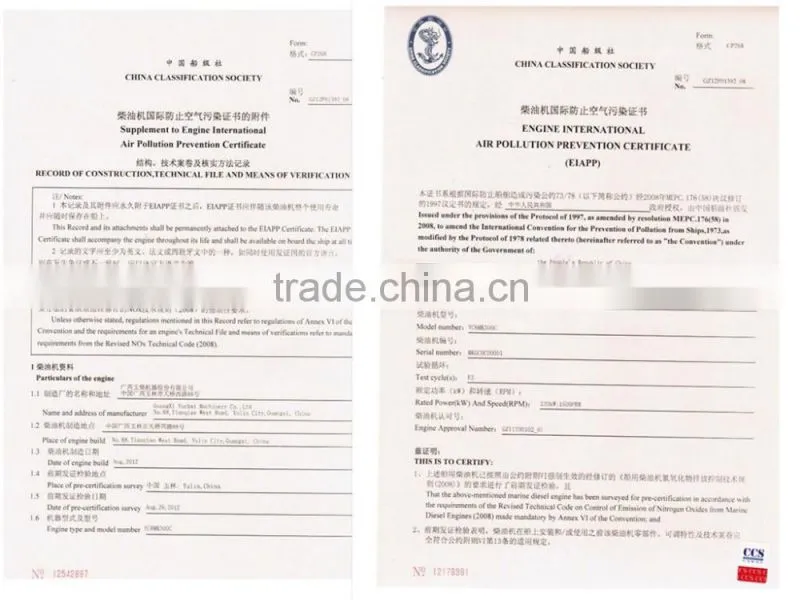

3.IMO& CCS certificate
4. Specification of marine engine 510HP
| Model | YC6T510C | ||
| Type | 6-cylinder,Vertical in line,direct injection, water-cooled and 4-stroke | ||
| Number of cylinders*Bore*Stroke (mm) | 6*145*165 | ||
| Intake way | Turbocharged & intercooled | ||
| Displacement (L) | 16.35 | ||
| Compression ratio | 15.5:1 | ||
| Continuous power/speed (kw/r/min) | 375/1800 | ||
| Min. specific fuel consumption (g/kw*h) | 195 | ||
| Specific oil consumption (g/kw*h) | ≤1 | ||
| Engine oil capacity (L) | 52 | ||
| Crankshaft rotation direction | Counter clock wise (Facing flywheel) | ||
| Start method | Electric | ||
| Net weight (kg) | 1980 | ||
| Overall dimention (L*W*H) (mm) | 2125*1105*1645 | ||
| wooden packing dimension (L*W*H) (mm) | 2430*1260*1955 | ||
| Gross weight (KG) | 2300 | ||
