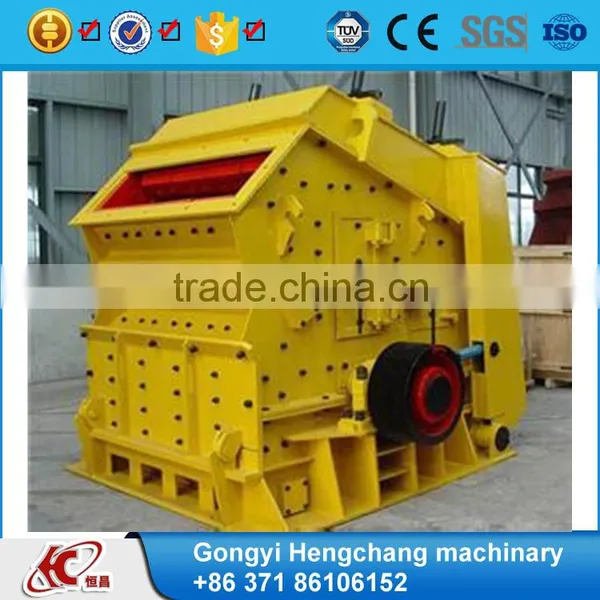

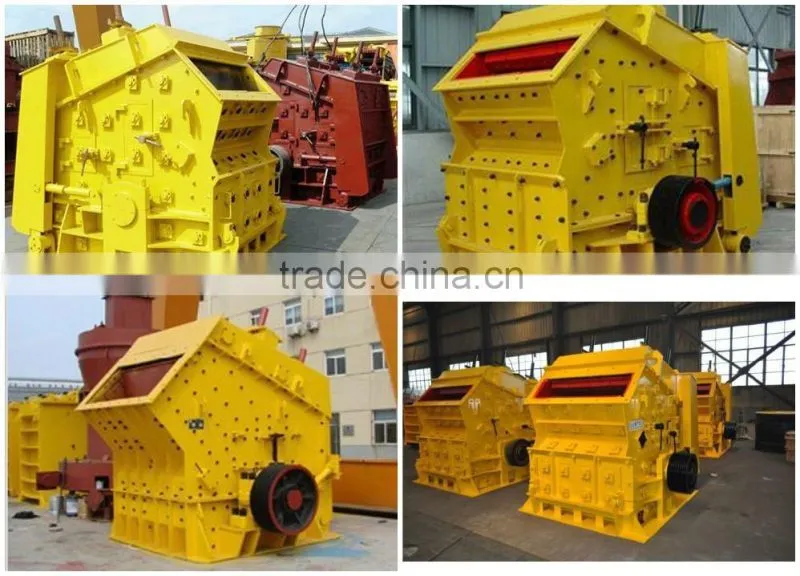

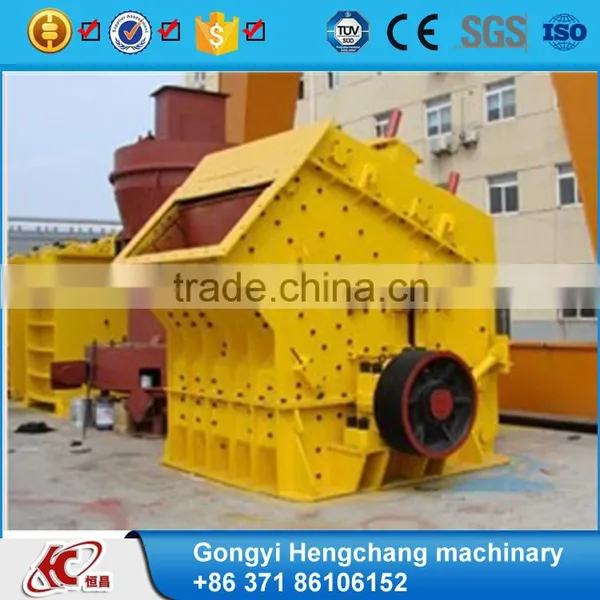

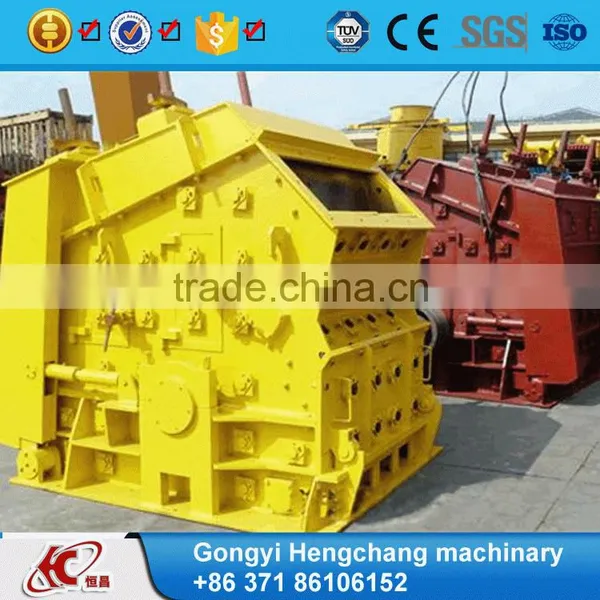

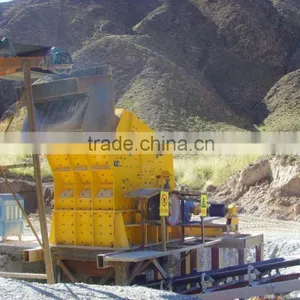

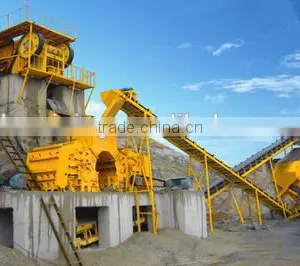

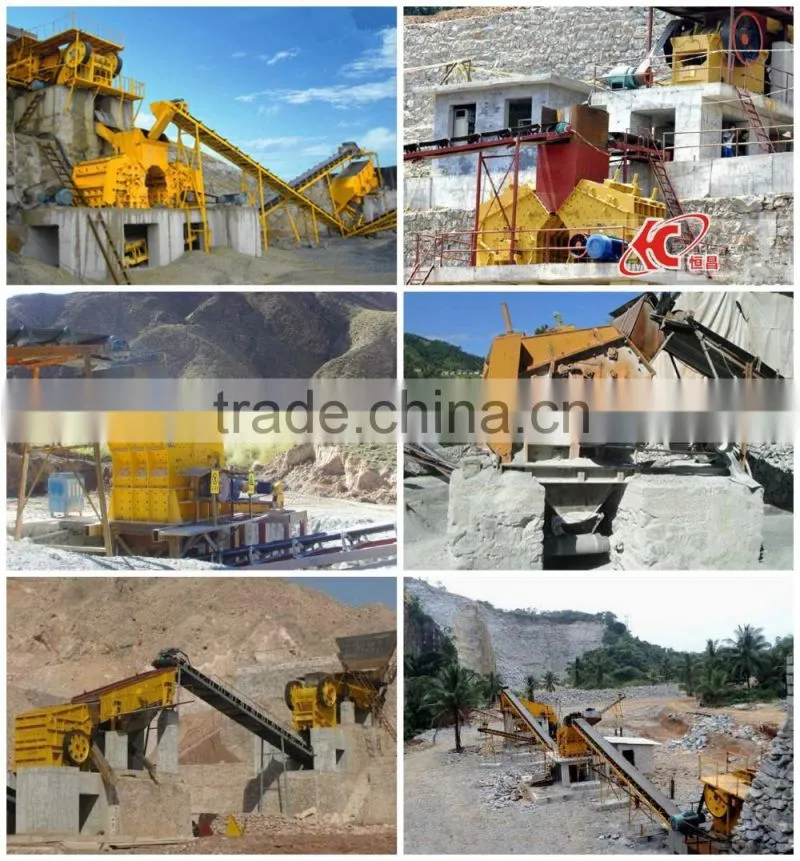

High Efficient fine Impact Crusher/ Limestone crusher
Impact Crusher is widely used to crush the medium hardness brittle materials such as limestone, dolomite, shale, sandstone, coal, asbestos, graphite, and rock salt etc. in building materials, chemicals, coal and other industries. It has the advantages of large crushing ratio, usually 10-20, and maximum 50-60; simplified crushing process, unique structure, easy manufacture, and convenient operating and maintenance.
Limestone Impact crusher's work principle
Limestone crushers crush materials with impact force.

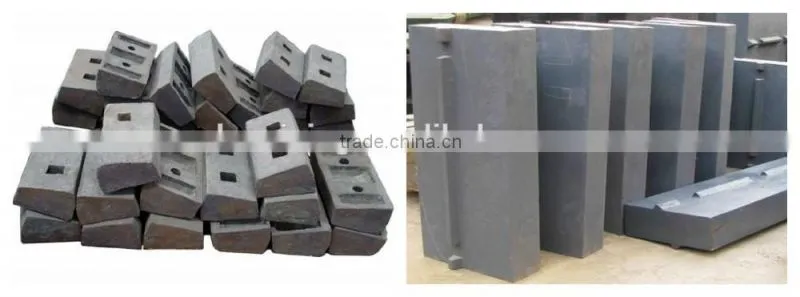

Compare to other crushers, our impact crusher has bigger reduction ratio and can fully use the high speed impactenergy of entire rotor. But because the impact crusher board hammer isextremely easy to wear, it also is restricted in the hard material staveapplication. Impact crusher is usually used to break thick garrulous, garrulousor the limestone, the coal, the calcium carbide, the quartz, the dolomite, thecuring iron ore, the gypsum and the industrial chemicals which are hardfollowing brittle material.
The ideal entering material granularity of our PF type impact crusher is 100-500mm,themost greatly is not surpass the rating. The materail granularity user canajusts the hammer head and the impact board and th gap between component,according to theirs demands.
Technical Parameters of impact crusher/ limestone crusher
|
Model |
Rotor Size (mm) |
Max.Input Size (mm) |
Output size (mm) |
Motor power (kw) |
Capacity (t/h) |
Weight (kg) |
PF—0807 |
850×700 |
300 |
≤25=85% |
30 |
10-25 |
3500 |
PF—1007 |
1000×700 |
300 |
≤25=85% |
37 |
15-30 |
6500 |
PF—1010 |
1000×1050 |
350 |
≤25=85% |
55-75 |
50-80 |
12100 |
PF—1210 |
1250×1050 |
350 |
≤25=85% |
110-132 |
70-120 |
14000 |
PF—1214 |
1250×1400 |
400 |
≤25=85% |
132-160 |
130-180 |
18500 |
PF—1315 |
1300×1500 |
500 |
≤25=85% |
160-200 |
180-260 |
23500 |
PF—1320 |
1320×2000 |
500 |
≤25=85% |
300-350 |
300-350 |
26500 |
Jaw ceusher:
Hammer crusher
Welcome your inquiry!
