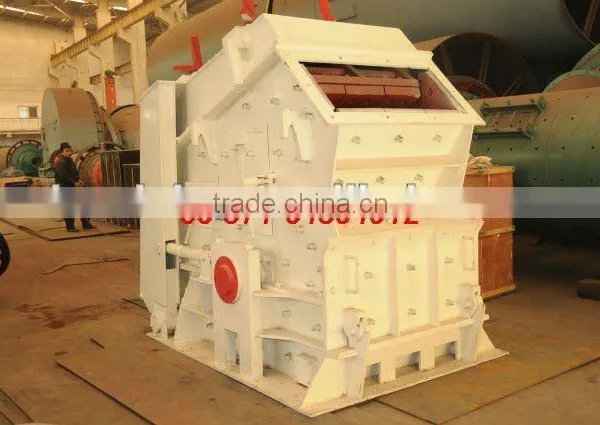

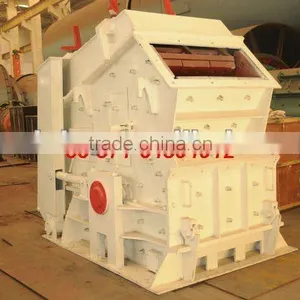

Breaker for chrome ore
Breaker for chrome ore introduction:
Breaker for chrome ore is used in both primary and secondary crushing applications of aggregate, and in recycle crushing of reinforced concrete, asphalt and other construction and debris.
Breaker for chrome ore working principle:
When the breaker works, the motor drives the rotor rotate of the breaker with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers affect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being re-crushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won’t stop till the material are crushed to the required size and then discharged from outlet of the breaker.
Breaker for chrome ore characteristics:
Excellent cubic final products
Special structure
Non-key connection
High chrome hammer
Durability in long time simplicity in operation
Breaker for chrome ore technical parameter:
Models |
Rotor size (mm) |
Feed opening (mm) |
Max. feed size (mm) |
Capacity (t/h) |
Power (kW) |
Weight (t) |
PF1007 |
Φ1000×700 |
400×730 |
300 |
15-30 |
37 |
5.54 |
PF1010 |
Φ1000×1050 |
400×1080 |
350 |
50-80 |
55 |
15 |
PF1210 |
Φ1250×1050 |
400×1080 |
350 |
70-130 |
95 |
15.25 |
PF1214 |
Φ1250×1400 |
400×1430 |
350 |
90-180 |
132 |
19 |
PF1315 |
Φ1320×1500 |
860×1520 |
500 |
120-250 |
200 |
24 |
PF1320 |
Φ1320×2000 |
860×2030 |
500 |
160-350 |
260 |
27 |
Note: This series breaker fits in the hard stone crushing, and the 90% of the output materials size ≤ 40mm
