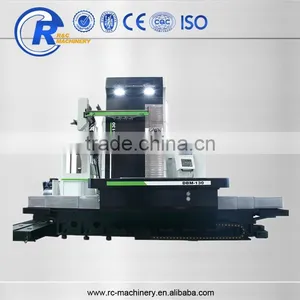

DBM-130B Horizontal Boring Milling Machine CNC ;athe Machine
US$ 13,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Horizontal Milling Boring Machine CNC Lathe Machine DBM 130AUS$ 50,000 - 100,000MOQ: 1 Set -
Universal CNC Boring and Milling Machine China DBM-110B for SaleUS$ 50,000 - 80,000MOQ: 1 Set
-
Horizontal Boring Milling Machine CNC Lathe Machine DBM 110US$ 50,000 - 100,000MOQ: 1 Set
-
CNC Lathe Horizontal Boring Milling Machine DBM 110A High SpeedUS$ 50,000 - 100,000MOQ: 1 Set
-
High Speed CNC Boring and Milling Machine China DBM-110B for SaleUS$ 50,000 - 80,000MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Automatic
Max. Swing Diameter
630 Mm
Place of Origin
Jiangsu, China
Brand Name
R&C
Model Number
DBM-130B
Voltage
380V
Power(W)
15KW
Dimension(L*W*H)
9055*8500*8115
Weight
55000
Certification
CE & ISO
After-sales Service Provided
Engineers available to service machinery overseas
DBM-130B horizontal boring milling machine CNC ;athe machine

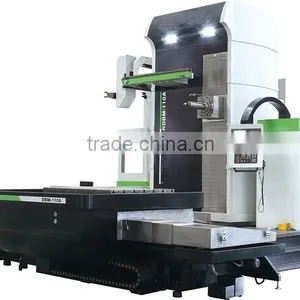

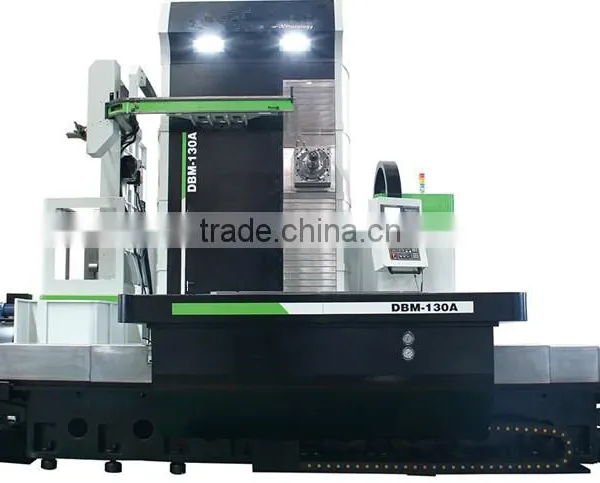

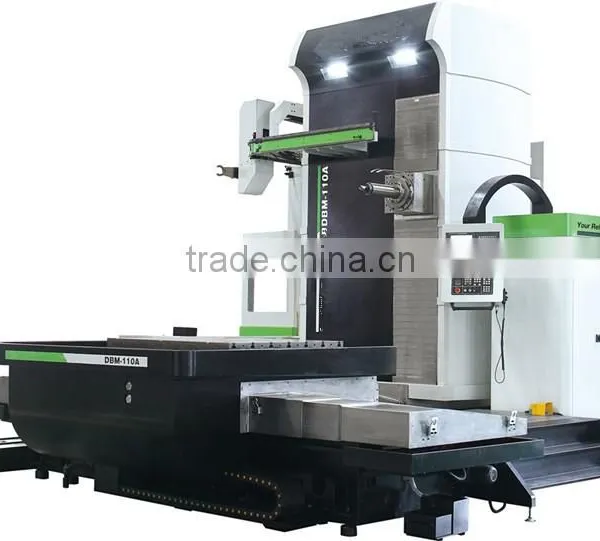

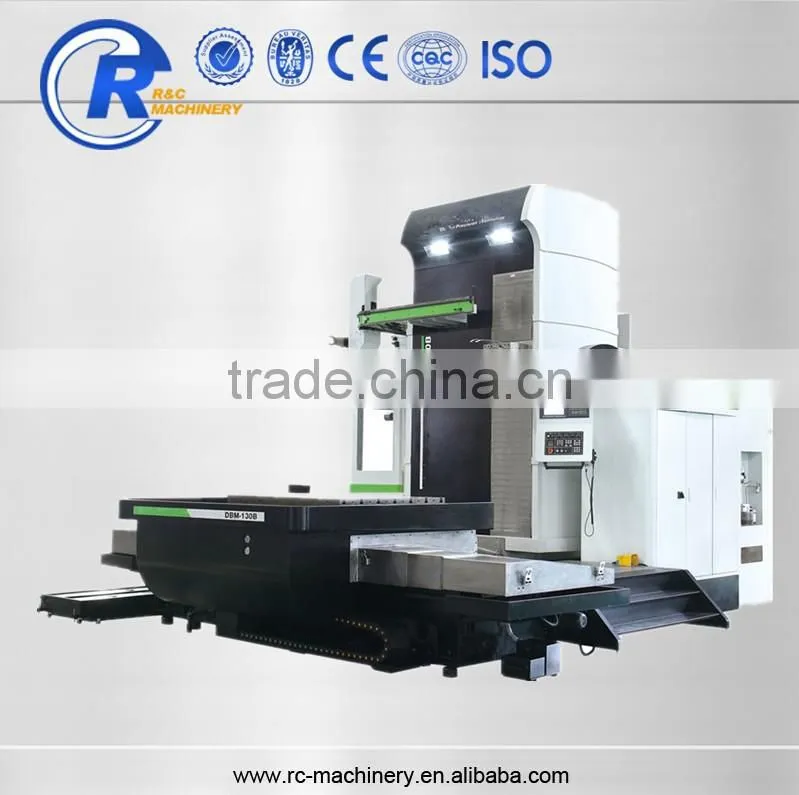

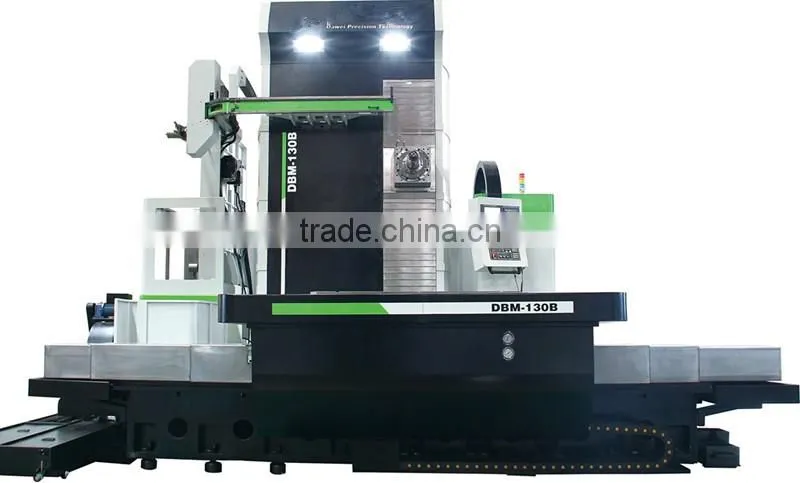

Photos of Mahine
|
|
|

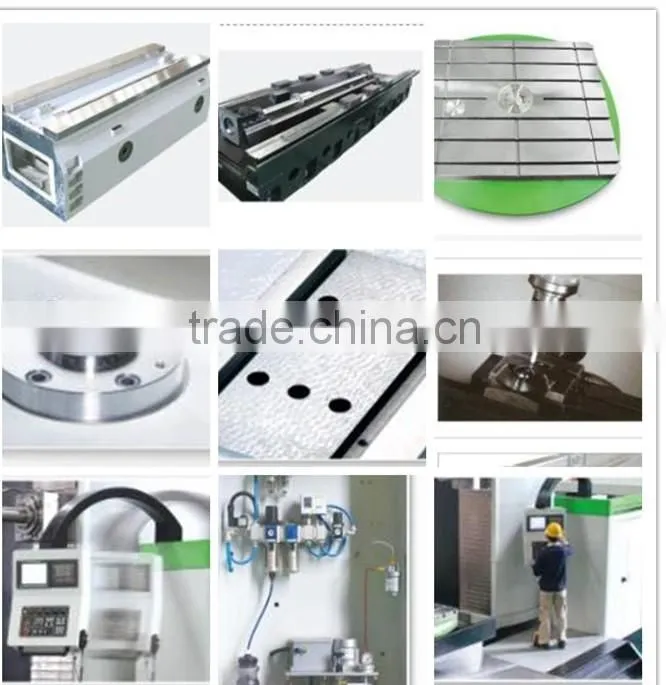

Processing Equipment
|
Main Parameters
| Model | Unit | DBM-130A | DBM-130B |
| X-axis travel (standard) | mm | 3500 | 4500 |
| X-axis travel (optional) | mm | 4500/5500 | 5500 |
| Y-axis travel (standard) | mm | 2600 | 3500 |
| Y-axis travel (optional) | mm | 3500 | |
| Z-axis travel (standard) | mm | 1500 | 2000 |
| Z-axis travel (optional) | mm | 2000 | 2500 |
| W-axis travel (standard) | mm | 700 | 700 |
| Spindle | |||
| Center of spindle worktable surface | mm | 0~2600 | 0~3500 |
| Nose of spindle to work center | mm | 100~2000 | 100~2000 |
| Spinde diameter | mm | 130 | 130 |
| Spindle taper | ISO 50 | ISO 50 | |
| Rotating spindle speed (standard) | rpm/min | 35~3000 | 35~3000 |
| Number of steps of rotating speed of spindle | 2 Steps | 2 Steps | |
| Transmission mode | Gear box | Gear box | |
| Worktable | |||
| Table size (optional) | mm | 1800×2200 (2500×2500) |
2500×2500 |
| Division angle | deg | 0.001° | 0.001° |
| Reference aperture | mm | Φ330H7 | Φ330H7 |
| Max. load on worktable | kg | 15000/20000 | 20000/25000 |
| T-shot | mm | 24H7×150×11 | 24H7×150×15 |
| Division precision | sec | 15" | 15" |
| Repetitive locating precision | sec | 4" | 4" |
| Transmission mode | |||
| X, Y, Z-axis | Direct-drive | Direct-drive | |
| W-axis | Belt-drive | Belt-drive | |
| Y-axis counterweight | Hyd. Type | Hyd. Type | |
| Cutting speed X/Y/Z/W | m/min | 10/10/10/5 | 10/10/10/5 |
| Rapid traverse speed X/Y/Z/W | m/min | 10/10/10/8 | 10/10/10/8 |
| Tool magazine and automatic toolchanger (optional) | |||
| Capacity of tool magazine | 60 | 60 | |
| Tool selecting mode | Absolute | Absolute | |
| Tool changing type | Arm type | Arm type | |
| Tooling | BT/CAT/DIN #50 | BT/CAT/DIN #50 | |
| Max. tool weight | kg | 25 | 25 |
| Max. tool length | mm | 500 | 500 |
| Max. tool diameter (no adjacent tool) | mm | Φ125/250 | Φ125/250 |
| Spindle and motor | |||
| Spindle motor | kw | FANUC 22/30 | FANUC 22/30 |
| Max. torque of spindle | Nm | 3002/4093 | 3002/4093 |
| Precision | |||
| Locating precision of machine tool | mm | ±0.010 | ±0.010 |
| Repetitive locating precision of machine tool | mm | ±0.005 | ±0.005 |
| Others | |||
| Air pressure required | kgf/cm² | 6 | 6 |
| Voltage requirement | KVA | 85 | 95 |
| Tank capacity | L | 315 | 315 |
| Floor area (length×width×height) | mm | 8450×6980×5040 | 9055×8500×8115 |
| Machine weight | kg | 49000 | 55000 |
