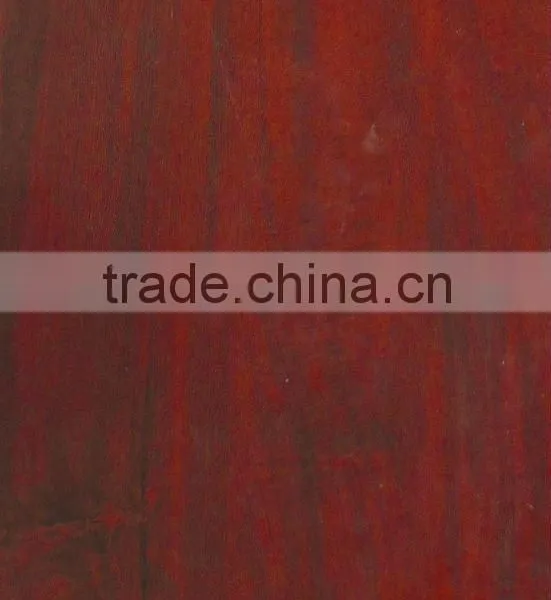

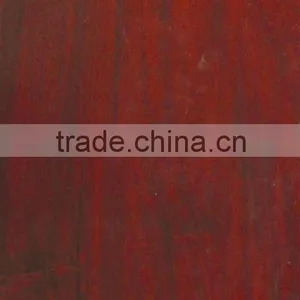

Help CenterPpgi Wood Grain Color Coated Prepainted Galvanised Steel Coils
Related Products
-
Wooden Pattern Color Coated Steel Coil FactoryUS$ 700 - 1,200MOQ: 25 Metric Tons -
Wooden Grain Color Coated Steel Coil FactoryUS$ 700 - 1,200MOQ: 25 Metric Tons
-
Hot Rolled Steel PlateUS$ 750 - 1,100MOQ: 1 Ton
-
Wooden Design Printed Color Coated Steel Coil FactoryUS$ 700 - 1,200MOQ: 25 Metric Tons
-
Wooden Design Printed Color Coated Steel Coil for DecorationUS$ 700 - 1,200MOQ: 25 Metric Tons
Specifications
Manufacturer of PPGI,PPGL,GI,GL,Wooden pattern color coated steel coil,Corrugated steel coil,Composite pannel,Steel structure,etppgi wood grain color coated prepainted galvanised steel coils
Base material: sgcc,dx51d,spcc
Thickness:0.14mm-0.8mm.
Width:600mm-1250mm.
Zinc coating:80g-180g
Color: all RAL colors to your demands.
ID and weight: 508mm-610mm. 3-12ton
PRE-PAINTED GALVANIZED STEEL COIL DETAILED SPECIFICATION
1) AVAILABLE DESIGNATION
Quality |
Q/BQB 440-2003 |
JIS G3312-1994 |
EN 10326-2004 |
ASTM A653-02a |
EN 10327-2004 |
(BASE PLATE) |
|||
Commercial Steel |
TDC51D |
CGCC |
DX51D+Z/AZ |
CS Type A/B/C |
Forming Steel |
(TSt01,TSt02,TSt03) |
CGCD1 |
FS Type A, Type B |
|
Drawing steel |
TDC52D /TDC53D |
- |
DX52D+Z/AZ |
DDS TYPE A/C |
DX53D+Z/AZ | ||||
Structural Steel |
TS280GD(TStE28) |
CGC400 |
S280D+Z/AZ |
SS275 |
TS350GD(TStE34) |
CGC440 |
S350D+Z/AZ |
SS340 Class1 |
2) OUR SPECIFICATION
Available Size:
Manufacturer |
Thickness |
Width |
Length of plate |
Inner diameter of coil |
SHANDONG LONGFA STEEL PLATE |
0.18-1.2mm |
800/914/1000/1200/1219/1250mm |
1000-6000mm |
508mm/610mm |
Coated Mass:
Base plate |
Available Coated Mass(g/m^2)
|
Galvanized Steel |
60,80, 100, 120, 160, 180 |
Galvalume Steel |
50, 70, 150 |
Available Painting:
Category of Painting |
Item |
Code |
|
Polyester |
PE |
||
High-durability polyester |
HDP |
||
Silicon modified polyesters |
SMP |
||
Polyvinylidene fluoride |
PVDF |
||
Easy-Cleaning |
— |
||
Painting Thickness |
Top side: 20±5microns; |
||
Bottom side: 5~7microns. | |||
Color System |
Produce according to RAL Color System or as per buyer’s color sample. |
||
Painting structure |
Top surface |
Bottom surface |
|
Primer coating |
No coating |
1/0 |
|
Primer coating |
Primer coating |
1/1 |
|
Primer coating + Finish coatin |
No coating |
2/0 |
|
Primer coating + Finish coating |
Primer coating or single back coating |
2/1 |
|
Primer coating + Finish coating |
Primer coating + Finish back coating |
2/2 |
|
Note: Protect film available
3) APPLICATION OF OUR PREPAINTED STEEL
Construction |
Outside |
Workshop, agricultural warehouse, residential precast unit, corrugated roof, roller shutter door, rainwater drainage pipe, retailer booth |
Inside |
Door, doorcase, light steel roof structure, folding screen, elevator, stairway, vent gutter |
|
Electrical appliance |
Refrigerator, washer, switch cabinet, instrument cabinet, air conditioning, micro-wave oven, bread maker |
|
Furniture |
Central heating slice, lampshade, chifforobe, desk, bed, locker, bookshelf |
|
Carrying trade |
Exterior decoration of auto and train, clapboard, container, isolation lairage, isolation board |
|
Others |
Writing panel, garbage can, billboard, timekeeper, typewriter, instrument panel, weight sensor, photographic equipment |
|
4)ISO CERTIFICATE
5)PPGI PRODUCE PROCESS
