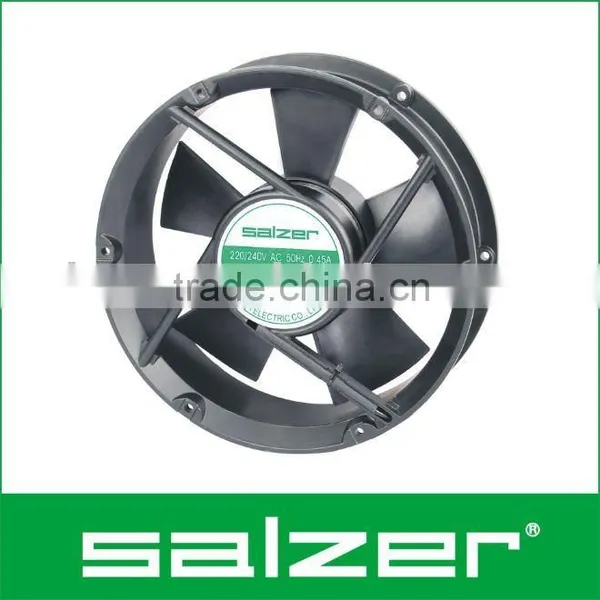

Salzer AC Vantilator Fan DIA.220X60mm TUV, CE Approved
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Other
Blade Material:
Other, Plastic(UL94V-0 70%PBT+30%FRP
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Salzer AC Fan Meta Blade 120X120X38MM TUV, CE ApprovedUS$ 23 - 26MOQ: 1 -
Salzer AC Motor Fan 280X280X80MM TUV, CE ApprovedNegotiableMOQ: 1
-
Salzer AC Metal Outer-Rotor Motor Fan (CE Certificate)NegotiableMOQ: 1
-
Salzer AC Metal External-Rotor Motor Fan Dia.500mmNegotiableMOQ: 1
-
Salzer PD120S-12 Axial Centrifugal FanNegotiableMOQ: 1
Electric Current Type
AC
Mounting
Other
Blade Material
Other, Plastic(UL94V-0 70%PBT+30%FRP
Place of Origin
Zhejiang, China
Brand Name
SALZER
Model Number
PD220B-110, PD220B-220, PD220B-380
Voltage
110VAC, 220VAC,380VAC
Power
65W, 70W
Air Volume
254CFM, 285CFM
Speed
2300RPM, 2500RPM
Certification
CE, Other, CE, TUV
Specifications
Dimension:DIA.220X61mmVoltage: 110VAC or 220VAC or 380VAC
Material: Metal frame and Plastic blade
IP54
Electric motor: Shaded Pole type AC electric motor design
Bearing: Sleeve bearing and Ball bearing
Insulation: Class B
Insulation impedance: The case adds 500V DC to the coils, insulation impedance more then 100M6Ω
Dielectric strength: 0.5mA 1500V/AC min
Safety protection: Imedance protection
Operating temperature: -10 ~ +70°C
Storage temperature:-40 ~ +70°C
