Specifications
silent power generator1.ISO9001:2008 certificate
2.75dB at the distance of 7m
3.AMF&ATS optional
4.1 year warranty
1.silent power generator general specification : |
1) Output range: 20kW (25kVA) up to 1000kW (1,250kVA),
2) Engine model: 4BTA3.9-G, 6BT5.9-G, 6BTA5.9-G, 6BTAA5.9-G, 6CTAA8.3-G, NTA855-G, KTA19-G, KTAA19-G, KT38-G, KTA38-G, KTA50-G
3) Alternator: Stamford, Marathon series Stamford copy
4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start
7) silent generator is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wiresalternating current output
9) Frequency: <3%
10) Frequency at stable state: <0.5%
11) Frequency deviation at instantaneous state: ≤+10%
12) Frequency return time: ≤3s
13) Voltage deviation at stable state: ≤±1%
14) Voltage deviation at instantaneous state: ≤+20%15) Voltage return time: ≤4s16) Voltage modulation: ≤0.3%
1.Main technical data of silent power generator | ||
1.1 |
Model |
JG400GF |
1.2 |
Prime power |
400KW/500KVA |
1.3 |
Prime voltage |
230/400V |
1.4 |
Speed |
1500 rpm |
1.5 |
Weight |
3800kg |
1.6 |
Overall dimension |
3600×1500×2350mm (just for reference) |
2.Main technical data of cummins engine | ||
Cummins engine, 4 stroke. DC start. | ||
2.1 |
Brand |
CUMMINS |
2.2 |
Model |
KTA19-G4 |
2.3 |
Prime power |
448KW/560KVA |
2.4 |
Governor type |
Electronic |
2.5 |
Configuration |
4 cycle , 6 cylinder in line |
2.6 |
Air Intake System |
Tubocharged/ Aftercooled |
2.7 |
Bore/Stroke |
159×159 mm |
2.8 |
Displacement |
19 L |
2.9 |
Starting method |
Electric |
2.10 |
Compression ratio |
14.5:1 |
2.11 |
Fuel consumption |
196g/kw.h |
3. Main technical data of alternator | ||
|
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation. | ||
3.1 |
Brand |
MARATHON |
3.2 |
Model |
MX-400-4 |
3.3 |
Prime power |
400KW/500KVA |
3.4 |
Configuration |
Brushless , self-exciting |
3.5 |
Prime voltage |
230V/400V |
3.6 |
Frequency |
50 HZ |
3.7 |
Power factor |
0.8(lagging) |
3.8 |
Phase/wire |
3 phase 4 wires |
3.9 |
Isolation |
H |
standard configulation of silent power generator |
1.silent generator ,noise level less than 80db

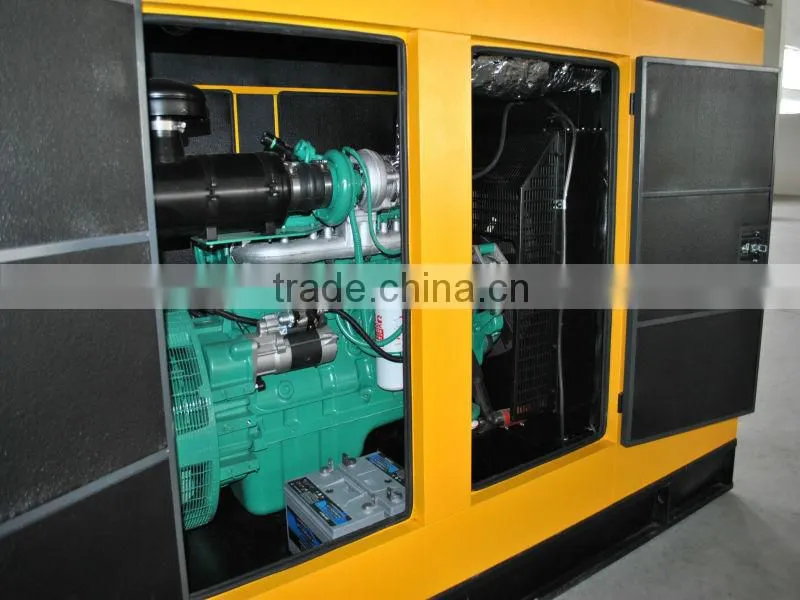

a.cummins engine
2.Marathon alternator

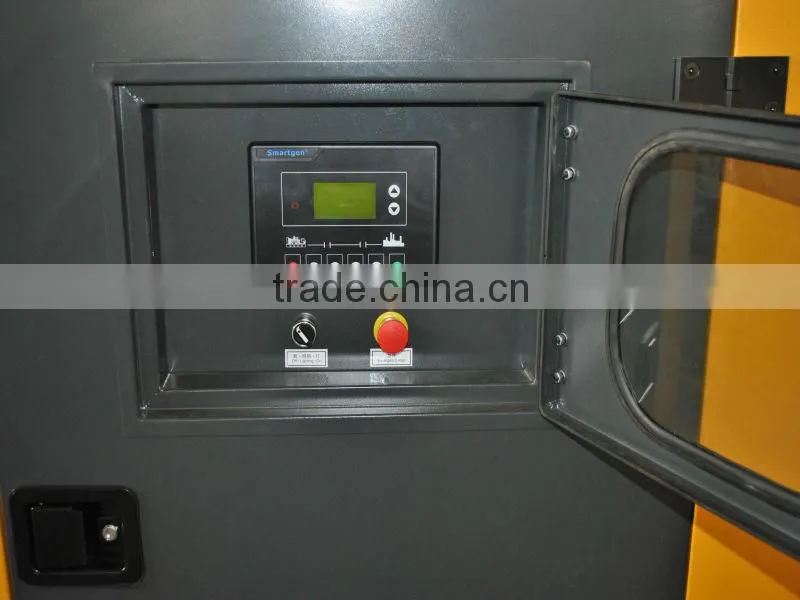

ntrol system

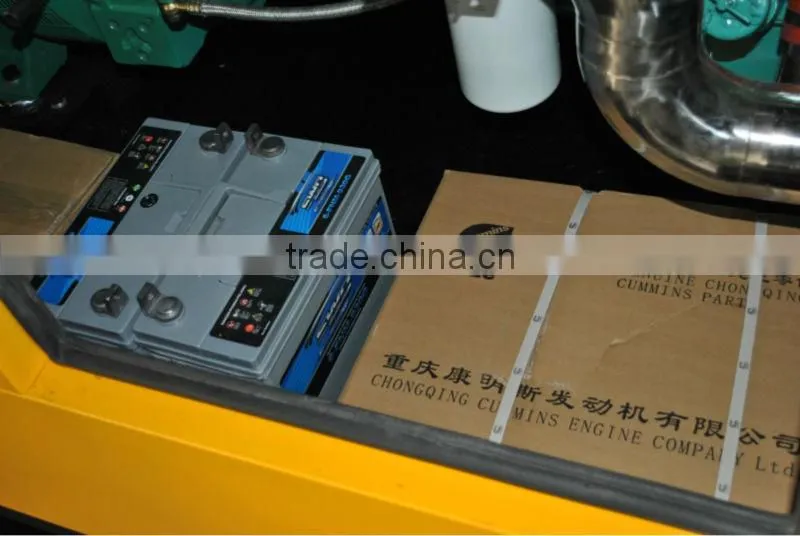

Battery and accessories of silent generator
