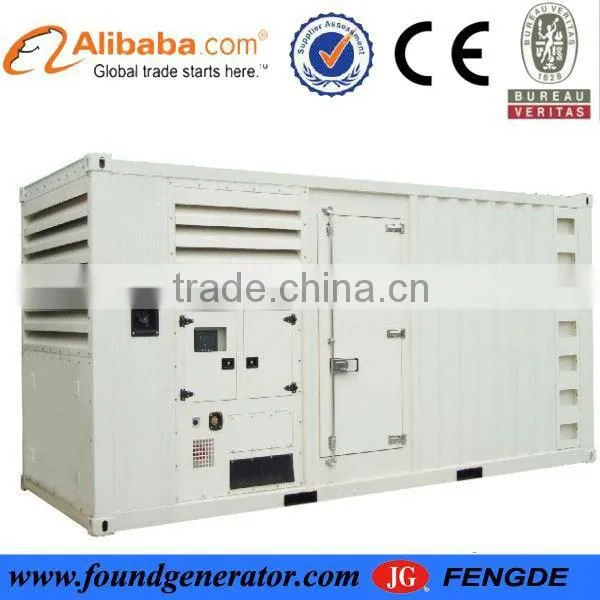

700kva Silent Diesel Powered Generators With CE,ISO,BV,ABS

US$ 2,000 - 50,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Model Number:

JGC560GF

Taizhou Fengde Mechanical & Electrical Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name JG

Model Number JGC560GF

Output Type AC Three Phase

Speed 1500RPM

Frequency 50HZ

Rated Power 560KW

Rated Voltage 400V

Rated Current 448A

Specifications

1.silent diesel powered generators
2.ISO,CE certificate
3.EIAPP(Nox) certificate
4.global service for 12 montth

1. silent diesel powered generators general feature :

1) Output range:560kW (700kVA)

2) Engine model: cummins engine

3) Alternator: Marathon copy

4) Water-cooled

5) 8hrs operation base tank

6) Key start / auto start

7) Sound-proof / weather-proof generator color is optional

We are the top VIP supplier on Alibaba,

authorized by famous certification authority-BV ( Bureau Veritas ).

2. 560kw (750kva) Diesel Generator Technical Data:

Engine Model	KTA38-G2
Configuration	4 cycle , 12 cylinders in "V"
Aspiration	Turbocharged after water-cooled
Bore×Stroke	159 x159mm
Rated speed	1500rpm
Displacement (Liter)	38.0L
Compression Ratio	14.5:1
Prime Power	664KW
Standby Power	731KW
Speed Governor	electrical
Cooling System	Water-cooled , 40°C Radiator As Standard, 50°C Is Optional.
Speed Stability (%)	≤5%
Fuel Consumption at 100% Load	196g/kw.h
Starter Motor	DC24V,

Alternator model	MX-600-4
Alternator manufacturer	Marathon
Exciter type	Single bearing, Brushless, Self-excited
Rated output prime power	600 kW
Rated speed	1500 RPM
Rated frequency	50 Hz
Phase	3
Rated voltage	400 V(Available with customer requirements)
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation grade	H
Protection grade	IP23
