Specifications
1.60kva silent genset2.CE,ISO certificate
3.75dB at the distance of 7 meters
4.global service for 12 month
1. 60kva silent genset general feature:
1) Output range: 50kW (60kVA)
2) Engine model: Cummins
3) Alternator: Stamford, Marathon series Stamford copy
4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start
7) silent generator is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wiresalternating current output
We are the top VIP supplier on Alibaba ,
authorized by famous certification authority-BV ( Bureau Veritas )!!!
CE approved low price sale 4BTA3.9-G2 engine powered 60kva silent genset
2.Diesel generating parameter:
1.Main technical data of soundproof gensets | ||
1.1 |
Model |
JGC50GF |
1.2 |
Prime power |
50KW/60KVA |
1.3 |
Prime voltage |
230/400V |
1.4 |
Speed |
1500 rpm |
1.5 |
Weight |
1000kg |
1.6 |
Overall dimension |
1670×850×1270mm (just for reference) |
2.Main technical data of engine | ||
Cummins engine, 4 stroke. DC start. | ||
2.1 |
Brand |
CUMMINS |
2.2 |
Model |
4BTA3.9-G2 |
2.3 |
Prime power |
50KW |
2.4 |
Governor type |
Electronic |
2.5 |
Configuration |
4 cycle , 6 cylinder in line |
2.6 |
Air Intake System |
Tubocharged/After cooler |
2.7 |
Bore/Stroke |
102×120mm |
2.8 |
Displacement |
3.9 L |
2.9 |
Starting method |
Electric |
2.10 |
Compression ratio |
15:1 |
2.11 |
Fuel consumption |
201g/kw.h |
3. Main technical data of alternator | ||
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation. | ||
3.1 |
Brand |
MARATHON |
3.2 |
Model |
MP-50-4 |
3.3 |
Prime power |
50KW |
3.4 |
Configuration |
Brushless , self-exciting |
3.5 |
Prime voltage |
230V/400V |
3.6 |
Frequency |
50 HZ |
3.7 |
Power factor |
0.8(lagging) |
3.8 |
Phase/wire |
3 phase 4 wires |
3.9 |
Isolation |
H |
3.Warranty:
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.
4.Certificate & Document:
1) Alternator operation and maintenance manual 1PC
2)Engine operation and maintenance manual 1PC
3)Generator Overall drawings of the set 1PC
4)Electrinic system drawing 1PC
5)Bench test 1PC
6)Packing list 1PC

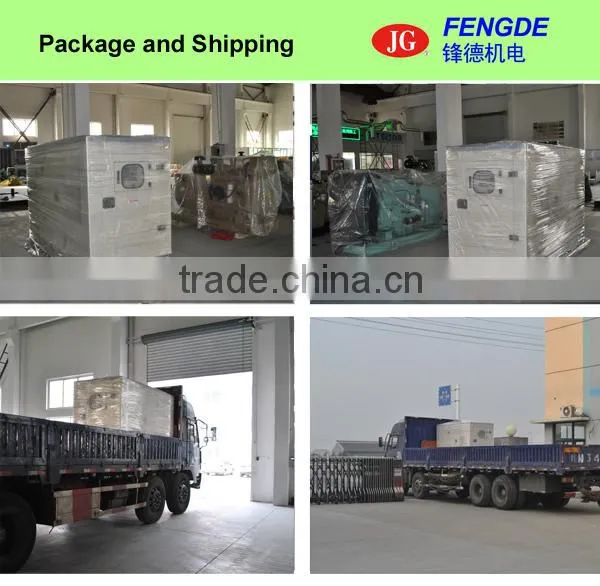

5.picture of control system and factory:
