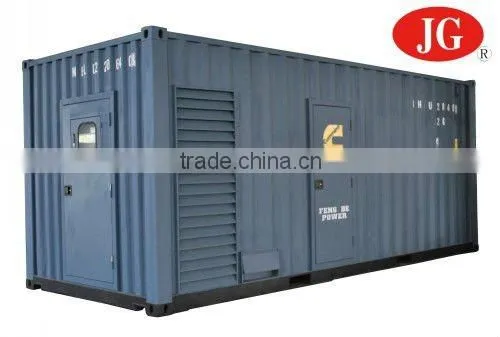

Help CenterCE Approved 500KW Generator Silent Type
Related Products
-
China Supplier Diesel Generator,silent Electric Generator 240vUS$ 9,500 - 25,000MOQ: 1 Set -
China Supplier Sale 200kva Silent Diesel Generator SetUS$ 9,500 - 25,000MOQ: 1 Set
-
Famous Manufacturer 50kw Silent Diesel GeneratorUS$ 5,500 - 25,000MOQ: 1 Set
-
CE Approved 50kw Silent Deutz Diesel GeneratorUS$ 9,500 - 25,000MOQ: 1 Set
-
Top Supplier Powered 400kva Silent Diesel GeneratorUS$ 9,500 - 25,000MOQ: 1 Set
Specifications
1.generator silent type2.global service for 12 month
3.ISO,CE certificate
4.reliable performance
1.generator silent type general feature:
1) Output range: 500kW (625kVA)
2) Engine model: Cummins
3) Alternator: Stamford, Marathon series Stamford copy
4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start
7) silent generator is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wiresalternating current output
9) Frequency: <3%
10) Frequency at stable state: <0.5%
11) Frequency deviation at instantaneous state: ≤+10%
12) Frequency return time: ≤3s
13) Voltage deviation at stable state: ≤±1%
14) Voltage deviation at instantaneous state: ≤+20%15) Voltage return time: ≤4s16) Voltage modulation: ≤0.3%
We are the top VIP supplier on Alibaba ,
authorized by famous certification authority-BV ( Bureau Veritas ).
2.Diesel generator parameter:
1.Main technical data of gensets | ||
1.1 |
Model |
JG500GF |
1.2 |
Prime power |
500KW/625KVA |
1.3 |
Prime voltage |
230/400V |
1.4 |
Speed |
1500 rpm |
1.5 |
Weight |
7300kg |
1.6 |
Overall dimension |
4800×1800×2350mm (just for reference) |
2.Main technical data of engine | ||
Cummins engine, 4 stroke. DC start. | ||
2.1 |
Brand |
CUMMINS |
2.2 |
Model |
KTAA19-G6A |
2.3 |
Standby power |
610KW/762.5KVA |
2.4 |
Governor type |
Electronic |
2.5 |
Configuration |
4 cycle , 12 cylinder in V |
2.6 |
Air Intake System |
Tubocharged/ Air and aircooled |
2.7 |
Bore/Stroke |
159×159 mm |
2.8 |
Displacement |
19.0 L |
2.9 |
Starting method |
Electric |
2.10 |
Compression ratio |
14.5:1 |
2.11 |
Fuel consumption |
196g/kw.h |
3. Main technical data of alternator | ||
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation. | ||
3.1 |
Brand |
MARATHON |
3.2 |
Model |
MX-500-4 |
3.3 |
Prime power |
500KW/625KVA |
3.4 |
Configuration |
Brushless , self-exciting |
3.5 |
Prime voltage |
230V/400V |
3.6 |
Frequency |
50 HZ |
3.7 |
Power factor |
0.8(lagging) |
3.8 |
Phase/wire |
3 phase 4 wires |
3.9 |
Isolation |
H |
3.Warranty:
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.
4.Certificate & Document:
1) Alternator operation and maintenance manual 1PC
2)Engine operation and maintenance manual 1PC
3)Generator Overall drawings of the set 1PC
4)Electrinic system drawing 1PC
5)Bench test 1PC
6)Packing list 1PC
5.picture of control system and factory:

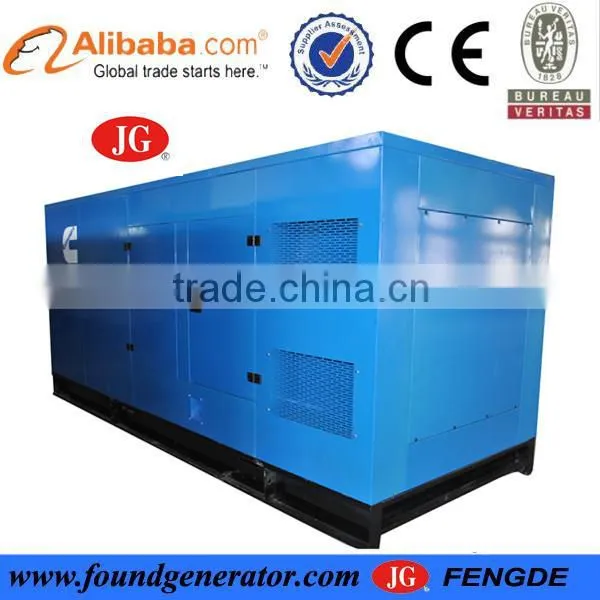

silent type for reference
