We are the leading manufacturer for land and marine generator.
CE, ISO9001:2008 approved
Product Description

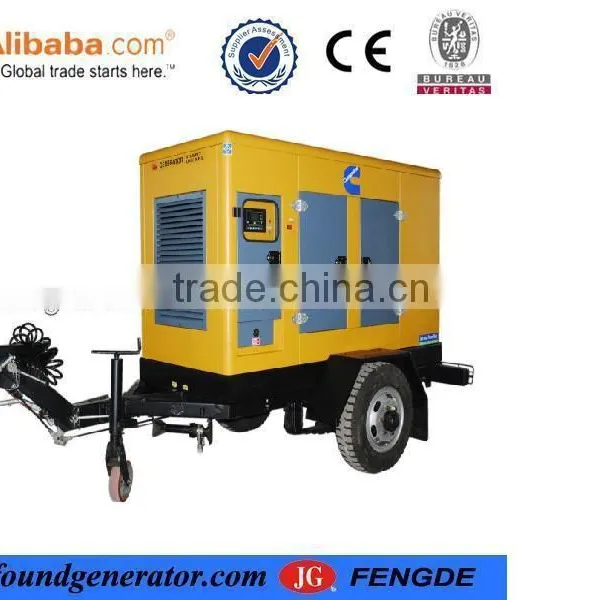

Hot sale trailer diesel generator,diesel generator for sale
1.silent & trailer generator
2.global service for 12 month
3.ISO,CE certificate
4.EIAPP(Nox) certificate
1. silent trailer generator general feature:
Besides all performances of Silent Type Gen Sets, JG Silent Type Gen Sets with Trailer has
Advantages as follows:
Equipped armor plate spring of structure poised;
The trailer adopt the adjustable- height bolted towed rack, which is suitable for different height trailer;
Have mechanical underprops at each corner of the trailer. Inertial traveling brake, station brake & disengage emergency brake between trailer and tractor
With turning lamp, brake indicator light and standard BNC connector plugs for back lamp.
2. engine parameter:
Engine Model |
6LTAA8.9-G2 |
Configuration |
4 cycle , 6 cylinders in line |
Aspiration |
Turbocharged after air-air cooled |
Bore×Stroke |
114 x 144 mm |
Rated speed |
1500rpm |
Displacement |
8.9L |
Compression Ratio |
17.0:1 |
Prime Power |
220KW |
Speed Governor |
electrical |
Cooling System |
Water-cooled , 40°C Radiator As Standard, 50°C Is Optional. |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
197g/kw.h |
Starter Motor |
DC24V |
3.Stamford alternator technical data:
Alternator model |
MP-200-4 |
Alternator manufacturer |
Marathon |
Exciter type |
Single bearing, Brushless, Self-excited |
Rated output prime power |
200kW |
Rated speed |
1500 RPM |
Rated frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V(Available with customer requirements) |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation grade |
H |
Protection grade |
IP23 |
3.Warranty:
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.

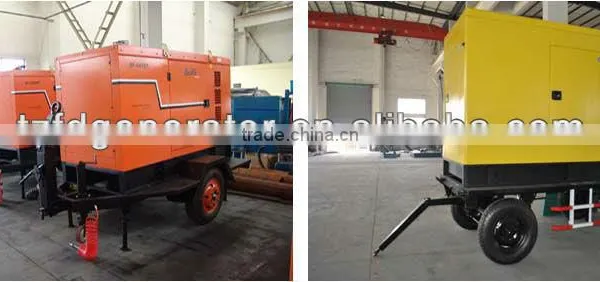

Photos of trailer type
