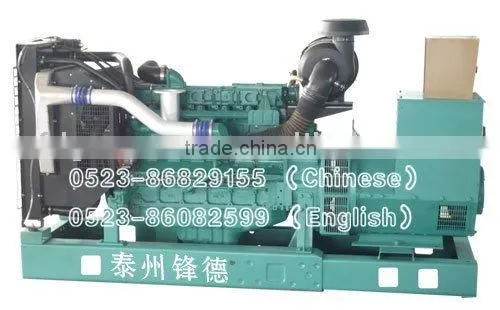

100KW 50HZ Volvo Diesel Generator Set With CE Approved

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Model Number:

JG104GF

Taizhou Fengde Mechanical & Electrical Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name JG

Model Number JG104GF

Output Type AC Three Phase

Speed 1500RPM

Frequency 50HZ

Rated Power 104KW

Rated Voltage 230/400V

Rated Current 187A

Specifications

1.diesel generator adopt volvo engine
2.DC24V start motor
oling method :water cool

1.Main technical data of gensets
1.1	Model	JG104GF
1.2	Prime power	104KW
1.3	Prime voltage	230/400V
1.4	Speed	1500 rpm
1.5	Weight	1400kg
1.6	Overall dimension	2350×750×1450mm (just for reference)
2.Main technical data of engine
Volvo engine, 4 stroke. DC start.
2.1	Brand	VOLVO
2.2	Model	TAD532GE
2.3	Prime/Standby power	112/125 KW
2.4	Governor type	Electronic
2.5	Configuration	4 cycle , 4 cylinder in line
2.6	Cooling method	By radiator
2.7	Bore/Stroke	108×130 mm
2.8	Displacement	4.76 L
2.9	Starting method	Electric
2.10	Fuel consumption	214g/kw.h
3. Main technical data of alternator
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation.
3.1	Brand	MARATHON
3.2	Model	MP-104-4
3.3	Prime power	104KW
3.4	Configuration	Brushless , self-exciting
3.5	Prime voltage	230V/400V
3.6	Frequency	50 HZ
3.7	Power factor	0.8(lagging)
3.8	Phase/wire	3 phase 4 wires
3.9	Isolation	H
