Help CenterScrew & Barrel for Injection Molding Machine
Related Products
Specifications
We have a 17 year plus record in this industry from which we have built up significant data, soundly based on experience and resProducts:
1.Conical(paeallel) twin screw& barrel
Production scope:
Conical twin screw and double holes cylinder Φ35/70~Φ92/178Parallel twin screw and double holes cylinderΦ35/35~Φ250/250
CINCINNATI, BATTENFELD, KRUSSMAFFEI, BAUSANO and AMUT model spares.
2.Screw & barrel for single screw extruder Production scope: Screw diameter Φ20~Φ500 Maximum screw length 10,000mm Barrel inner bore diameter Φ500mm

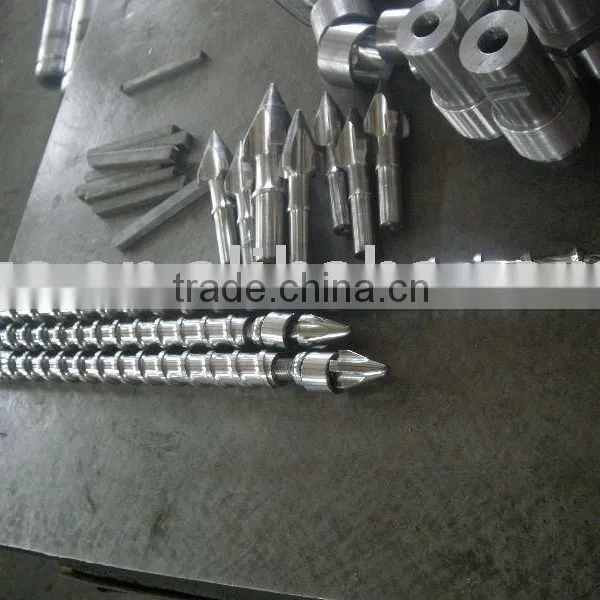

Screw & barrel for injection molding machine
Production scope: Screw diameter Φ20~Φ500 Maximum screw length 10,000mm Barrel inner bore diameter Φ500mm
Assembly parts of screw & barrel
Technical data:
Depth of Nitrated Layer: 0.5-0.8mm Hardness of nitration: 900-1020Hv Fragility of nitration: Less than grade 1 Surface roughness: Ra 0.4um Hardness of Cr-coating Layer: ≥950Hv Thickness of Cr-coated Layer: 0.03-0.08mm Hardness of Bimetallic Layer: HRC55-72 Depth of Bimetallic Layer: >2mm
