Specifications
We can manufacture all types of screws and barrels according to clients' requirement.Specifications

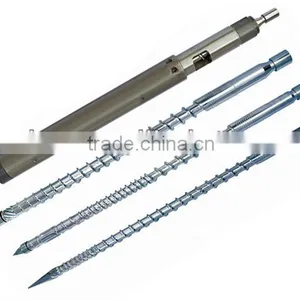

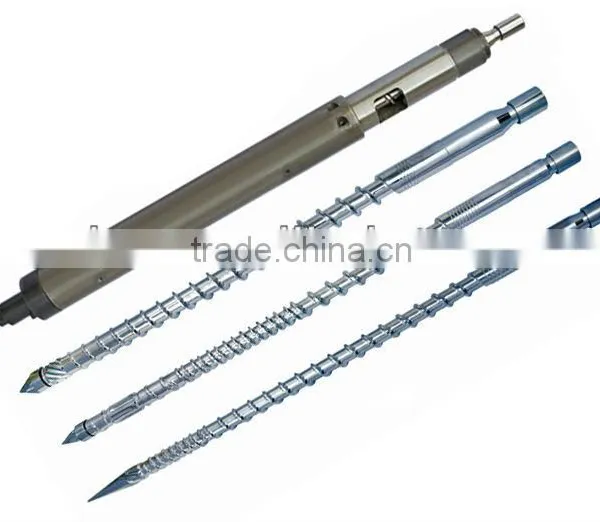

Injection screw and barrel
material: high quality alloy steel
1)38CrMoALA 2)42CrMo 3)9Cr18MoV 4)CW6Mo5 5)SKD61
6)SKD11
Specification:
|
Technical Index
|
|
Power of locknut:100KN~35000KN
|
|
capacity of injection:30g~30000g,can be matched with corresponded screw heads, distributors,barrels according to customer's requirement
|
|
Depth of Nitrated Layer: 0.5-0.8mm
|
|
Hardness of nitration:950-1020Hv
|
|
Fragility of nitration: Less than grade 1
|
|
Surface roughness: Ra 0.4um
|
|
Surface Hardness of Nitrated Cr coating Layer:≥950Hv
|
|
Hardness of Bimetallic Layer: HRC55°-72°
|
|
Thickness of Cr-coating Layer: 0.03-0.08mm
|
|
Depth of Bimetallic Layer :2.5mm-4mm
|
|
Technology: Heat-treatment,Nitriding treatment,Electroplated hard-chrome finish, High-frequency quenching,Bimetallic-alloy coating,Vacuum quenching
