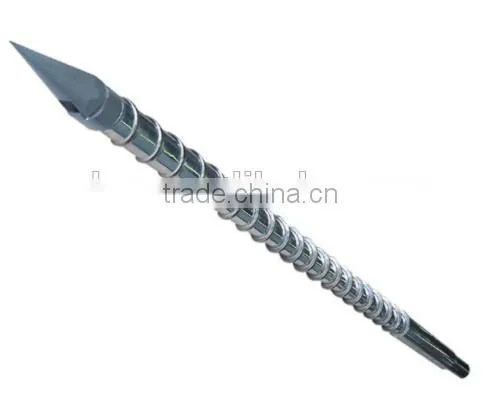

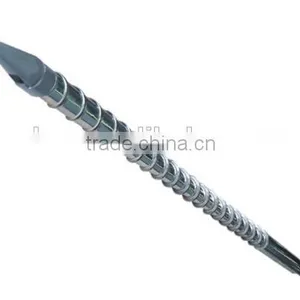

Help CenterBimetallic Single Screw and Barrel for Plastic Injection Molding Machine
Related Products
-
pp High Speed Single Screw and Barrel for Plastic Injection Molding MachineUS$ 100 - 10,000MOQ: 1 Set -
Single Screw and Barrel for Plastic Injection Molding MachineUS$ 100 - 10,000MOQ: 1 Set
-
Single Screw and Barrel for Plastic Injection Mould MachineUS$ 100 - 10,000MOQ: 1 Set
-
Single Injection Screw and BarrelUS$ 100 - 10,000MOQ: 1 Set
-
PET Screw and Barrel for Injection Molding Machine HaitianUS$ 100 - 10,000MOQ: 1 Set
Specifications
bimetallic single screw and barrel for injection molding machineWe can make any specification of extruder screw barrel and injection screw barrel for Haitian, Demag, Engle, Nigro bossi, Arburg, NPM, Cincinnati Battenfeld, Amut,
BOY, Husky, Fanuc, billion, Sumitomo, Nippon Steel,
Toshiba, Nissei, Mitsubishi and etc.
We also can supply all types of screw and barrel according to your different requirements.
| |||
Diameter |
Φ15mm-Φ350mm |
Designing |
Screw structure and compression ratio can be designed according to different products &different mixtrues. |
Materials |
38CrMoAlA (JIS SACM645) SKD61 |
Application |
pvc wpc profile, plate & sheet |
Nitride Case Depth |
0.5mm-0.8mm |
Technology |
1)Longer time Gas Nitriding treatment 2)special anti-wear & abrasion alloy (bimetallic) 3)tungsten carbide 4)cobalt base alloy 5)stainless steel 6)Gh113 nickel based alloy |
Nitride Hardness |
950-1020HV |
Packing |
Wrapped up by film in wooden |
Nitride Brittleness |
≤Grade One |
Payment Term |
T/T , L/C |
Surface Roughness |
Ra0.4um |
Delivery Term |
25 working days |
Screw Straightness |
0.015mm |
Port Departure |
Shanghai/Ningbo |
Alloy Hardness |
HRC58-62 |
Min. Order |
1 set |
Alloy Depth |
0.5mm-0.8mm |
Common Nitrided:1years Bimetallic: much longer lifetime. |
|
Guarantee | |||
