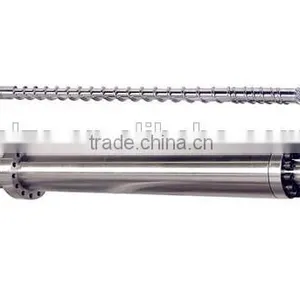

Help CenterBimetallic Screw and Barrel for Injection Molding Machine
Related Products
-
Screw and Barrel for Haitian Injection Molding MachineUS$ 100 - 10,000MOQ: 1 Set -
Screw Barrel for Injection Molding MachineUS$ 100 - 10,000MOQ: 1 Set
-
Screw and Barrel for Injection Molding Machine pp Pvc UpvcUS$ 100 - 10,000MOQ: 1 Set
-
Toyo Screw and Barrel for Injection Molding MachineUS$ 100 - 10,000MOQ: 1 Set
-
Mitsubishi Plastic Machine Screw and Barrel for Injection Molding MachineUS$ 100 - 10,000MOQ: 1 Set
We can make any specification of extruder screw barrel and injection screw barrel for Haitian, Demag, Engle, Nigro bossi, Arburg, NPM, Cincinnati Battenfeld, Amut,
BOY, Husky, Fanuc, billion, Sumitomo, Nippon Steel,
Toshiba, Nissei, Mitsubishi and etc.
We also can supply all types of screw and barrel according to your different requirements.

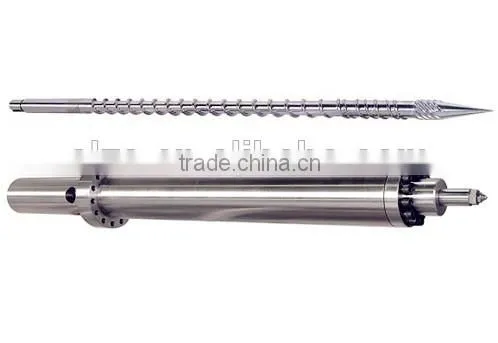

bimetallic screw and barrel for injection molding machine
Technical Parameter | |
Nitride Case Depth |
0.5mm-0.8mm |
Nitride Hardness |
950-1050HV |
Nitride Brittleness |
≤Grade One |
Surface Roughness |
Ra0.4um |
Screw Straightness |
0.015mm |
Alloy Hardness |
HRC58-65 |
Alloy Depth |
0.8mm-3.5mm |
Chromium Coating Thickness |
0.025~0.10mm |
Material & Technologies | |
SKD61(H13) |
Quality 38CrMoAIA (41CrAIMo7) |
Gr12MoV |
Quality Duplex Stainless Steel |
42CrMo |
Quality Powder Metallurgy Materials |
40Cr |
Hard Metal Cold/Thermal Spraying Technology |
Zinc 3# Steel |
Advanced Nitriding Technology |
Anti-corrosion and Wear-resisting Duplex Metal Spraying Technology | |
Technological Process | |
1.Rough Machining |
2.Quenching and Tempering |
3.Finish Machining |
4.Nitriding |
5 Sprey conating Bimetallic |
6.Screw polishing |
