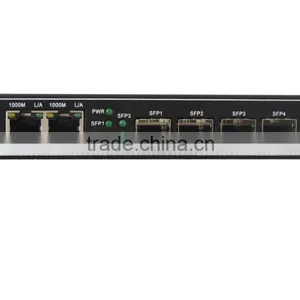

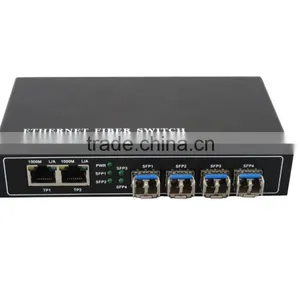

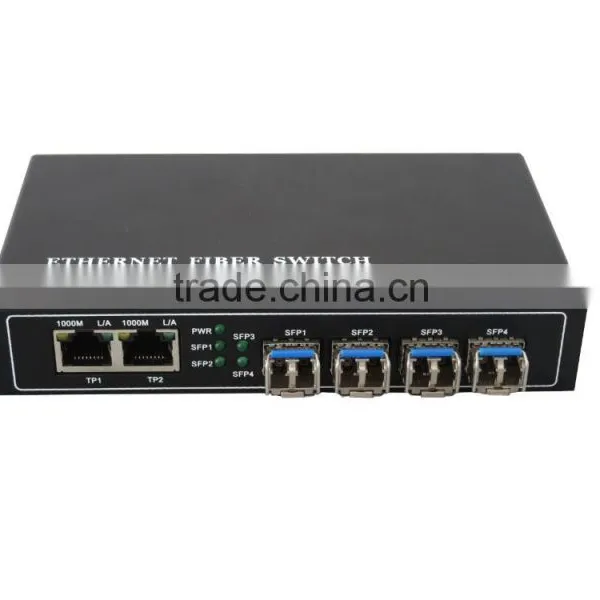

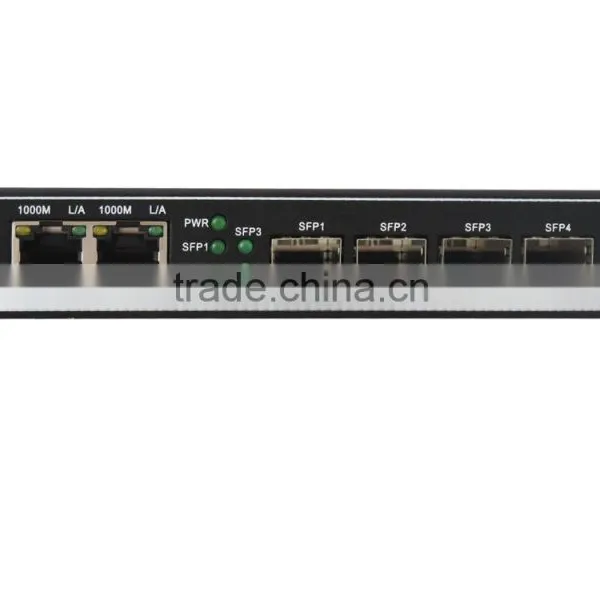

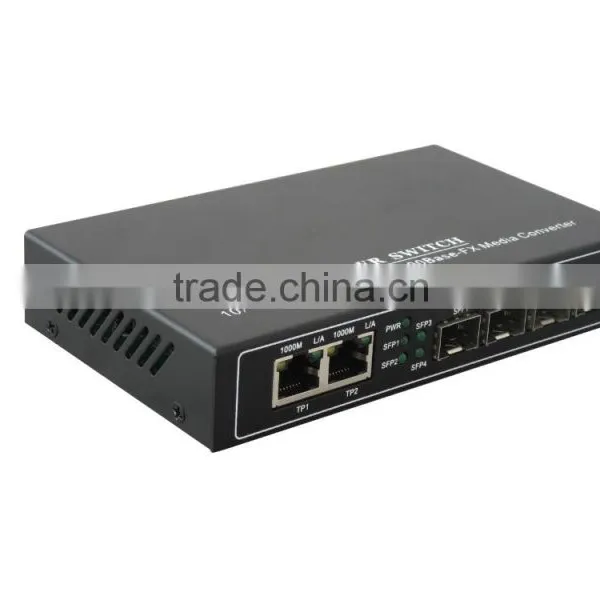

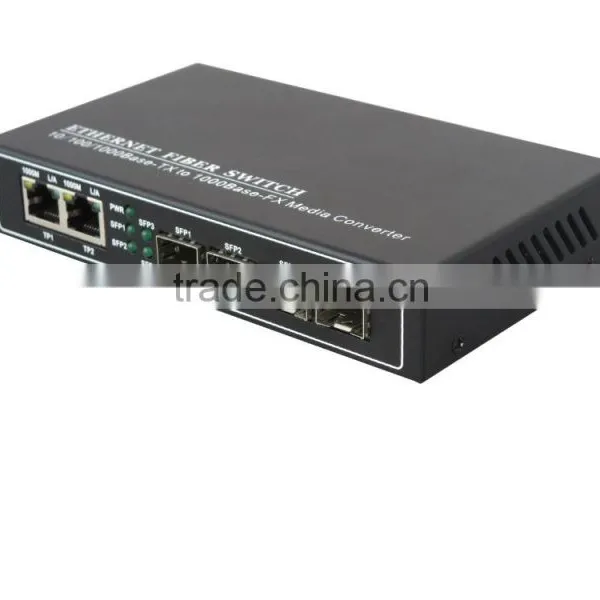

4 optical 2 utp Ethernet Media Converter Fiber Switch
Description

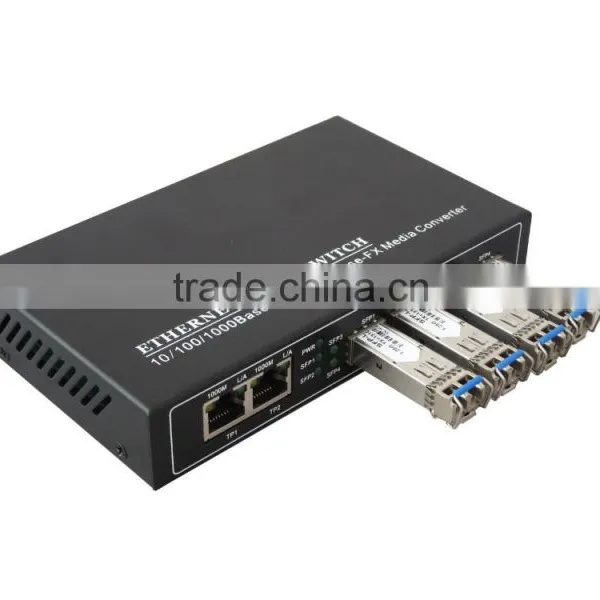

TBC3742 Gigabit Ethernet Switch with two10/100/1000M UTP port sand four fiber ports Or four 1000M SFP sockets(The end users can usedifferent SFP Module according to his requirement,for example:1000Base-T,1000Base-SX,1000Base-LX etc.The product is possessed of stable performance,excellent quality and reasonable price because of adopting latest IC from USA and high quality of transceivers.It is applicable to use in small patterns of Optical Fiber Ethernet.
Specifications
Standard Protocol |
IEEE 802.3 10Base-T |
|||
IEEE 802.3u 100Base-TX | ||||
IEEE 802.3ab 1000Base-T | ||||
IEEE802.3z 1000Base-SX/LX | ||||
Band Width |
RJ 45 Port: 10/100/1000Mbps |
Optical Port: 1.25Gbps |
||
Operation Mode |
Full /Half duplex mode |
|||
Connectors |
UTP: 2 RJ-45 |
Fiber connector: SC/LC |
||
Operation Mode |
Full /Half duplex mode |
|||

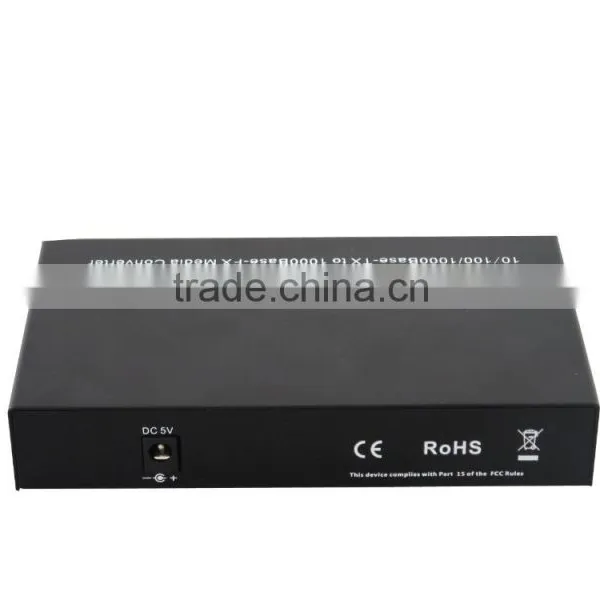

Power Supply |
External |
AC110-250V/50Hz |
||
DC 5V 2A | ||||
Power Consumption |
≤5W |
|||
Environmental Parameters |
Work Temperature |
0℃~50℃ (32 °F ~ 122 °F ) |
||
Storage Temperature |
-40℃~70℃ (-40 °F ~ 158 °F ) |
|||
Humidity |
5%~90% non-condensing |
|||
TP Cable |
Cat5 UTP cable (the max distance up to 100m) |
|||
Fiber Cable |
8. 3/125, 8. 7/125, 9/125, 10/125μm(the max distance up to 20 -120km) |
|||
50/125, 62. 5/125μm(the max distance up to 2km or 5km) | ||||
MTBF (Hours) |
>50000 |
|||
Dimensions(mm) |
External power supply |
155mm*90mm*27mm |
||
Gross Weight |
External power supply |
0.5kg |
||
Emission/Safety |
FCC Part 15 , Class A, RoHS and CE Mark |
|||
