Sfp Transceiver 1000base-lx Sfp 1310nm 10km

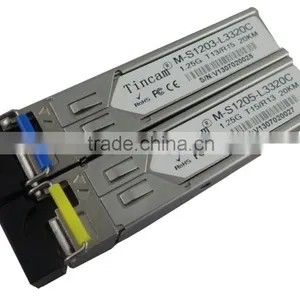

Sfp Transceiver 1000base-lx Sfp 1310nm 10km thumbnail-1
Sfp Transceiver 1000base-lx Sfp 1310nm 10km thumbnail-2
Sfp Transceiver 1000base-lx Sfp 1310nm 10km thumbnail-3
Sfp Transceiver 1000base-lx Sfp 1310nm 10km thumbnail-4
Sfp Transceiver 1000base-lx Sfp 1310nm 10km thumbnail-5

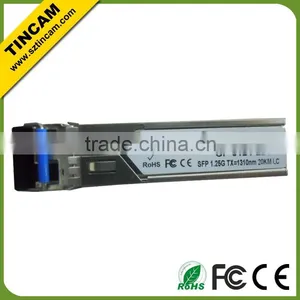

Sfp Transceiver 1000base-lx Sfp 1310nm 10km thumbnail-6
Sfp Transceiver 1000base-lx Sfp 1310nm 10km photo-1

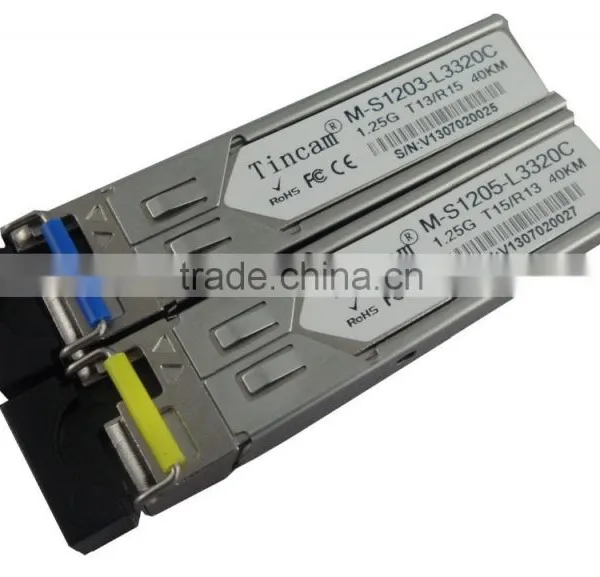

Sfp Transceiver 1000base-lx Sfp 1310nm 10km photo-2

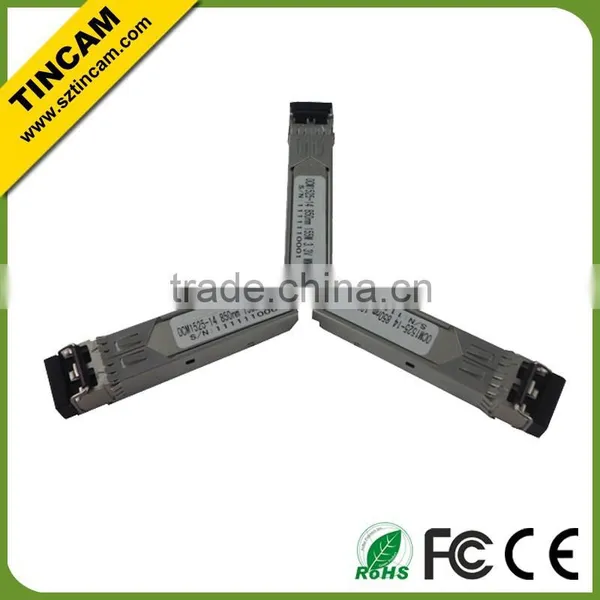

Sfp Transceiver 1000base-lx Sfp 1310nm 10km photo-3

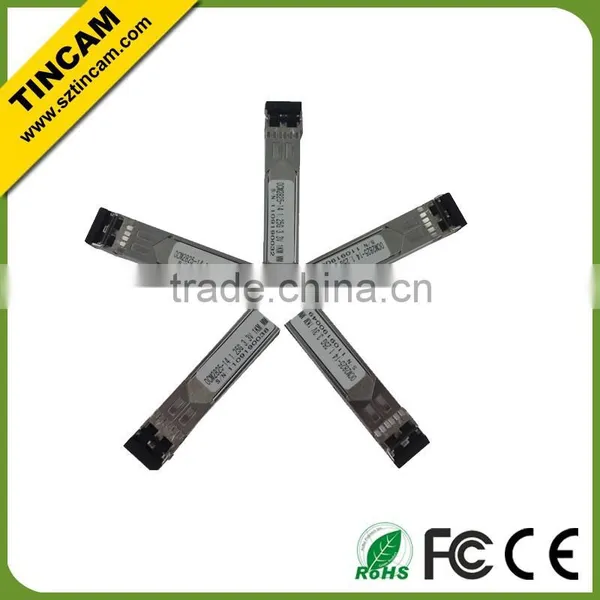

Sfp Transceiver 1000base-lx Sfp 1310nm 10km photo-4

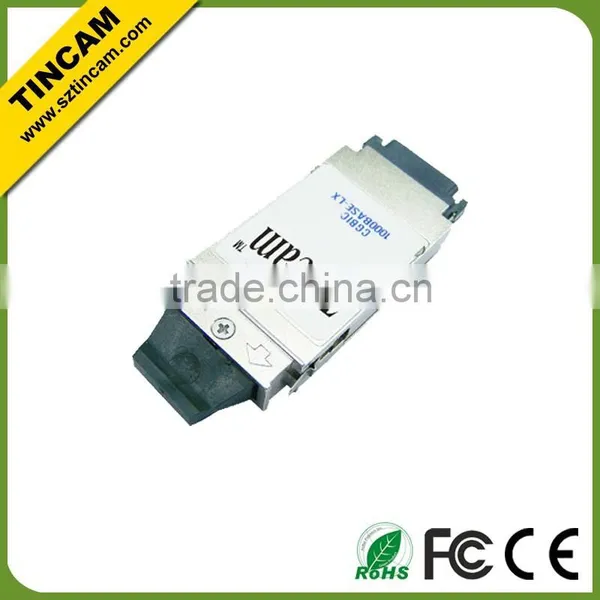

Sfp Transceiver 1000base-lx Sfp 1310nm 10km photo-5

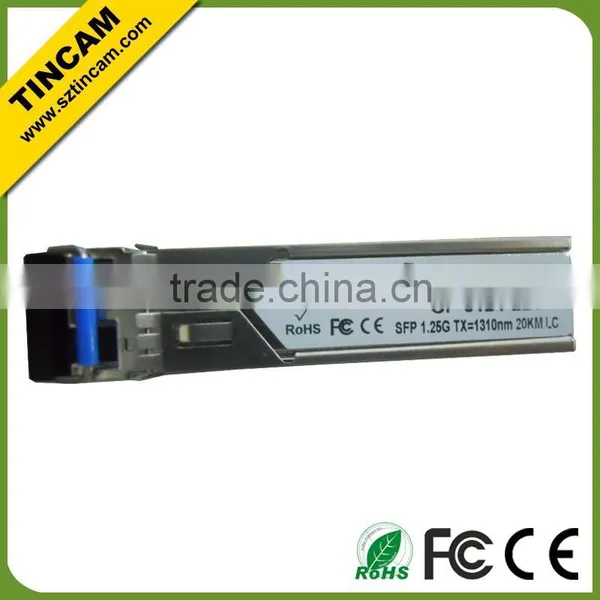

Sfp Transceiver 1000base-lx Sfp 1310nm 10km photo-6
US$ 10 - 100 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TINCAM
Model Number:
OCM2825-14
Contact Supplier Request Quote Chat Now
Shenzhen Tianbo Communication Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name TINCAM
Model Number OCM2825-14

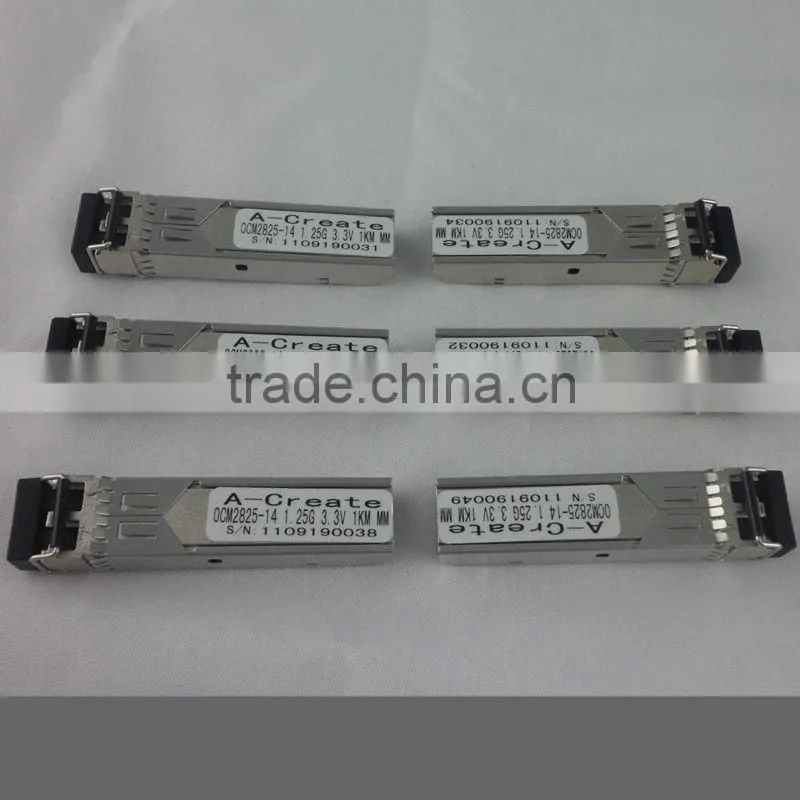

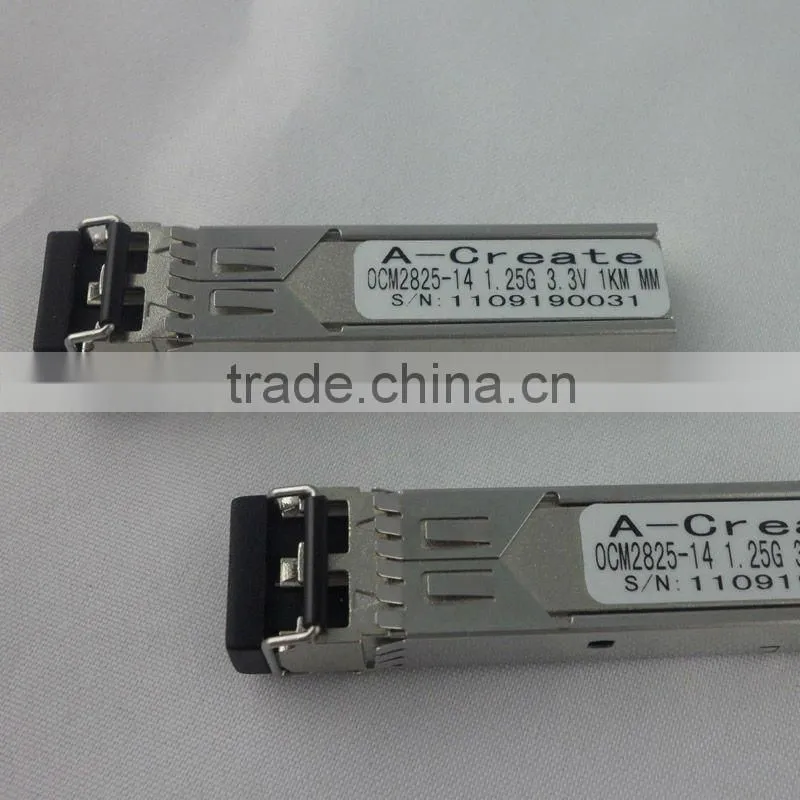

sfp transceiver 1000base-lx sfp 1310nm 10km





   Passive module SFP,SFP transceiver product specification is complete, including 850nm, 1310nm, 1550nm three wavelengths. All products have been rigorously tested, fully meet the IEEE 802.3z and GBIC-rev-5.5 standard, the performance indexes have reached or exceeded standards. Product rate from 155M to 4.25G, with the world’s major manufacturers 100, Gigabit-compatible switches.



Applications:



 ATM
 SONET / SDH
 Gigabit Ethernet
 Switches and routers
 HUBS
 Fiber Channel



Features:


 Comply with SFP MSA and SFF-8472 standard
 Hot-pluggable
 Digital diagnostic monitoring function optional
 Metal casing to ensure low electromagnetic interference EMI
 3.3V single power supply LVPECL signal levels, alarm level for the LVTTL
 Operating wavelength 850nm, 1310 nm, 1550nm
 Dual LC optical interface
 Class1/1M standardized products
 Comply with Telcordia (Bellcore) GR-468-CORE reliability requirements



Product List:



Part Number

Data Rate

Distance

LD

Output Power

Sensitivity

Fiber
TBCSFP-03-SR311MX 155Mb/s 2km 1310nm FP -15~-8dBm ≤-30dBm MM
TBCSFP-03-02311SX 155Mb/s 20km 1310nm FP -15~-8dBm ≤-28dBm SM
TBCSFP-03-04311SX 155Mb/s 40km 1310nm FP -5~0dBm ≤-34dBm SM
TBCSFP-03-08521SX 155Mb/s 80km 1550nm DFB -5~0dBm ≤-34dBm SM
TBCSFP-12-02311SX 622Mb/s 20km 1310nm FP -15~-8dBm ≤-28dBm SM
TBCSFP-12-04311SX 622Mb/s 40km 1310nm FP -3~+2dBm ≤-28dBm SM
TBCSFP-12-08521SX 622Mb/s 80km 1550nm DFB -3~+2dBm ≤-28dBm SM
TBCSFP-24-US831MX 1.25Gb/s 550m 850nm VCSEL -9.5~-4dBm ≤-17dBm MM
TBCSFP-24-IR311SX 1.25Gb/s 15km 1310nm FP -9~-3dBm ≤-22dBm SM
TBCSFP-24-04321SX 1.25Gb/s 40km 1310nm DFB -2~+3dBm ≤-23dBm SM
TBCSFP-24-07521SX 1.25Gb/s 70km 1550nm DFB 0~+5dBm ≤-23dBm SM
TBCSFP-24-10551SX 1.25Gb/s 100km 1550nm DFB 0~+5dBm ≤-27dBm SM
TBCSFP-48-SR311SX 2.5Gb/s 2km 1310nm FP -10~-3dBm ≤-18dBm SM
TBCSFP-48-IR321SX 2.5Gb/s 15km 1310nm DFB -5~0dBm ≤-18dBm SM
TBCSFP-48-04521SX 2.5Gb/s 40km 1550nm DFB -2~+3dBm ≤-18dBm SM
TBCSFP-48-08551SX 2.5Gb/s 80km 1550nm DFB -2~+3dBm ≤-28dBm SM



Order Information:
TBCSFP - ♦♦ - ♦♦ ♦♦♦♦♦
                 A        B   C D E F G

ID Parameter Contents
A Data Rate 03=155Mb/s 12=622 Mb/s 24=1.25Gb/s 48=2.5Gb/s
B Distance SR=2km IR=15km 04=40km 08=80km
C Centre Wavelength 3=1310nm 5=1550nm 8=850nm
D Tx/Rx 1=FP/PIN 2=DFB/PIN 3=VCSEL/PIN 5=DFB/APD
E Operating Temperature 1 = 0~70°C 2=-40~85°C 3=Others
F Fiber Type S=SM M=MM
G DDM 1=with DDM 2=without DDM
