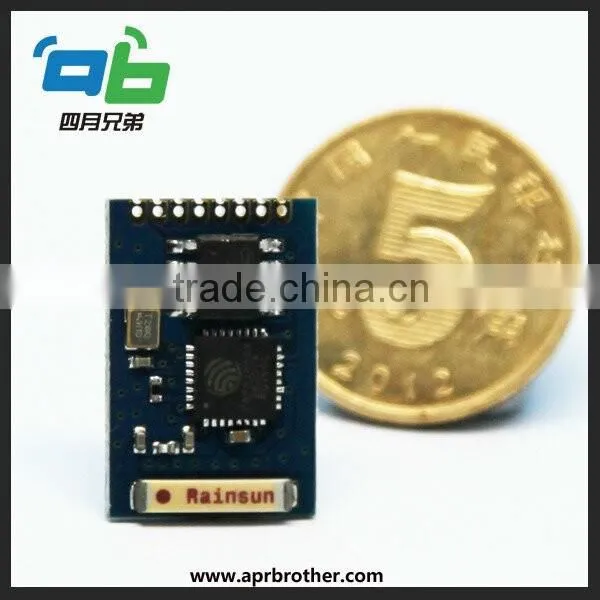

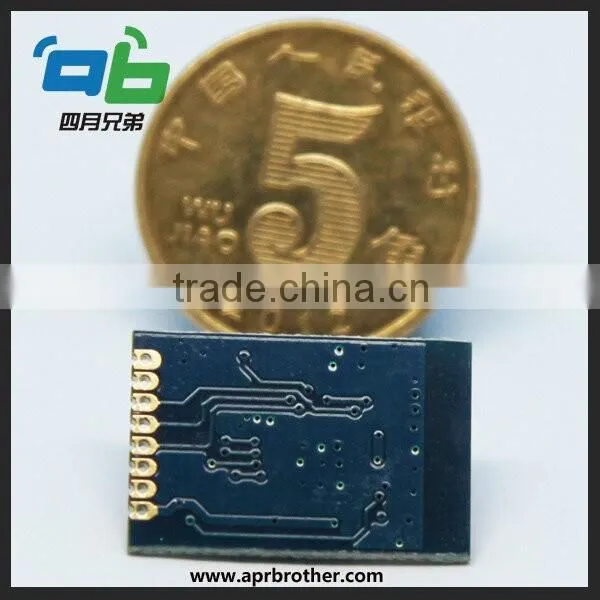

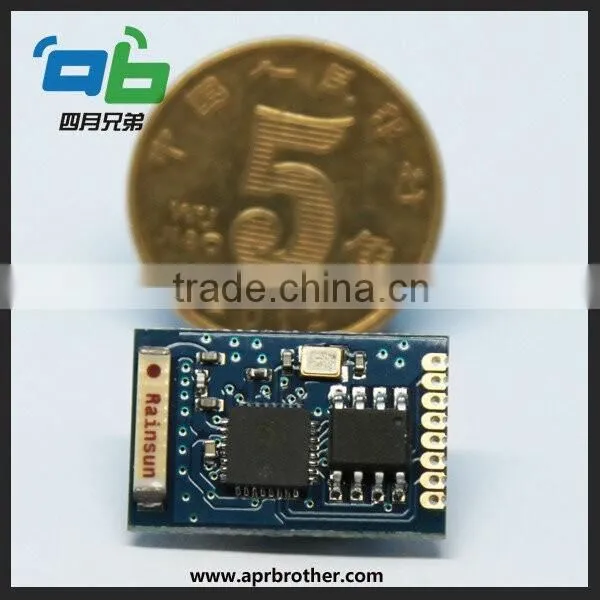

ESP8266 ESP-11 1x Simple Serial WIFI/Arrive 1-10 Biz Days
Want absolutely smallest ESP8266 module for your projects?We have 10x10mm ESP8266 module in stock. Please contact us for detail.
Need antenna? Just use 3cm wire will do the trick.Also, we will have antenna soon.
With just simple soldering work, you can get 1
low cost Serial WiFi module to connect any of your projects to the world of Internet for only $2.95 (USD) and it will arrive in 1-10 business days for almost all US addresses. Simple to use with simple half hole and simple 3 wires serial communication at 9600/8/N/1 at TTL level.
The following are the major features:
1. Support 802.11 B/G/N
2. Communication range up to 100 yards depending on environment.
3. Standard 3.3VDC operation with 5V compatible I/O.
4. Standard 3 wire (TXD/RXD/GND) serial communication (idle high) at 9600/8/N/1.
5. Standard 0.1" (2.54mm) half through hole.
6. Upgradeable firmware.
7. Three mode of operations: Client/Access Point/Both Client and Access Point.
8. Support all major security schemes: OPEN/WEP/WPA_PSK/WPA2_PSK/WPA_WPA2_PSK.
9. Support both TCP and UDP communication.
10. Working as TCP/UPD server supports up to five (5) connections.
11. Working as station can connect up to 5 TCP/UPD servers. The ESP-02 can connect to all standard non-SSL websites in the world.
12. Simple AT commands for all operations.
13. Connection based data reception or transparent data reception.
14. Programmable client connection inactivity timeout.
15. Automatic domain name address resolution for public domain name but not the local name within the local area network (router).
16. Detailed English user manual in PDF format upon request via email.
The following is the list of AT commands:
1. AT-Attention
2. AT+RST-Soft reset
3. AT+GMR-Retrieve firmware version
4. AT+CWMODE-Operation mode selection
5. AT+CWJAP-Join network
6. AT+CWLAP-Available network listing
7. AT+CWQAP-Exit network
8. AT+ CWSAP-Setup network name, password, radio channel and security scheme
9. AT+ CWLIF-Listing connected stations
10. AT+ CIPSTATUS-Connection listing
11. AT+CIPSTART-Initiating connection
12. AT+CIPSEND-Sending data
13. AT+CIPCLOSE-Closing connection
14. AT+CIFSR-Displaying IP from access point
15. AT+CIPMUX-Single or multiple connection selection
16. AT+CIPSERVER-Socket server on/off
17. AT+CIPMODE-Serial port transparent or connecdtion based data output selection
18. AT+CIPSTO-Socket server automatic connection timeout setting
19. +IPD-Serial port connection based data output
20. AT+CIOBAUD only available with firmware .923 or newer. Also .923 firmware default baudrate is 9600. firware .91 and .92 default baud rate is 57600 and 115200 respectively.
CH_PD, RST, GPIO0 and GPIO2 will be used for firmware update and future expansion purposes.
For the time being, they must be pulled up to have the serial module ESP-02 running normally.
The ESP-02 is a serial device at TTL level not RS232 level. If you need to connect the ESP-02 to a RS232 serial port, you will need have a RS232 level converter with MAX232 or compatible device.
Should you have different requirements for serial WiFi, we will be
glad to design your custom Serial WiFi module using the same low
cost and reliable technology to meet your needs for a low minimum
order quantity requirement. Please feel free to contact us for details.
Item included as follow:
1. 1x ESP-11 Serial WiFi module
2. Detail English User Manual in PDF format upon request (via email)
Company Information:
April Brother is the earliest leading company that are engaged in the iBeacon for production and keep the best selling inbound, providing access to knowledge to every user.
April Brother are full of determination , ability and are responsible to popularize the iBeacon technology to the wordwide,contributing much more relaxed and comfortable life for you.
Our Service:
1,Customize the case with your logo & customize the firmware of iBeacon
2,Pre-configure the value of parameter before the shipment.
3,Package case can be customized if required.
4,APP & SDK for IOS&Android4.3 provided.
5,We have professional team provide any consultation or advice needed.
6,SDK is available to help customers build their own APP or use our APP.
Waranty:
1. All products and accessories have been tested by 3 times before ship out.
2. All products have 1 year warranty, If there is no man-made problem, we will do our technology service freely.
3. We own the best after-sale service, if any problems happen, Our team will do our best to solve for customer.
Order from us and join our R&D bbs now !
Contact:lily chen
Skype:lily.chen4208
