HP2804L DVR Recorder

HP2804L DVR Recorder thumbnail-1
HP2804L DVR Recorder photo-1
US$ 60 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
COOP camera dvr
Model Number:
HP2804L DVR recorder
Contact Supplier Request Quote Chat Now
Coop Security Technology(Quanzhou)Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name COOP camera dvr
Model Number HP2804L DVR recorder
Type Digital Camera
Style Mini Camera
Sensor CCD
Technology NetWork
Special Features Waterproof / Weatherproof

Specifications

15 LCD 4CH all in one Standalone DVR

  HP2804L Standalone DVR ,DVR recorder



Features:

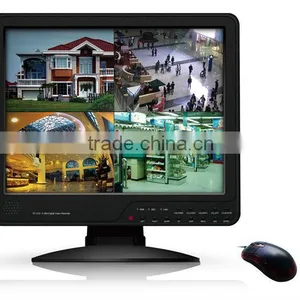

1.15”LCD all-in-one Standalone DVR



2. Adopts the standard main profile H.264 compression technology,



  D1 and CIF can be adjusted supports 4ch recording, Network transmission, and playback simultaneously



3. Support dual-stream transmission for all channels



4. Support Multiplex operation: live, record, playback, backup, network transmission, mobile phone surveillance



5. Support backup with USB Flash Disk, Movable hard disk, USB writer, Network



6. Support 1channel. Main output, 1channel. VGA output



7. Support video channel hidden and S.E.Q for single channel



8. Support Digital Zoom and PIP preview



9. Support password function to avoid data modification



10. Support Email alarm



11. Mobile phone surveillance (Win CE/Symbian / iPhone/Blackberry)



12. Support PTZ preset and Cruise Control



13. Support Multi-language OSD



14. Central management software and Networked system management



15. Support mouse, remote controller, panel operating









 Product Specifications

Main Function

HP2804L

Operating system

Embedded Linux OS

Video Compression Format

Main Profile H.264

Video Input

4 Channels BNC

Video Output

1 Channel BNC ,1 Channel VGA(1280*1024)

Audio Input/Output

4 Channel RCA Input,1 Channel RCA Output

Display Picture

1/4CH

Digital Zoom,PIP

Supports

Multiplex Operation

LivedisplayPlaybackRecordingBackup

Mobile phone Surveillance Network simultaneously

Display Resolution

PAL:D1(704*576),NTSC:D1(704*480)

Recording Mode

ManualTimerMotion DetectionAlarm

Recording Frame Rate

PAL:D1@100fps,HD1@100fps,CIF@100fps

NTSC:D1@120fps,HD1@120fps,CIF@120fps

Recording Resolution

PAL:D1(704*576),HD1(704*288),CIF(352*288)

NTSC:D1(704*480),HD1(704*240),CIF(352*240)

Recording Playback

1/4 channel playback simultaneously(Optional playback channel)

Recording Backup

USB,Moved Hard Disk,USB Writer,Network

Network transmission

4Channels real-time Network transmission with CIF resolution

Recording Play

Special player, Support AVI file format conversion

JPEG capture function

support,3M Pixels@10fps

Alarm input/output

4 channels input,1 channel output

Email Alarm

Send picture to the designated email

PTZ

Supports PTZ preset ,Cruise Control and PC client port setup

PTZ protocol

PELCO-D,PELCO-P

HDD

Support 1 SATA HDD, capacity to 2T

HDD Remain Time Hint

Support

Network and Protocol

1 RJ-45 10/100M via Ethernet, Support TCP/IP,PPPOE,DHCP,DNS,DDNS,NTP,UPNP

IE Browser

Windows XP/Vista/Win 7/Mac OS,IE 6.0-9.0/Firefox/Chrome/Opera/Apple Safari

Client Software

Support

CMS

Support(One software for at most 100 DVRs ),Free supply to use

Dual Stream

Support(Main and secondary interchange)

Group play

At least Support five users online access

Privacy Mask

Support

S.E.Q

Support single channel and grouping S.E.Q

Watermark

Support

Multi-language

Support

Mobile Phone Surveillance

Support Windows Symbian iPhoneBlackberry Operation System

SDK Package

Available

Mouse Interface

USB2.0

Backup interface

USB2.0

Remote Controller

Support(Supports controller ID matching)

User Authority

Support Multi-level user authority distribution

DST

Support

Power

DC12V/5A

Working Temperature

0°C-50°C

Working Humidity

10%-90%

LCD Size

15inch  4:3  CCFL  XGA
