Welcome to QingDao TongHai Industrial Equipment Ltd. We were established in 2000 year, belong to Italy Heating Group wholly-owned boilers manufacturer. As the Europe manufactory, we intoduce boiler schemes, production line, inspection, services all from our Italy Headquarters. Following EU services, we provide the boiler 3 years warranty for clients. No only in China and Asia area, we are also responsible for supplying products to othr parts of the world. We are located in QingDao, Hi-Tech industrial park, investment thirty million dollars, and occupy one hundred thousand square meters. Our company is about 30 minutes' drive from QingDao airport, and you are most welcome to visit us when you are in China.
Certificates:
DZL series Coal fired steam boiler
1.The boiler shall employ single return screwed pipe,arched tube plate,and aerofoil flue,which shall make quasi-steel resistance of the shell to change into quasi-steel,avoiding tube plate crack due to high temp.
2.The rational design of cycle scrap,shall prevent the bottom of the shell from being heated & swelling.Water circulation reliabilities shall be improved by installing supply water injectors,avoiding the ash deposition of water-wall tube.So the reliablie combusion equipment shall ensure the normal operation of the boiler.
3.The optimization of boiler type shall decrease the size of boiler body,reducing the cost of boiler house 30%.
4.Because of excellent combustion efficiency,automatic coal supply,automatic slag-removal,the labor intensity of the stoker shall be reduced.
Boiler Package:

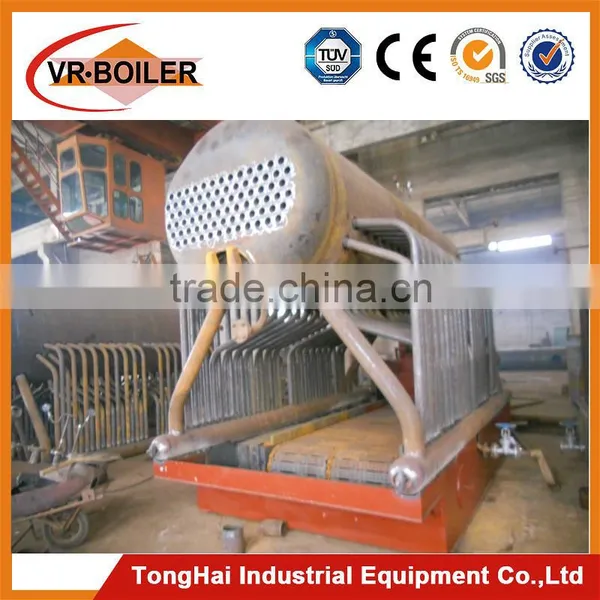

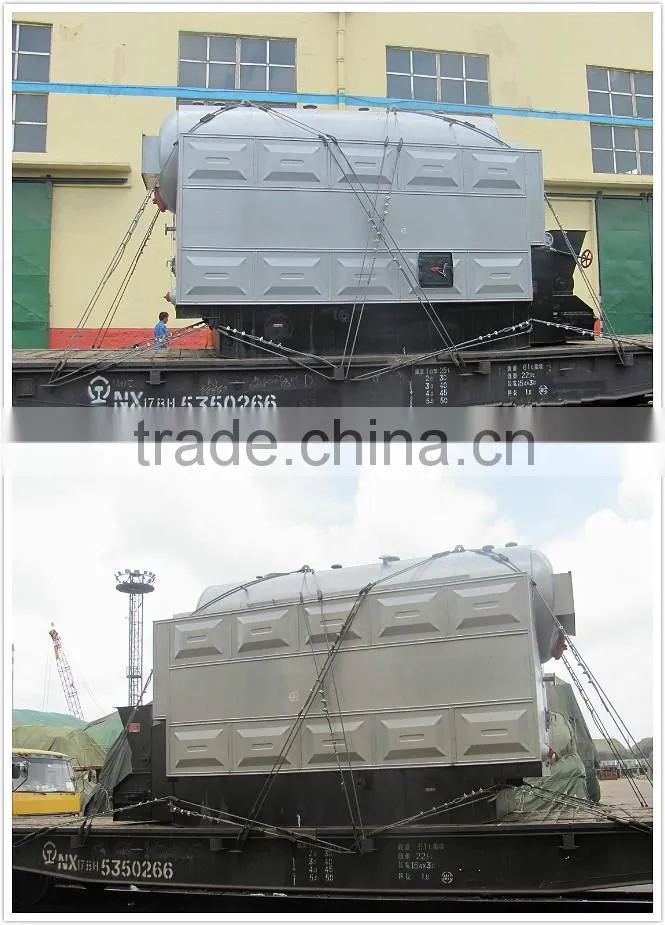

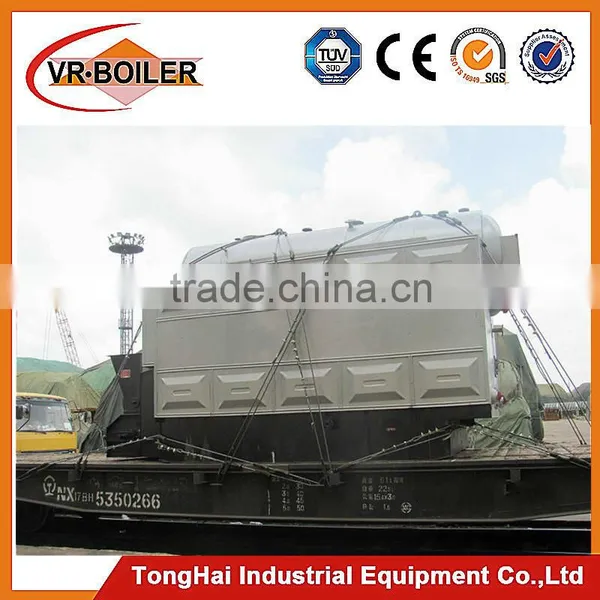

Boiler Body
Technical specifications:
|
Item parameter Model |
DZG 0.5-0.7-AII |
DZL(W) 1-0.7-AII |
DZL(W) 2-0.7/1.25-AII |
DZL(W)4-1.25/1.6-AII |
DZL(W) 6-1.25-AII |
DZL(W)8-1.25-AII |
DZL(W) 10-1.25-AII |
DZL(W)20-1.25-AII |
|||
Rated evaporation capacity |
t/h |
0.5 |
1 |
2 |
4 |
6 |
8 |
10 |
20 |
||
Operation pressure |
Mpa |
0.7 |
0.7 |
0.7/1.25 |
1.25/1.6 |
1.25 |
1.25 |
1.25 |
1.25 |
||
Steam temperature |
℃ |
169.6 |
169.6 |
169.6/194 |
194/203 |
194 |
194 |
194 |
194 |
||
Water-inlet temperature |
℃ |
20 |
20 |
20 |
20/60 |
20 |
20 |
105 |
105 |
||
Boiler heating efficiency |
% |
71.76 |
74.41 |
77 |
81 |
81.5 |
82 |
82.75 |
82.75 |
||
Area of stoker |
m2 |
1.26/0.88 |
1.74 |
3.04 |
5.14 |
7.4 |
11.4 |
11.4 |
20.8 |
||
Primary steam valve drifted diameter |
mm |
PN1.6DN50 |
PN1.6DN65 |
PN1.6DN80 |
PN1.6/2.5DN100 |
PN1.6DN125 |
PN1.6DN150 |
PN1.6DN150 |
PN1.6DN200 |
||
Water inflow valve drifted diameter |
mm |
PN1.6DN40 |
PN1.6DN40 |
PN1.6DN40 |
PN1.6/2.5DN50 |
PN1.6DN50 |
PN1.6DN65 |
PN1.6DN50 |
PN1.6DN65 |
||
Fuel |
Coal available |
II type bitumite |
|||||||||
Consumption |
kg/h |
75 |
145 |
290 |
580 |
960 |
1220 |
1490 |
2700 |
||
Dimensions of biggest parts for shipment (L x W x H) |
m |
2.8*2*2.7 |
4.53*1.9*3.07 |
5.82*2.1*3.22 |
6.5*2.66*3.52 |
7.7*3*3.54 |
7.1*3.2*3.5 |
8.2*3.3*3.6 |
9.45*3.77*7.1 |
||

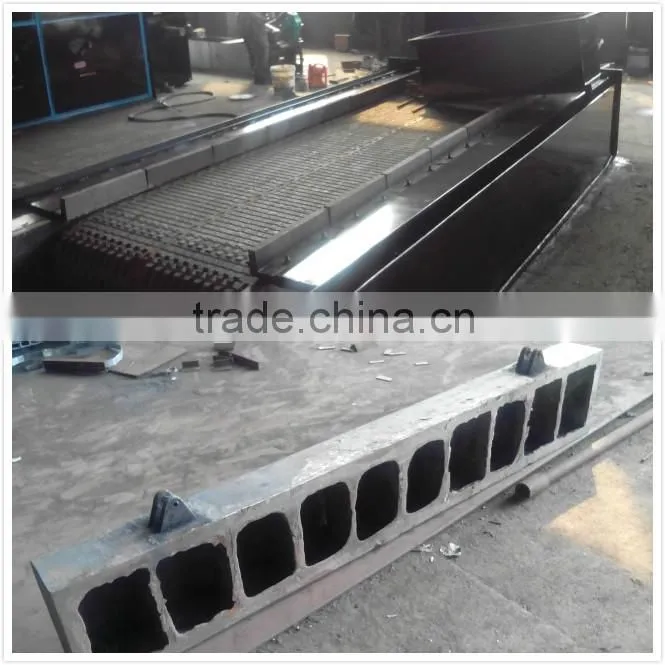

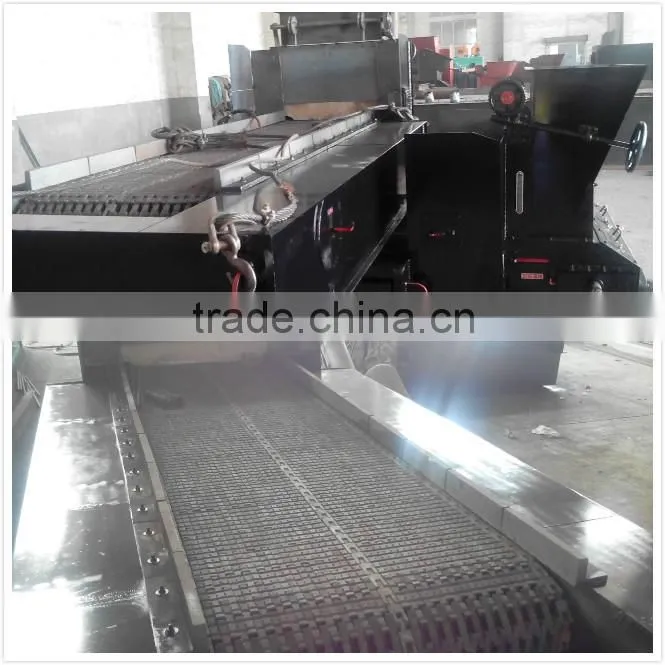

Chain grate stoker photos:

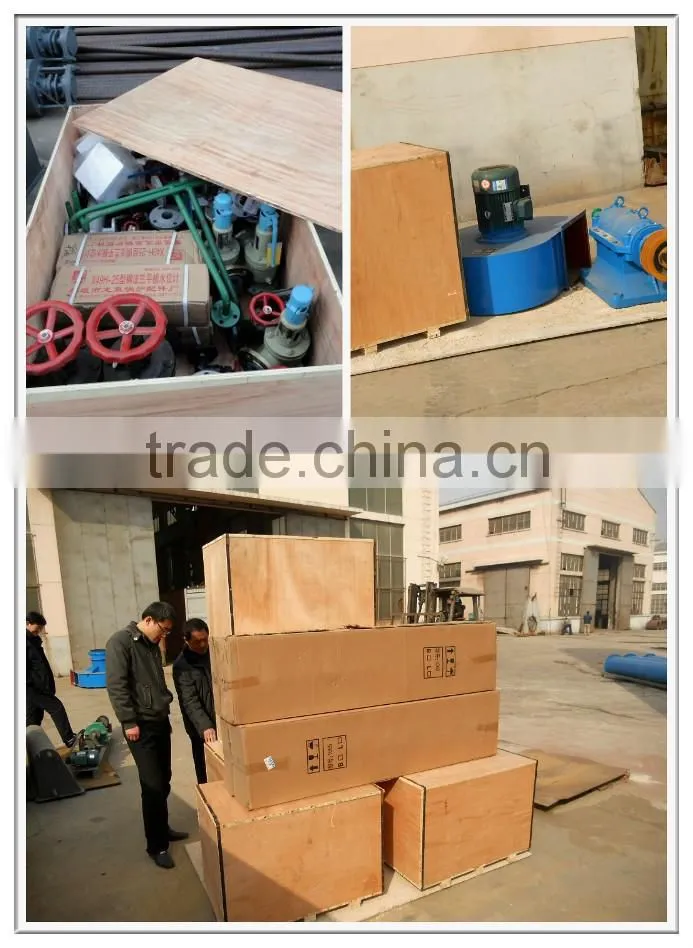

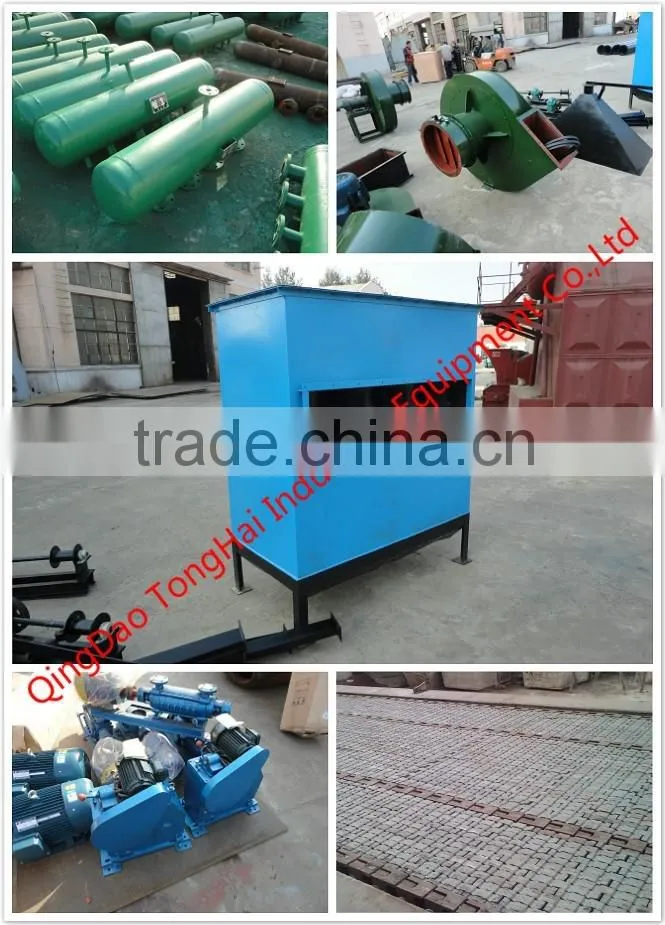

Auxiliary equipments:
We can help design and manufacture boilers according to customers’ special requirements.
Engineers are available service overseas
Bboiler body warranty 2 years
Engineers 24hours online
How much steam capacity do you want ?
Answer:0.5Ton/hr to 100Ton/hr
How much working pressure it the boiler ?
Answer: 4bar ~ 75bar
What kind of fuel do you prefer ?
Answer: Coal, wood etc
And, what are the electric conditions in your market ? Voltage, HZ etc
Answer: 380V, 50HZ, 3Phase
