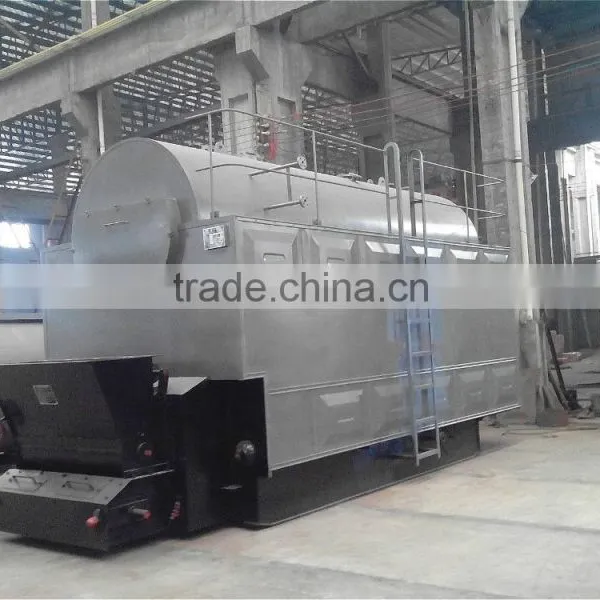

DZL coal fired steam boiler

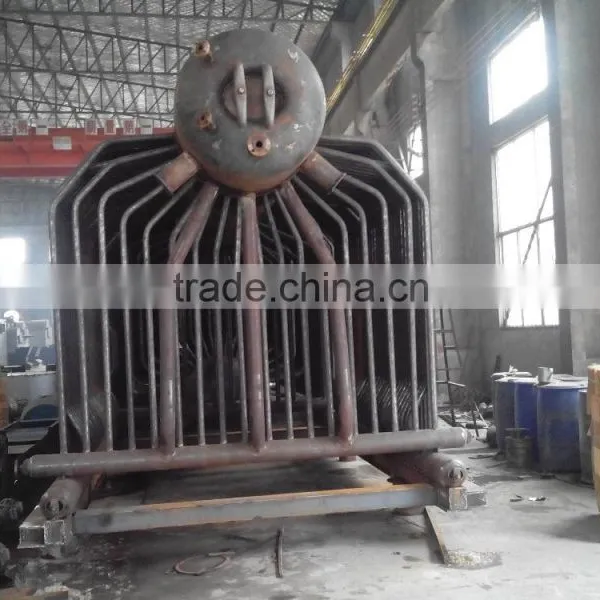

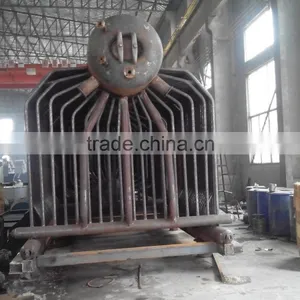

1. The structure DZL boiler horizontal fast-assembling fire tube boilers and natural circulation.
2. Advanced design: The main heating tube of the boiler uses 20# low and medium pressure boiler seamless pipe and the boiler drum uses the special steel.
3. The front arch of the boiler use refractory brick. The back arch is low and long, so it has good combustion. Both blank flue and side wall use refractory bricks. Front wall and back wall of the boiler use common refractory bricks.
4. Reasonable air distribution in the grate, large combustion chamber, widely types of coal. The DZL boiler could use bituminous, anthracite or mixed coal. Because of high temperature flue gas enters the settling chamber firstly, and then from both sides of the flue into the wings, front smoke box, so it has good dust abatement.
Model/Parameter/Item |
DZL 2-0.7-AII |
DZL 2-1.25-AII |
DZL 4-1.25-AII |
DZL 4-1.6-AII |
DZL 6-1.25-AII |
||
Rated capacity |
t/h |
2 |
2 |
4 |
4 |
6 |
|
Operation pressure |
Mpa |
0.7 |
1.25 |
1.25 |
1.6 |
1.25 |
|
Steam temperature |
C |
169.6 |
194 |
194 |
203 |
194 |
|
Water-inlet temperature |
C |
20 |
20 |
20 |
60 |
20 |
|
Heating efficiency |
% |
77.4 |
77.4 |
81 |
81 |
77.4 |
|
Area of stoker |
m2 |
3.04 |
3.2 |
5.4 |
5.4 |
7.48 |
|
Steam valve diameter |
mm |
PN1.6 DN80 |
PN1.6 DN80 |
PN1.6 DN100 |
PN2.5 DN100 |
PN1.6 DN125 |
|
|
Water inflow valve diameter |
mm |
PN1.6 DN40 |
PN1.6 DN40 |
PN1.6 DN50 |
PN2.5 DN50 |
PN1.6 DN50 |
|
Fuel |
Coal available |
|
II type bitumite,lcv:17700-21000KJ/kg |
||||
Consumption |
kg/h |
290 |
290 |
580 |
580 |
960 |
|
|
Dimension of biggest parts for shipment (LxWxH) |
m |
5.82*2.1*3.22 |
5.82*2.1*3.22 |
6.5*2.66*3.52 |
6.5*2.66*3.52 |
7.1*3*3.65 |
|
Horizontal automatic coal fired steam boiler main purpose is to provide high quality steam and motive power for industrial production, such as textile, papermaking, rubber, food, hospital and other industries.
Compared with the other domestic capacity products ,we have the advantages of reasonable and compact structure and low steel consumption.

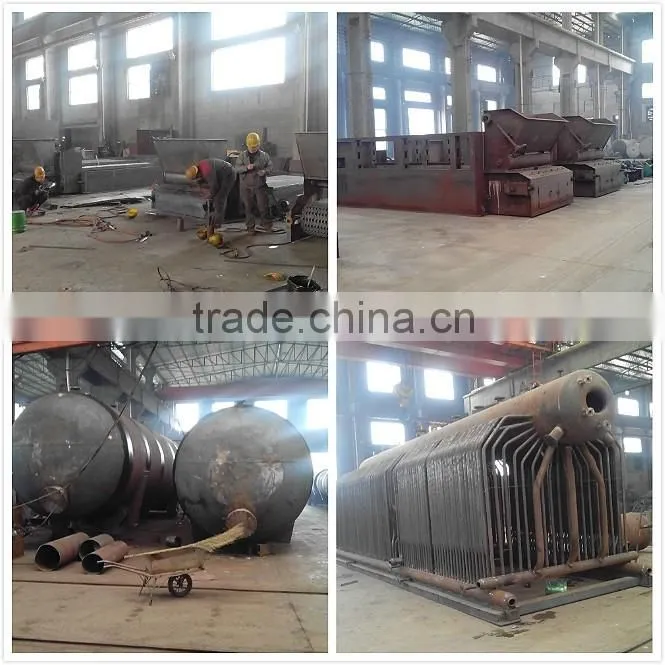

working shop

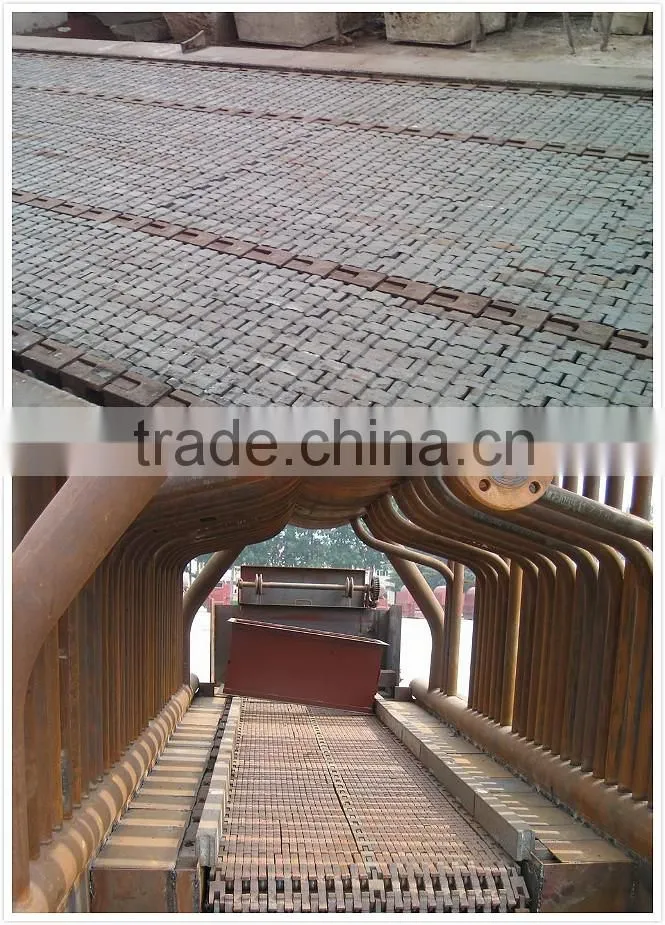

chain grate
------We can help design and manufacture boilers according to customers’ special requirements.
------Engineers are available service overseas
------boiler body warranty 2 years
------Engineers 24hours online
--- How much capacity do you want ?
--- How much working pressure it the boiler ?
--- And, what are the electric conditions in your market ? Voltage, HZ etc
