2 ton steam boiler:
1.single drum.
2.monolayer arrangement.
pact structure, sufficient output.
4. operational safety, short construction period, and low installation cost .
5,saving energy.
6,environmental protection.
1,The DZL series quickly installed steam boiler is the most advanced water-fire tube boiler in Chinese market, with high efficiency, small in size and long working life for 20 years.
2,The boiler after improvement takes use of structure of wing type smoke duct, one-way screwed smoke tube, arched tube plate, smoke and gas separation room and several other advanced technolog, which has increased the water circulation speed and safety factor.
3,This boiler series is well designed, compact structure, quickly installed, monolayer arrangement, so that the civil engineering and investment could be saved. These improvement ha extend boiler's working life and make it the national energy saving product.
Technical specifications:
|
Item parameter Model |
DZG 0.5-0.7-AII |
DZL(W) 1-0.7-AII |
DZL(W) 2-0.7/1.25-AII |
DZL(W)4-1.25/1.6-AII |
DZL(W) 6-1.25-AII |
DZL(W)8-1.25-AII |
DZL(W) 10-1.25-AII |
DZL(W)20-1.25-AII |
|||
Rated evaporation capacity |
t/h |
0.5 |
1 |
2 |
4 |
6 |
8 |
10 |
20 |
||
Operation pressure |
Mpa |
0.7 |
0.7 |
0.7/1.25 |
1.25/1.6 |
1.25 |
1.25 |
1.25 |
1.25 |
||
Steam temperature |
℃ |
169.6 |
169.6 |
169.6/194 |
194/203 |
194 |
194 |
194 |
194 |
||
Water-inlet temperature |
℃ |
20 |
20 |
20 |
20/60 |
20 |
20 |
105 |
105 |
||
Boiler heating efficiency |
% |
71.76 |
74.41 |
77 |
81 |
81.5 |
82 |
82.75 |
82.75 |
||
Area of stoker |
m2 |
1.26/0.88 |
1.74 |
3.04 |
5.14 |
7.4 |
11.4 |
11.4 |
20.8 |
||
Primary steam valve drifted diameter |
mm |
PN1.6DN50 |
PN1.6DN65 |
PN1.6DN80 |
PN1.6/2.5DN100 |
PN1.6DN125 |
PN1.6DN150 |
PN1.6DN150 |
PN1.6DN200 |
||
Water inflow valve drifted diameter |
mm |
PN1.6DN40 |
PN1.6DN40 |
PN1.6DN40 |
PN1.6/2.5DN50 |
PN1.6DN50 |
PN1.6DN65 |
PN1.6DN50 |
PN1.6DN65 |
||
Fuel |
Coal available |
|
II type bitumite |
||||||||
Consumption |
kg/h |
75 |
145 |
290 |
580 |
960 |
1220 |
1490 |
2700 |
||
Dimensions of biggest parts for shipment (L x W x H) |
m |
2.8*2*2.7 |
4.53*1.9*3.07 |
5.82*2.1*3.22 |
6.5*2.66*3.52 |
7.7*3*3.54 |
7.1*3.2*3.5 |
8.2*3.3*3.6 |
9.45*3.77*7.1 |
||
Weight of biggest parts for shipment |
t |
8.5 |
16.7 |
18/19 |
27/29 |
32 |
42 |
40 |
30 |
||
Overall dimensions of boiler assembled (L x W x H) |
m |
2.8*3.1*3.5 |
5.3*2.2*3.3 |
6.5*4.0*3.7 |
7.2*4.5*4.0 |
7.9**4.5*4.1 |
7.9*6*6.5 |
11.6*4.4*6.4 |
10.7*5.51*8.68 |
||
Water supply pump |
model |
|
1W2.4-10.5 |
1W2.4-10.5 |
1 1/2GC-5*4/6 |
1 1/2GC-5*7 |
1 1/2GC-5*7 |
2GC-5*6 |
2 1/2GC 6*6 |
65DG50*4 |
|
Motor power |
kw |
3 |
3 |
5.5/7.5 |
7.5/11 |
15 |
15 |
22 |
22 |
||

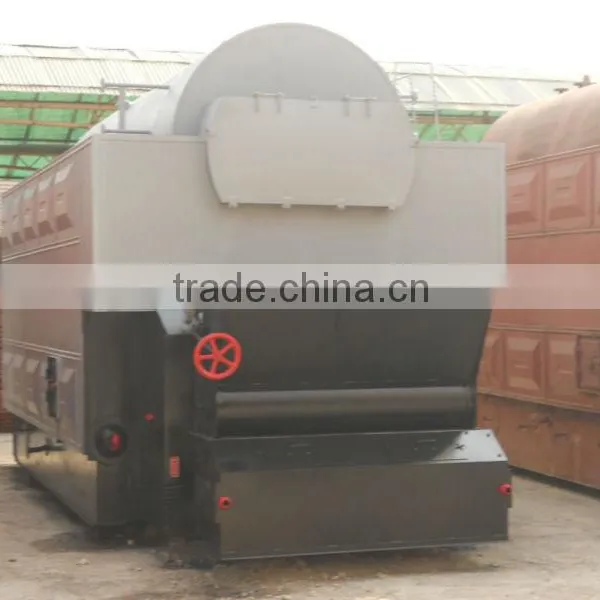

boiler body:

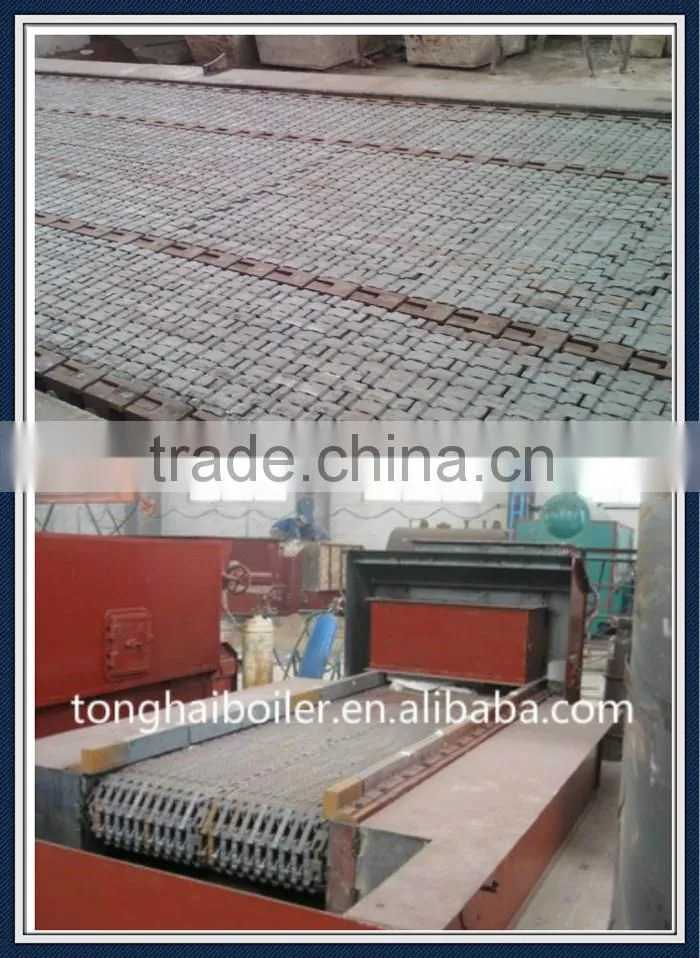

Chain grate:
Auxiliaries boiler:
packaging & shipping:
parts package:
our services:
------We can help design and manufacture boilers according to customers’ special requirements.
------Engineers are available service overseas
------Ferroli boiler body warranty 3 years
------Engineers 24hours online
